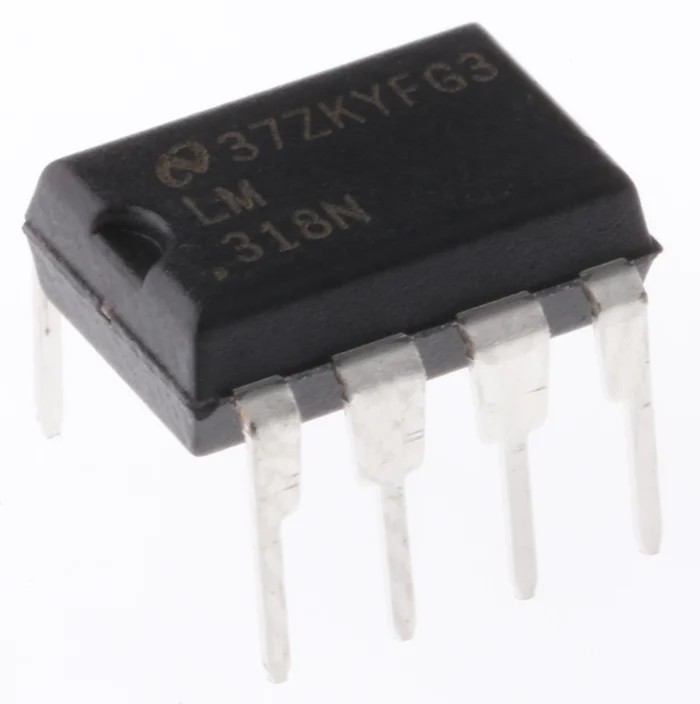

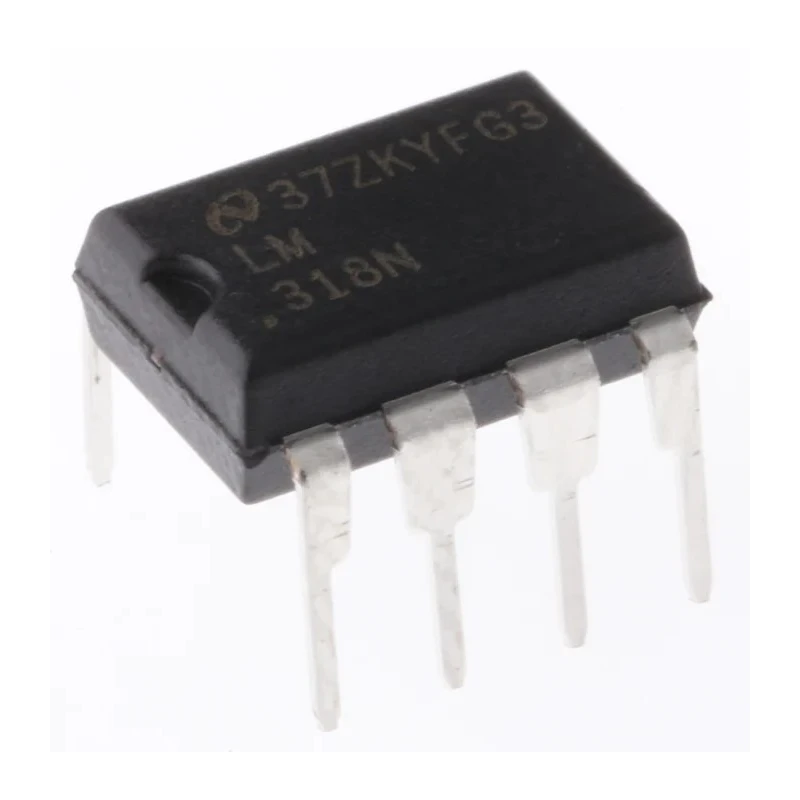

Texas Instruments Operational Amplifier 8-Pin 20V MDIP LM318N/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 3.3mm |
| Length | 9.27mm |
| Model | LM318N/NOPB |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | LM318-N |
| Maximum Operating Temperature | 70°C |
| Package Type | MDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 20V |
| Minimum Supply Voltage | -20V |
| Input Bias Current | 500 nA |
| Vos - Input Offset Voltage | 10 mV |
| Slew Rate | 70V/μs |
| Input Offset Current | 200 nA |
Key Features
- This operational amplifier supports a single channel configuration.
- It is mounted through-hole for ease of soldering and prototyping.
- Input offset voltage is 10 mV, suitable for general purpose amplification.
- Input bias current is 500 nA with an offset current of 200 nA, ensuring low signal distortion.
- Slew rate of 70 V/μs provides fast response time in signal processing applications.
- The operating temperature range is between 0°C and 70°C, suitable for typical industrial environments.
- Package dimensions include length 9.27 mm, width 6.35 mm, and height 3.3 mm.
- Comes from the LM318-N series, providing reliability and standard performance levels.
Product Description
Texas Instruments LM318N/NOPB Operational Amplifier is a versatile, general-purpose device in an 8-pin MDIP through-hole package, rated for ±20V supply voltage.
This operational amplifier features a single channel design and is optimized for applications requiring fast slew rate and low offset voltage. The input offset voltage is rated at 10 mV, and the input bias current is 500 nA with an offset current of 200 nA, providing stable signal amplification with minimal distortion.
Operating over a temperature range of 0°C to 70°C, this device is suitable for standard industrial and laboratory electronic circuits. Its fast slew rate of 70 V/μs allows rapid change response, ideal for high-speed signal processing tasks.
The LM318N/NOPB belongs to the LM318-N series and is widely used in a variety of analog systems due to its reliable performance. The through-hole mount type ensures easy insertion and soldering in prototype and production PCBs.
The compact package measures 9.27 mm in length, 6.35 mm in width, and 3.3 mm in height, facilitating integration into diverse circuit designs. Though it has no specified automotive approval standards, it is a preferred choice for general-purpose electronics in educational, laboratory, and industrial equipment.
This operational amplifier is a high-performance general-purpose device. Input offset voltage and bias currents ensure accurate amplification. Excellent slew rate enables fast signal response. Robust package and mounting style suitable for through-hole applications.
Reliable performance over standard industrial temperature ranges.
This product is suitable for industrial machines, laboratory instruments, electronic circuits, and measuring and testing instruments. Explore more Operational Amplifiers and related electronics components in our extensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input offset voltage is rated at 10 mV, which is suitable for general purpose amplification.
The maximum supply voltage for the LM318N/NOPB is ±20V.
The slew rate is 70 V/μs, allowing for fast response times in signal processing applications.
The package dimensions are 9.27 mm in length, 6.35 mm in width, and 3.3 mm in height.
It operates within a temperature range of 0°C to 70°C, making it suitable for typical industrial environments.
This model supports a single channel configuration.
The input bias current is rated at 500 nA, which helps ensure low signal distortion.
It features a through-hole mount type, facilitating easy insertion and soldering in PCBs.
The input offset current is 200 nA, contributing to stable signal amplification.
This operational amplifier belongs to the LM318-N series, known for its reliable performance.
It is suitable for use in industrial machines, laboratory instruments, electronic circuits, and measuring and testing instruments.
The operational amplifier has a pin count of 8.
