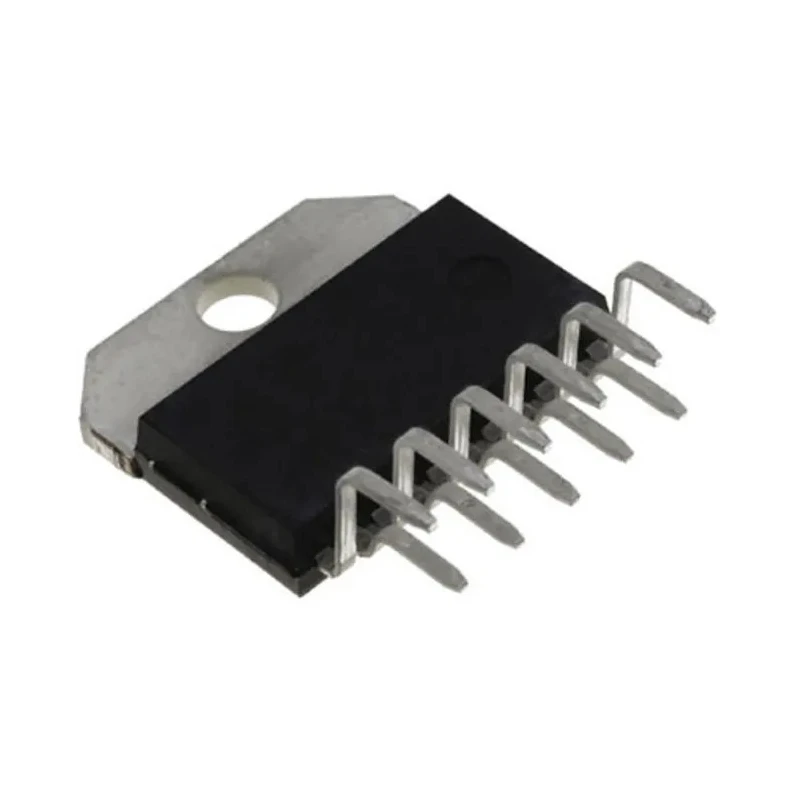

STMicroelectronics Automotive Audio Bridge Amplifier 27W Class A-B, 11-Pin Multiwatt E-TDA7396
Specifications
| Country of Origin | Morocco |
|---|---|
| Brand | STMicroelectronics |
| Height | 10.7mm |
| Length | 19.6mm |
| Model | E-TDA7396 |
| Width | 5mm |
| Output Power | 27W |
| Mount Type | Through Hole |
| Series | TDA7396 |
| Maximum Operating Temperature | 150°C |
| Package Type | Multiwatt |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 11 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 8V |
| Amplifier Type | Bridge Amplifier |
| Amplifier Class | Class A-B |
| GBP - Gain Bandwidth Product | 75kHz |
Key Features
- Designed for automotive audio applications with compliance to AEC-Q100 standard.
- Class A-B amplifier delivering clean and powerful sound output.
- Operates from 8V to 18V supply voltage with 150°C maximum operating temperature.
- Single channel bridge amplifier capable of driving low-impedance speakers.
- Robust protections include short-circuit, ESD, load dump, and over-temperature safeguards.
- Compact through-hole mounting with 19.6mm length, 10.7mm height, and 5mm width dimensions.
- Ideal for automotive and other demanding audio amplification applications.
Product Description
STMicroelectronics E-TDA7396 is a robust automotive audio bridge amplifier offering 27 watts of power in a single channel design. Its Class A-B amplifier configuration ensures high fidelity and powerful audio suitable for automotive sound systems. Encapsulated in an 11-Pin Multiwatt package, it supports through-hole mounting, facilitating easy integration into boards.
The device operates over a voltage range from 8 volts to 18 volts with a maximum operating temperature of 150°C, making it suitable for demanding automotive environments. It complies with the AEC-Q100 automotive standard to guarantee reliability and performance under harsh conditions.
Additional features include integrated protection mechanisms against short circuits, electrostatic discharge, load dumping, and over-temperature scenarios, enhancing durability and safety in automotive systems. The amplifier's gain bandwidth product (GBP) of 75 kHz ensures clear audio reproduction for entertainment and communication applications.
The compact dimensions of 19.6 mm length, 10.7 mm height, and 5 mm width make this amplifier suitable for space-constrained applications. It is also compatible with optional interfaces such as I²C for diagnostic and control purposes, and efficiency augmentation options are available.
This product is manufactured in Morocco and is ideal for automotive audio amplification, industrial audio systems, and other electronic amplification needs requiring reliable and high-quality sound output.
Designed for automotive and industrial audio amplification requiring reliable Class A-B output. Single channel with robust integrated protection and wide operating temperature range. Suitable for through-hole mounting in compact electronic assemblies.
Complies with automotive quality and reliability standards (AEC-Q100). Supports additional interfaces and efficiency options for advanced audio system designs. Explore more automotive audio amplification components and related electronic amplifiers in the Electronics & Electricals category at EnvMart.
