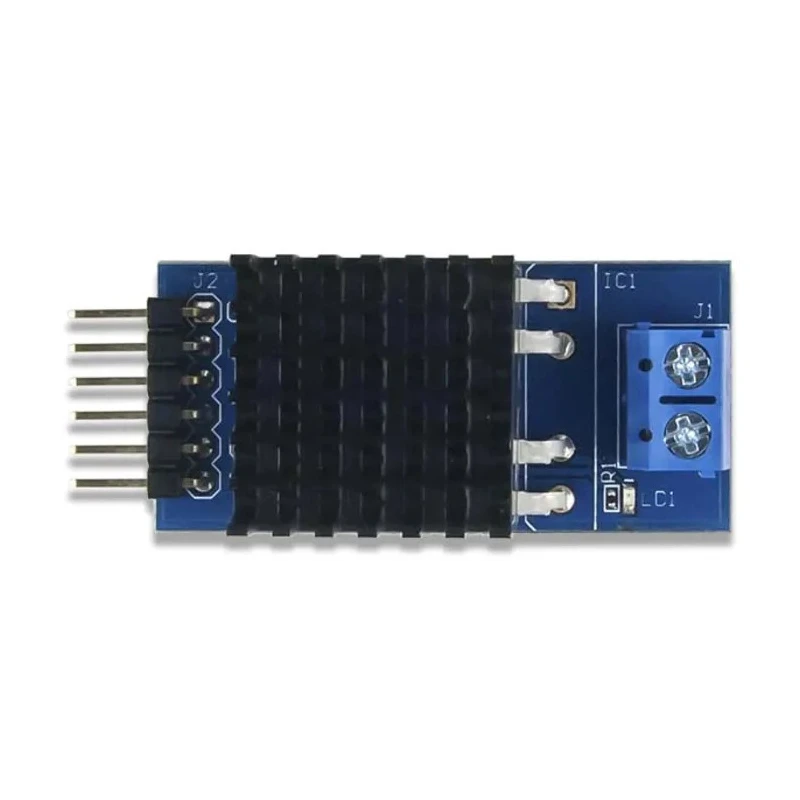

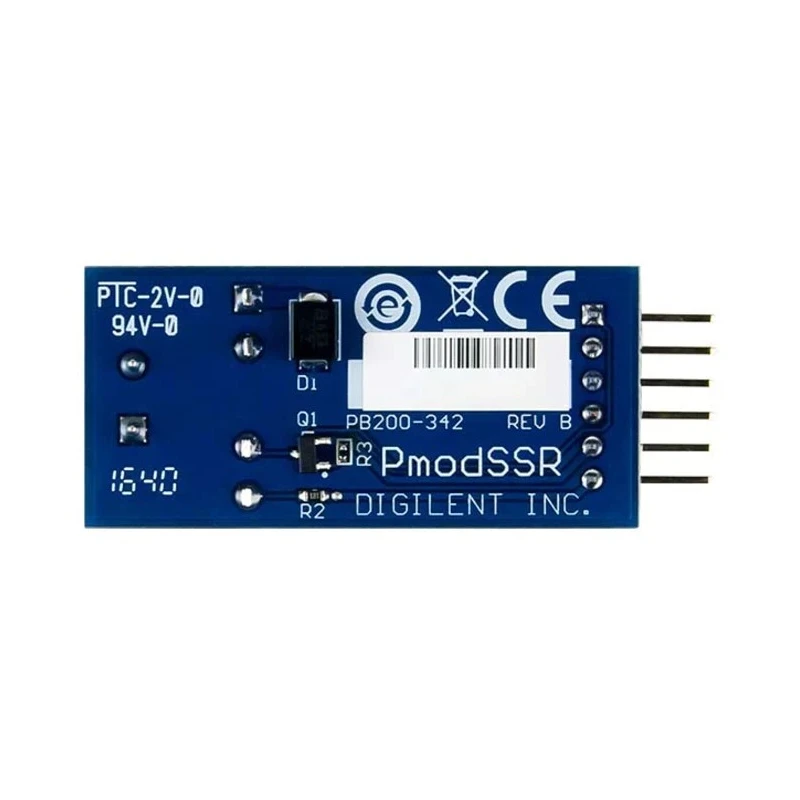

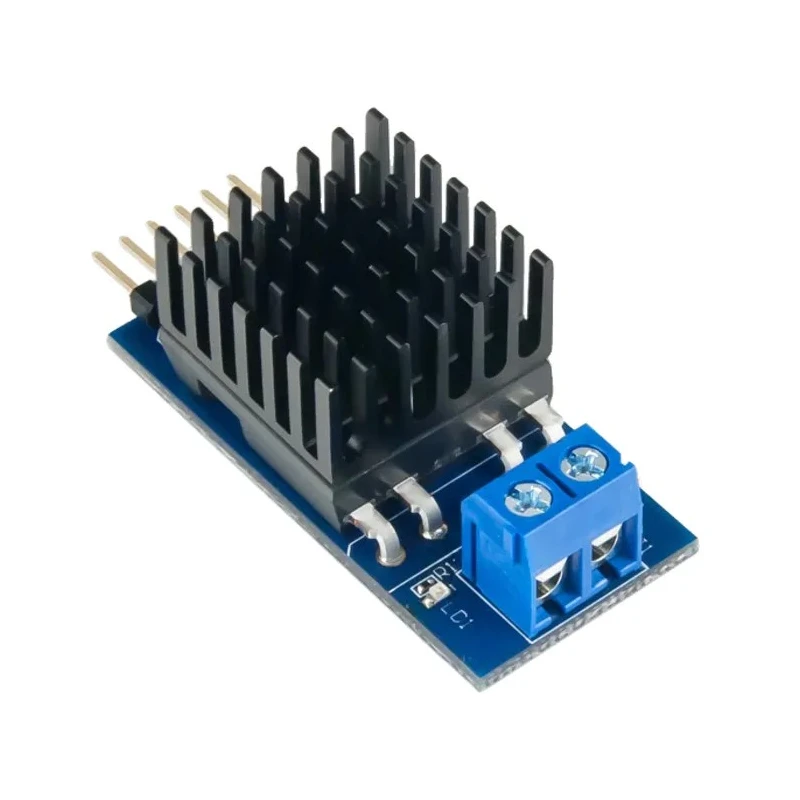

Digilent Solid State Relay Pmod Evaluation Board 0-48 V Blocking Voltage 6 Arms Continuous Current 410-342
Specifications
| Country of Origin | India |
|---|---|
| Brand | Digilent |
| Model | 410-342 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 146-5602Brand: DigilentManufacturers Part No.: 410-342 |
| Kit Classification | Evaluation Board |
| Digilent RelayRS Stock No. | 146-5602Brand: DigilentManufacturers Part No.: 410-342 |
Key Features
- Utilizes IXYS CPC1908J solid state relay for efficient switching.
- Controlled by a single GPIO pin allowing easy digital interfacing.
- Impressive 2500 V input/output isolation ensures electrical safety.
- Low on resistance with fast turn on/off times for effective operation.
- Onboard LED indicates relay on/off state clearly.
- Integrated terminal block facilitates quick and reliable wire connections.
- Compact PCB size of 1.7 x 0.8 inches (4.3 x 2.0 cm) supports flexible design integration.
- Equipped with a 6-pin Pmod connector compliant with Digilent Pmod Interface Specification.
Product Description
Digilent 410-342 relay is a solid state relay evaluation board designed for precise power switching applications within electronics, robotics, and embedded systems. It incorporates the IXYS CPC1908J SSR capable of blocking voltages up to 48 V and handling continuous currents up to 6 Arms effectively.
This relay board is controlled via a single GPIO pin, making it compatible and simple to integrate with microcontrollers such as Raspberry Pi and Arduino in industrial, laboratory, and educational setups. The device provides robust electrical insulation with 2500 V isolation between input and output, enhancing safety in power management systems.
With its low on resistance and rapid switching capability, this relay ensures minimal power loss and fast response times, vital for motor control and automation tasks. An onboard LED provides clear visual indication of the relay's operational status, improving troubleshooting efficiency.
The relay includes a terminal block for easy wire connection and a compact form factor measuring 1.7 inches by 0.8 inches (4.3 cm by 2.0 cm), enabling integration in space-constrained designs. The 6-pin Pmod connector adheres to Digilent's Pmod Interface Specification, supporting standardization and ease of use.
This evaluation board is suited for applications in development tools, robotics, and power control modules within industrial, commercial, and educational fields. Utilizes IXYS CPC1908J solid state relay for efficient switching.
Controlled by a single GPIO pin allowing easy digital interfacing. Impressive 2500 V input/output isolation ensures electrical safety. Low on resistance with fast turn on/off times for effective operation. Onboard LED indicates Relay on/off state clearly.
Integrated terminal block facilitates quick and reliable wire connections. Compact PCB size of 1.7 x 0.8 inches (4.3 x 2.0 cm) supports flexible design integration. Equipped with a 6-pin Pmod connector compliant with Digilent Pmod Interface Specification.
Explore further options and accessories in the Power, Motor & Robotics Development Tools category on EnvMart for optimized system configurations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Digilent Solid State Relay Pmod Evaluation Board can handle blocking voltages up to 48 V.
This relay board supports a continuous current of up to 6 Arms.
It is controlled via a single GPIO pin, allowing for easy digital interfacing with microcontrollers.
The board offers 2500 V input/output isolation, enhancing electrical safety during operation.
The compact PCB measures 1.7 x 0.8 inches (4.3 x 2.0 cm).
Yes, there is an onboard LED that indicates the relay's on/off state clearly.
It is equipped with a 6-pin Pmod connector compliant with the Digilent Pmod Interface Specification.
This model is suited for applications in electronics, robotics, and embedded systems, particularly in power control modules.
The relay includes an integrated terminal block that allows for quick and reliable wire connections.
It is designed for precise power switching applications, making it ideal for development tools and automation tasks.
The country of origin for this relay board is India.
The model number of this solid state relay evaluation board is 410-342.
