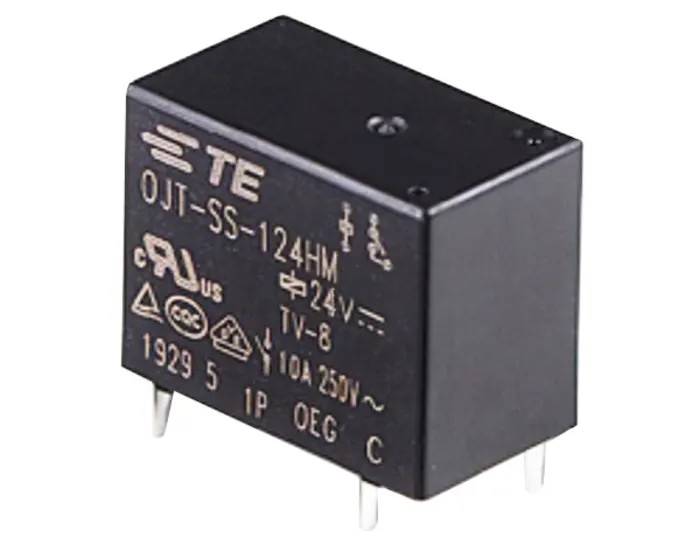

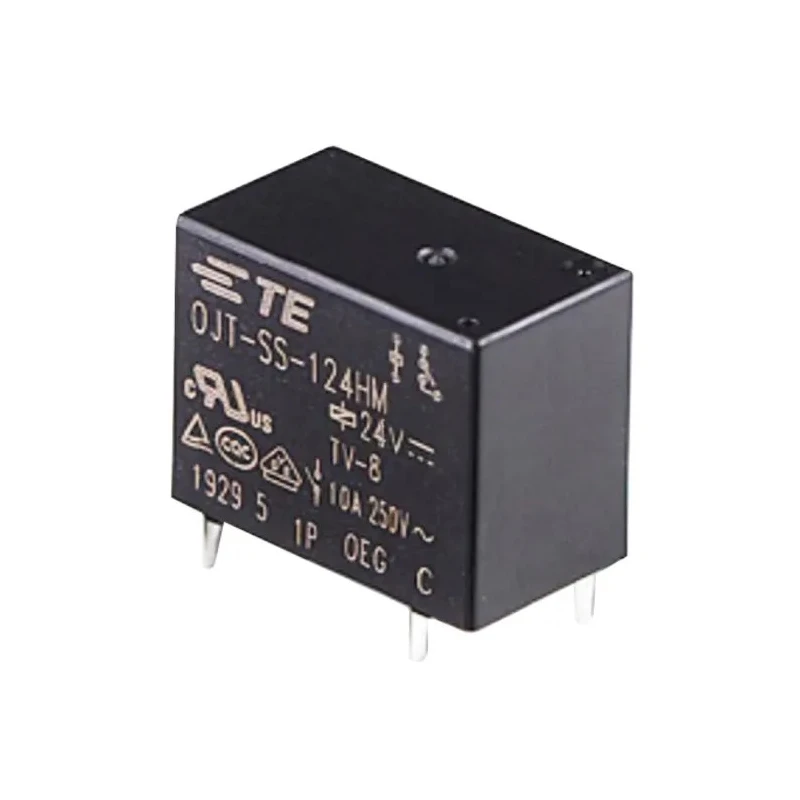

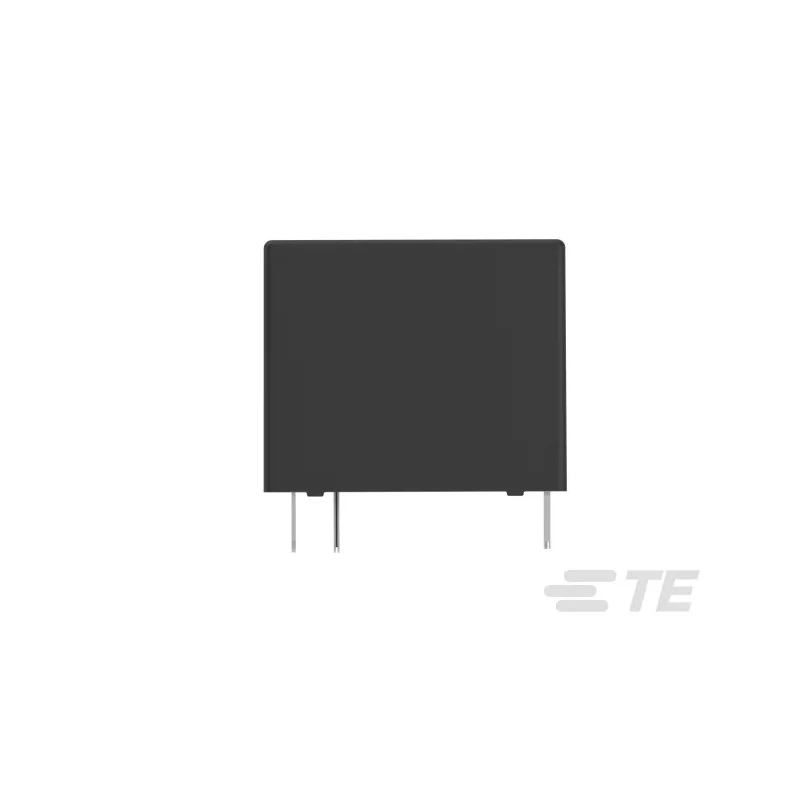

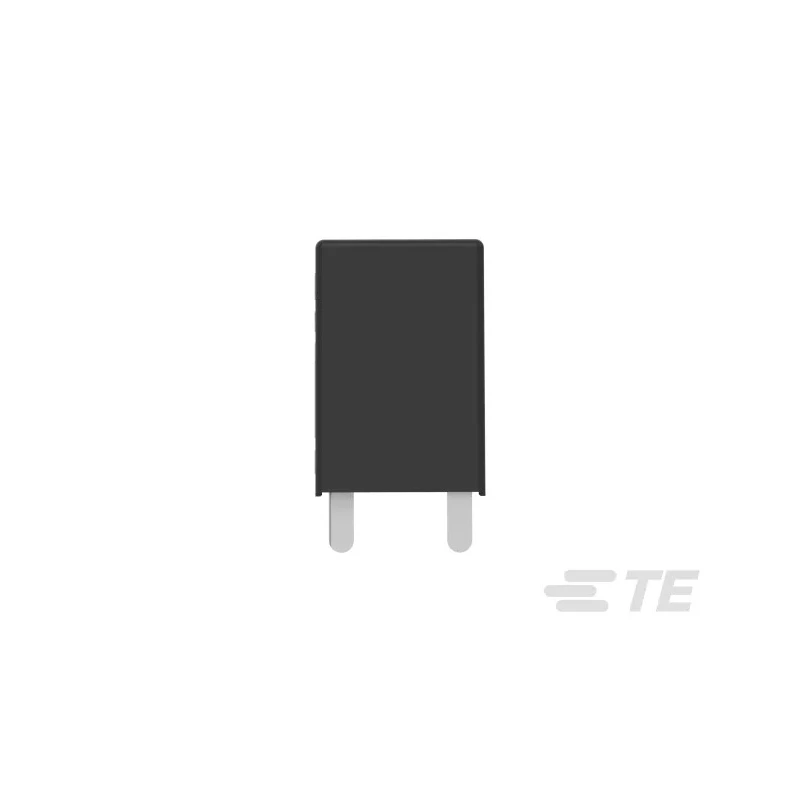

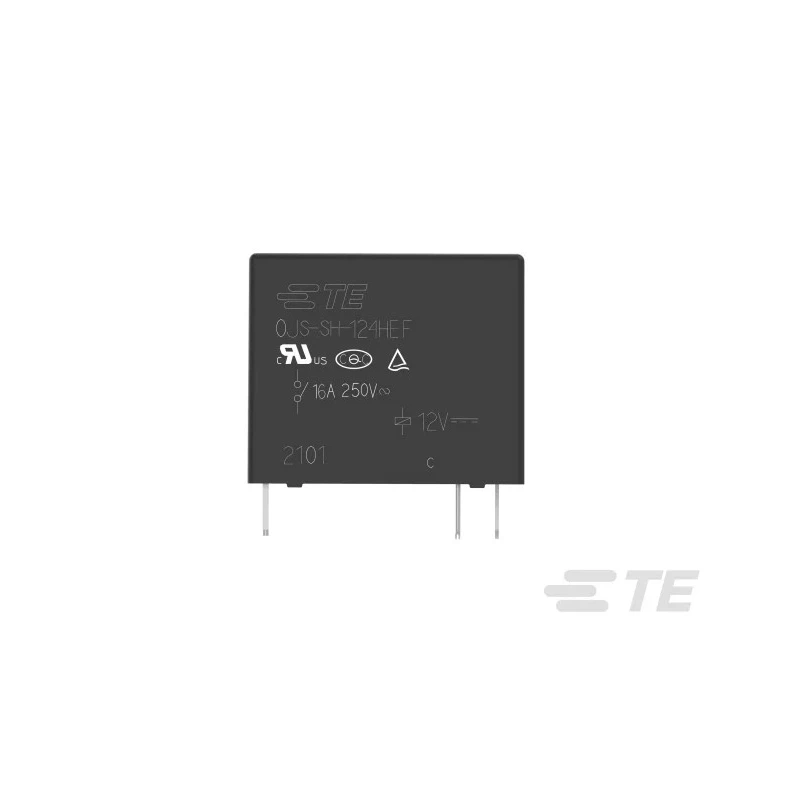

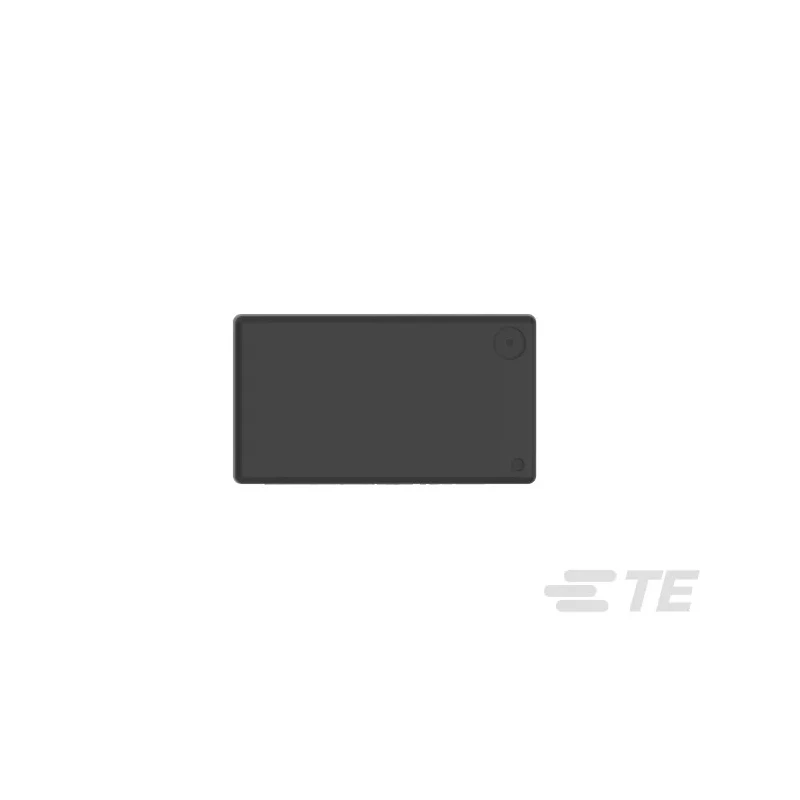

TE Connectivity PCB Relay 24V dc Coil 16A Switching Current SPST Model 1-2071556-0
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 14.8mm |
| Length | 18.2mm |
| Width | 10.2mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | OJS |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.3kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 450mW |
Key Features
- Compact size of 18.2 x 10.2 x 14.8 mm suits standardized PCB footprints.
- Coil power consumption is low at 450 mW for efficient operation.
- Contact material is durable silver alloy ensuring long-term conductivity.
- Designed to operate between -40°C to 70°C, suitable for varied environments.
- Switching AC voltage capability of 277V ac for versatile use.
- Coil resistance is 1.3 kΩ for precise coil performance.
- Screw terminal type ensures secure and easy wiring.
- Compliance with RoHS standards endorses environmental safety.
Product Description
TE Connectivity 1-2071556-0 PCB Relay is a high-performance power relay with a 24V dc coil and 16A switching current rating, configured as SPST (single pole single throw). This relay is designed for PCB mounting with a compact footprint measuring 18.2 mm in length, 10.2 mm in width, and 14.8 mm in height, optimized for demanding industrial and commercial applications.
The coil power is 450 mW making it energy efficient, and the coil resistance of 1.3 kΩ contributes to stable coil operation. Contacts are made from a silver alloy, providing excellent conductivity and reliability over long operational life. The relay supports switching AC voltage up to 277V ac and operates reliably across a wide temperature range from -40°C to 70°C.
Featuring a screw terminal for secure connections, this relay offers excellent insulation with a coil to contact dielectric strength of 4000 Vrms and meets RoHS compliance standards, ensuring environmental safety in manufacturing and use.
This relay is suitable for diverse applications including control panels, industrial automation systems, robotics, HVAC systems, motion control, CNC machines, lighting, building automation, and solar power systems. TE Connectivity's extensive experience in relay design ensures robust, reliable switching solutions tailored for high performance and safety-critical uses in industrial and commercial domains.
Compact PCB mount relay with 24V dc coil and 16A switching current. SPST contact configuration with screw terminals for secure wiring. Wide operating temperature range from -40°C to 70°C. Durable silver alloy contact material for reliable electrical conduction.
Low coil power consumption of 450 mW enhances efficiency. High dielectric strength of 4000 Vrms ensures robust insulation. Suitable for automation, control panels, lighting, solar, HVAC, and CNC machinery. Explore more power Relay options and industrial components at EnvMart to meet your specific application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a switching current rating of 16A, making it suitable for various applications requiring reliable current control.
The coil voltage for this relay is 24V dc, which is necessary for its operation.
The contact configuration of this relay is SPST (single pole single throw), allowing for simple on/off control.
This relay can switch AC voltage up to 277V ac, providing versatility for various applications.
The dimensions of this relay are 18.2 mm in length, 10.2 mm in width, and 14.8 mm in height, designed for compact PCB mounting.
The coil resistance of this relay is 1.3 kΩ, which contributes to its efficient operation.
The coil power consumption is 450 mW, which enhances the energy efficiency of this relay.
This relay operates reliably within a temperature range of -40°C to 70°C, making it suitable for diverse environments.
This model features screw terminals, ensuring secure and easy wiring connections.
The contacts are made from a durable silver alloy, ensuring reliable conductivity over its operational life.
Yes, this relay complies with RoHS standards, endorsing its environmental safety in manufacturing and use.
This relay is suitable for applications such as control panels, industrial automation systems, HVAC systems, and solar power systems.
