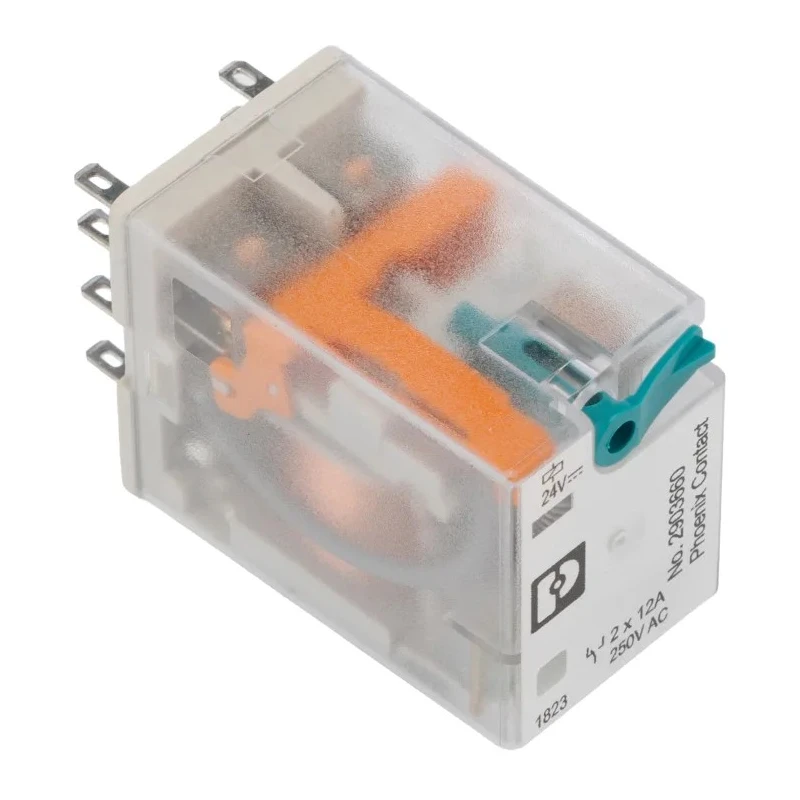

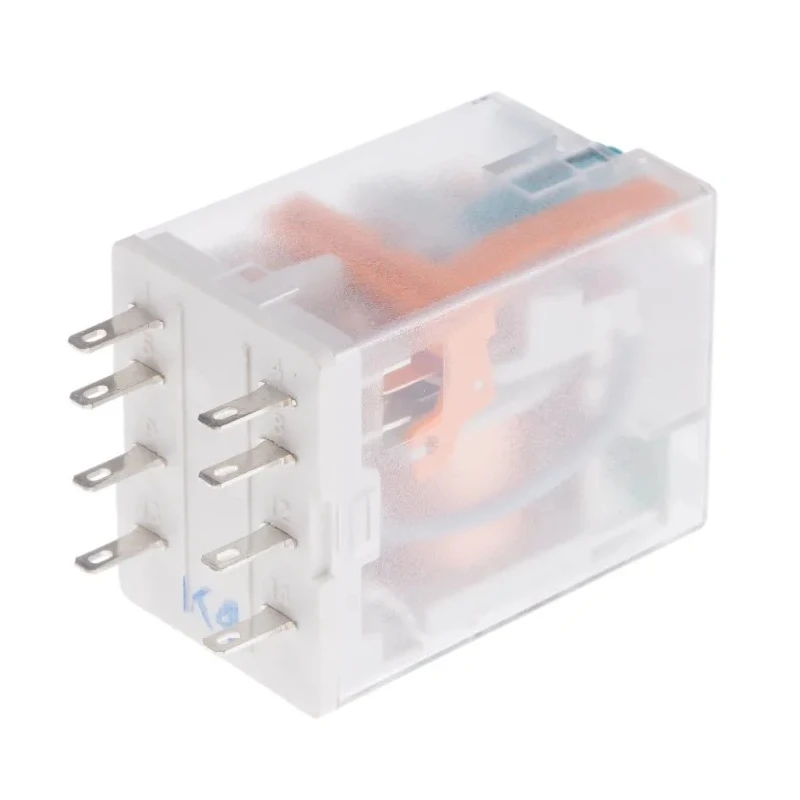

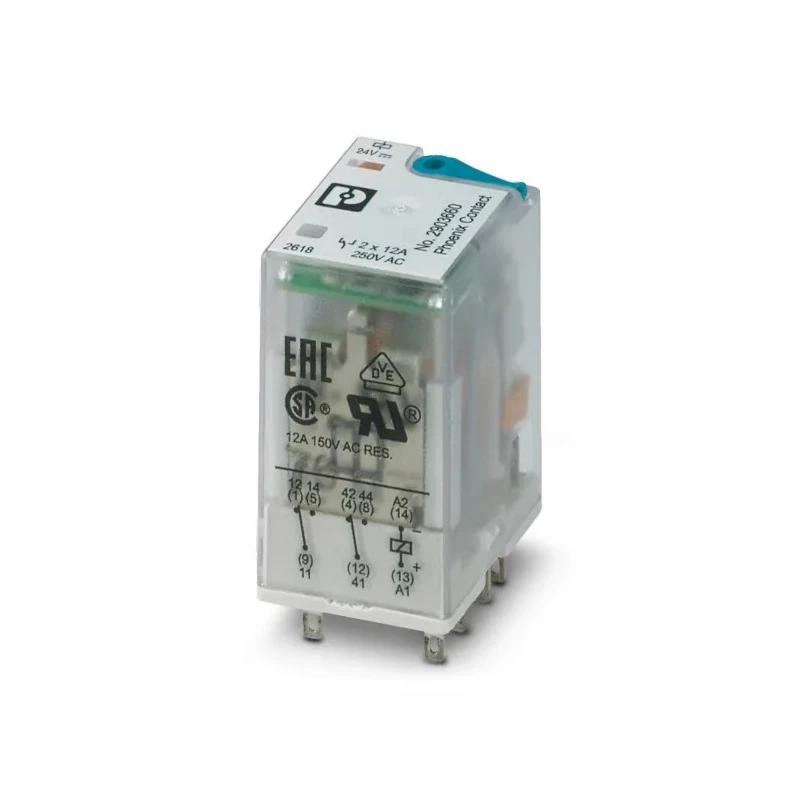

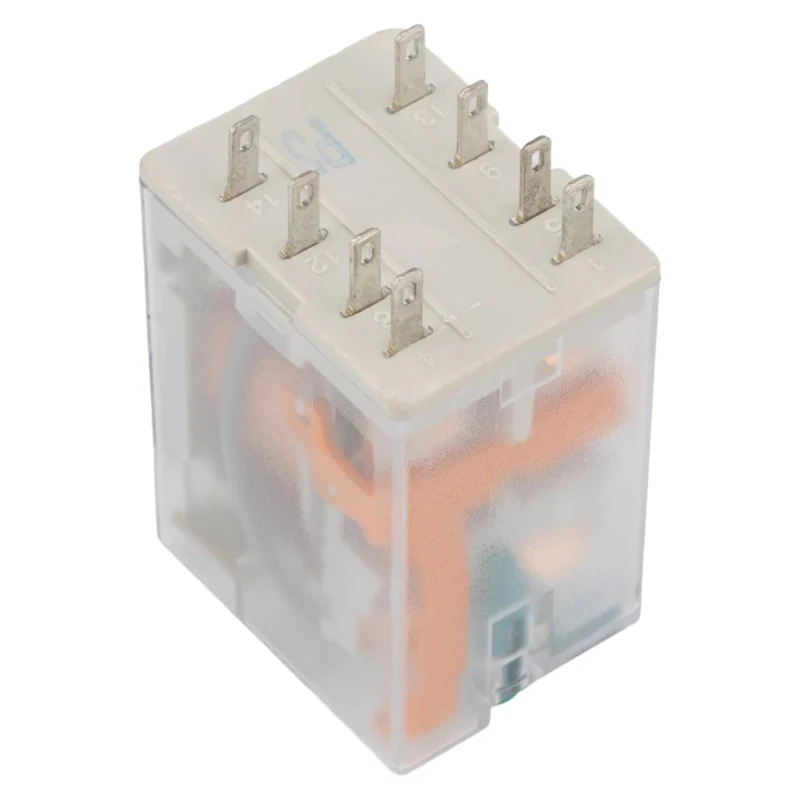

PHOENIX CONTACT PCB Relay 24V DC Coil 5mA Switching Current DPDT 2903660
Specifications
| Country of Origin | India |
|---|---|
| Brand | Phoenix Contact |
| Height | 27.5mm |
| Length | 21.2mm |
| Model | 2903660 |
| Width | 21.2mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | REL-IR2/LDP- 24DC/2X21 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5mA |
| Terminal type | Plug-In |
| Standards/Approvals | DIN, IEC |
| Coil Resistance | 640Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 77mW |
| Phoenix Contact PCB Mount Non-Latching Relay, 24V dc Coil, DPDTBrand | Phoenix Contact |
Key Features
- Operates with a 24V DC coil voltage for efficient control.
- Double pole double throw (DPDT) contact configuration provides flexible switching options.
- Plug-in mount type ensures easy PCB integration.
- Compact dimensions of 21.2x27.5x35.6mm suit tight spaces.
- Supports switching voltages up to 250V AC/DC for versatile use.
- Mechanical life expectancy approximates 20 million cycles for long-term reliability.
- Operates effectively in temperatures ranging from -40°C to +70°C.
- Features silver alloy contacts for enhanced durability and conductivity.
Product Description
PHOENIX CONTACT 2903660 PCB Relay is a compact and robust power relay engineered for automation and electrical control systems. Featuring a 24V DC coil voltage and 5mA switching current, this DPDT (double pole double throw) relay is designed for precise and reliable switching.
Its plug-in mount design allows seamless integration on PCBs, with physical dimensions of 21.2mm length, 27.5mm height, and 35.6mm depth, making it suitable for applications with limited space.
The relay supports a maximum switching voltage of 250V AC/DC, accommodating diverse industrial control requirements. Its silver alloy contact material enhances electrical conductivity and operational longevity. It is built to operate within a temperature range of -40°C to +70°C, complying with IEC standards, enabling usage even in harsh and corrosive environments.
Additional features such as a freewheeling diode protect the relay's coil circuitry from voltage spikes, improving component lifespan. The integrated yellow LED status indicator provides real-time operational feedback to assist with maintenance and troubleshooting.
This relay is ideal for use in industrial automation, machinery safety interlocks, electrical control panels, and power distribution systems requiring dependable switching performance.
Operates with a 24V DC coil voltage for efficient control. Double pole double throw (DPDT) contact configuration provides flexible switching options. Plug-in mount type ensures easy PCB integration. Compact dimensions of 21.2x27.5x35.6mm suit tight spaces.
Supports switching voltages up to 250V AC/DC for versatile use. Mechanical life expectancy approximates 20 million cycles for long-term reliability. Operates effectively in temperatures ranging from -40°C to +70°C. Features silver alloy contacts for enhanced durability and conductivity.
Includes a yellow LED status display for operational feedback. Equipped with a freewheeling diode to protect circuits. Explore the PHOENIX CONTACT Relay range on EnvMart for comprehensive industrial-grade electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC.
It has a switching current rating of 5mA.
This relay features a double pole double throw (DPDT) contact configuration.
The relay supports a maximum switching voltage of 250V for both AC and DC applications.
The dimensions of the relay are 21.2mm in length, 27.5mm in height, and 35.6mm in depth.
It operates effectively within a temperature range of -40°C to +70°C.
The contacts are made of silver alloy, which enhances durability and conductivity.
This model features a plug-in mount type for easy integration onto PCBs.
The mechanical life expectancy of this relay is approximately 20 million cycles.
Yes, it is equipped with a freewheeling diode to protect the coil circuitry from voltage spikes.
It complies with DIN and IEC standards.
It includes a yellow LED status indicator for real-time operational feedback.
