Fluke Multi-Function Calibrator 1000V AC 30mA Current HART Communication FLK-789/IR3000FC
Specifications
| Country of Origin | United States |
|---|---|
| Resolution | 1 mA |
| Accuracy | ± 0.02 % + 2 LSD |
| Brand | Fluke |
| Battery Life | 140h |
| Battery type | AA Alkaline |
| Height | 50mm |
| Length | 203mm |
| Model | FLK-789/IR3000FC |
| Gross Weight | 610g |
| Width | 100mm |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | CSA, IC, FCC, CE |
| Safety Category Level | CAT IV, CAT III |
| Safety Category Voltage | 600, 1V |
| Fluke Multimeter KitBrand | Fluke |
| Maximum Voltage Measurement | 1000V ac |
| Port Connections | HART |
| Maximum Current Measurement | 1 |
| Fluke 789 Multi-Function Calibrator, 30 mA, 1000V ac 50 mm 203 mm 100mmBrand | Fluke |
Key Features
- Offers ±0.02% + 2 LSD accuracy for calibrations.
- Measures up to 1000V AC and sources 30mA currents with 1mA resolution.
- Equipped with HART port for communication with HART instruments.
- Battery powered by four AA alkaline cells providing up to 140 hours of operation.
- Safety rated CAT IV 600V and CAT III 1000V for industrial environments.
- Operates in temperature range -20°C to 55°C ensuring durability in field conditions.
- Supports wireless logging via IR3000FC adaptor with Fluke Connect® functionality.
Product Description

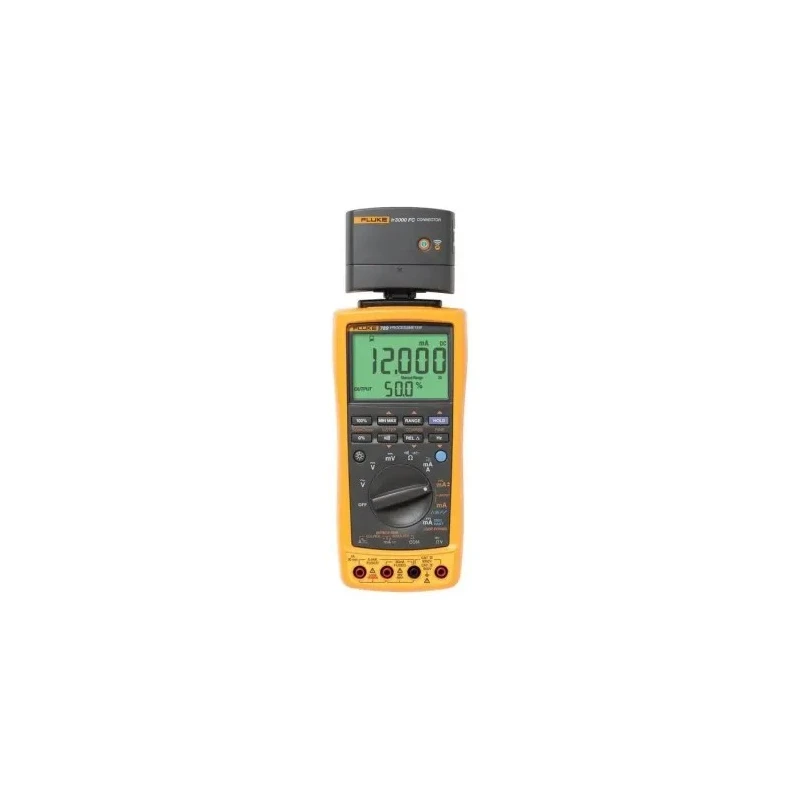

Fluke FLK-789/IR3000FC Multi-Function Calibrator is an advanced electrical calibration instrument designed for field and workshop applications, combining a safety-rated digital multimeter with current loop sourcing and simulation. It supports true RMS voltage readings, frequency measurements up to 20 kHz, and provides HART communication capabilities when paired with the dedicated interface module.
The calibrator offers exceptional precision with ±0.02% + 2 LSD accuracy, making it ideal for commissioning and troubleshooting process control loops and current-loop transmitters. It sources 20.000 mA with 1 mA resolution and delivers a 24V loop power supply to energize transmitter circuits, handling typical loop impedances effectively.
Safety is assured with CAT IV 600V and CAT III 1000V ratings suitable for industrial environments. The unit operates reliably in temperatures as low as -20°C and up to 55°C with consistent accuracy and has CSA, IC, FCC, and CE certifications, complying with IEC 61010 safety standards.

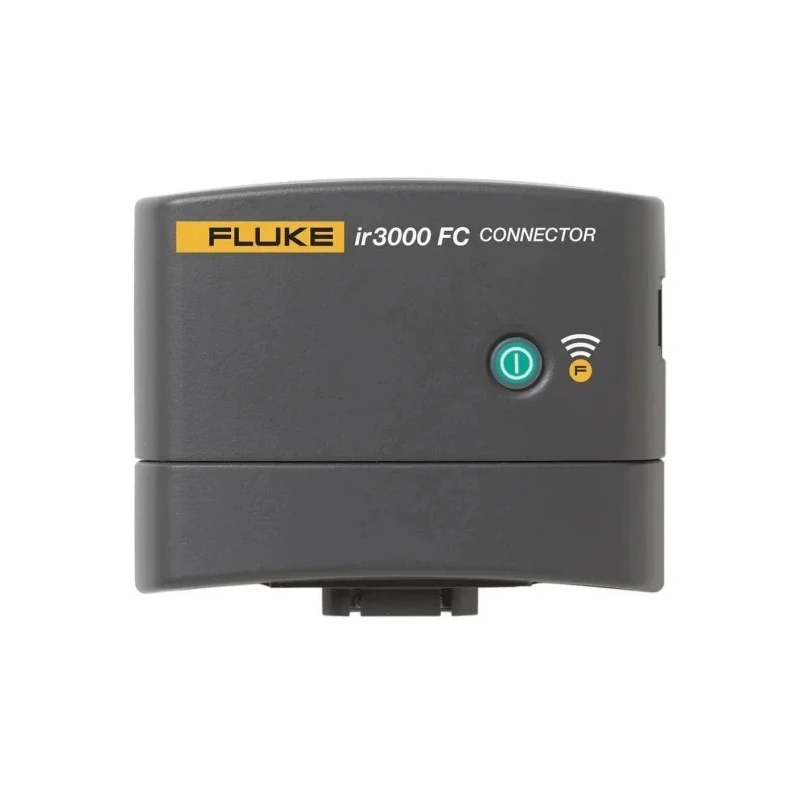

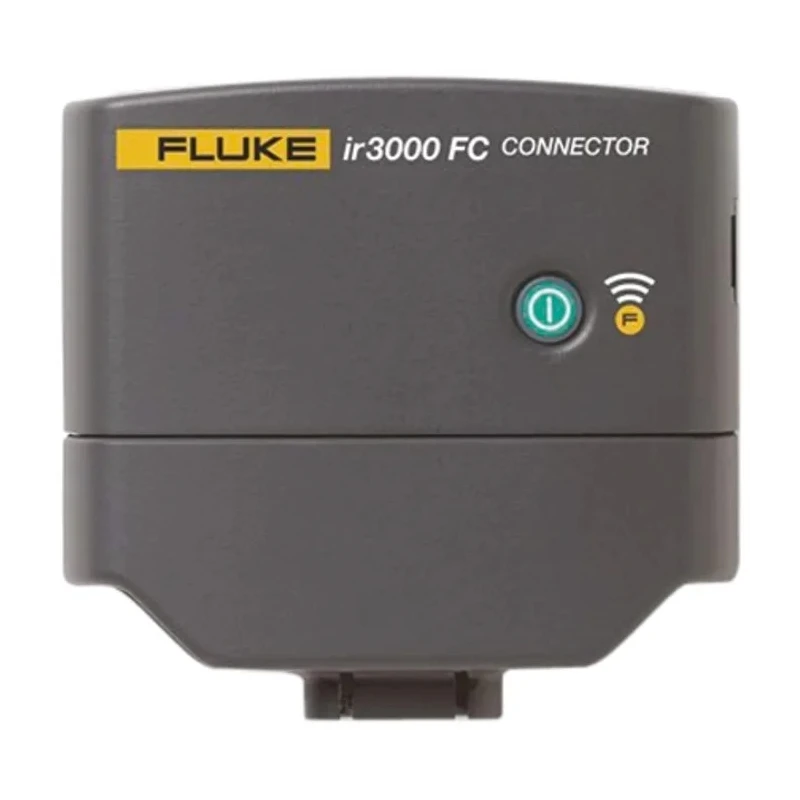

Powered by four AA alkaline batteries, the calibrator supports up to 140 hours of battery life, allowing extended field use with easy battery replacement. Wireless data logging capabilities are enabled via the compatible IR3000FC adaptor, facilitating remote monitoring through Fluke Connect®.
High accuracy calibration work with ±0.02% + 2 LSD precision. Current sourcing up to 30mA with 24V compliance for loop testing. HART port compatibility for advanced instrument communication. Robust safety categories CAT IV 600V and CAT III 1000V for industrial sites.
Extended battery life of up to 140 hours on AA alkaline cells. Suitable for bench verification and field troubleshooting of current loops. Rugged design operating from -20°C to 55°C ambient temperatures. Compact size with dimensions 203mm x 100mm x 50mm and lightweight of 610g.
This multi-function calibrator is essential for professionals in industrial, electrical, HVAC, manufacturing, and laboratory settings requiring accurate electrical test measurements and current loop calibrations. Browse EnvMart's range of measuring instruments to find complementary products and accessories.
Explore more products in our Multi Function Calibrator category.
