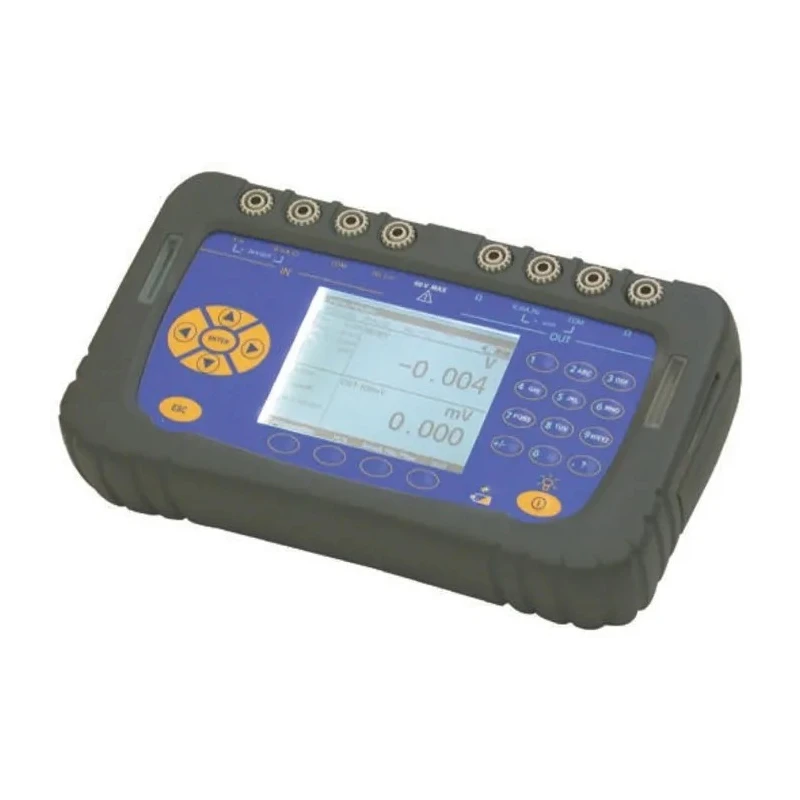

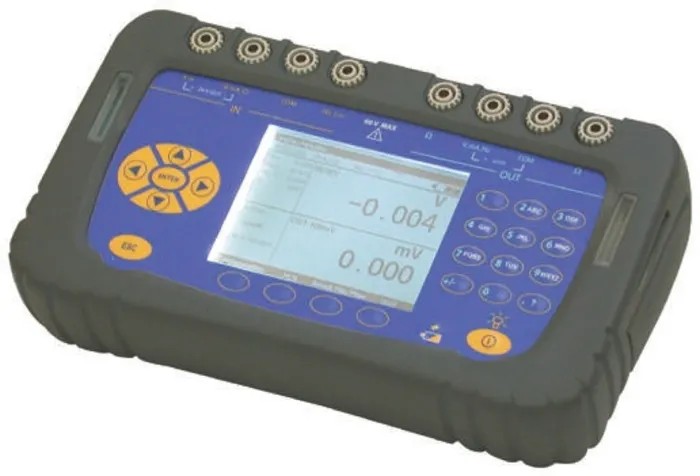

Aoip Instrumentation Multi-Function Calibrator 20 mA 50V 50 mm x 210 mm x 110 mm CALYS 75

Aoip Instrumentation CALYS 75 Multi-Function Calibrator is a professional-grade instrument designed to provide precise measurement and simulation of electrical and process signals. It supports current ranges up to 20 mA and voltage up to 50 V, making it ideal for advanced process maintenance applications across various industries.

The calibrator features two isolated channels allowing simultaneous measurement and signal generation, facilitating efficient testing and calibration with minimal downtime. The instrument includes an intuitive double display that provides real-time data, including date, time, and ambient temperature, enhancing the user's ability to monitor and record environmental conditions during measurements.

This device employs an 'easy connect' terminal system that accepts various connection types including sockets, bare wires, banana plugs, and flat thermocouple connectors, offering great versatility in field and laboratory settings. The backlit graphic display supports adjustable contrast for clear readability in low-light scenarios and selectable resolution offering 1 to 3 decimal digits for tailored precision.

Additional capabilities include measurement statistics (minimum, maximum, average), emission of ramps and increments to test transmitter linearity, valve testing, and scaling for both quadratic and linear sensor signals. It is compatible with HART transmitters which further expands its utility in process automation environments. The CALYS 75 includes a USB port for downloading software and updates, ensuring the device remains current with evolving technological standards.

This multifunction calibrator comes with robust mechanical protection provided by an antichoc rubber holster, ensuring durability in demanding industrial environments. It is powered via a rechargeable lithium-ion battery delivering up to 25 hours of battery life or can be powered by mains supply for longer use periods.

Technical specifications include a 50 V maximum voltage measurement, ±0.05 % accuracy, maximum pressure measurement of 1000 bar, and compliant with safety category CAT II at 60 V. The compact form factor measures 210 mm in length, 110 mm in width, and 50 mm in height while weighing 900 grams, making it portable for both field and laboratory use. The product is manufactured in France and adheres to standards such as EN 6100043, 21 CFR, and others.

Simultaneous current and voltage measurement and simulation up to 20 mA and 50 V respectively. Double LCD display with backlight, date, time, and ambient temperature indication. Easy connect terminals compatible with sockets, bare wires, banana plugs, and thermocouples.

Measurement statistics for min, max, and average values. Emission of ramps and increments for transmitter linearity testing. Valve test functionality and sensor signal scaling. Compatibility with HART transmitters for enhanced instrumentation integration.

USB interface for software downloads and updates. Durable antichoc rubber holster for protection in industrial environments. Long battery life of 25 hours with lithium-ion battery and optional mains power. Compact and lightweight design for portable use.

Compliance with international safety and quality standards.

This calibrator is highly suited for process control automation, manufacturing, and instrumentation applications. It offers reliable performance in both laboratory and field environments, contributing to efficient process maintenance and calibration tasks. Explore additional multifunction calibrators and related instruments to meet various electrical and process measurement needs at EnvMart.
