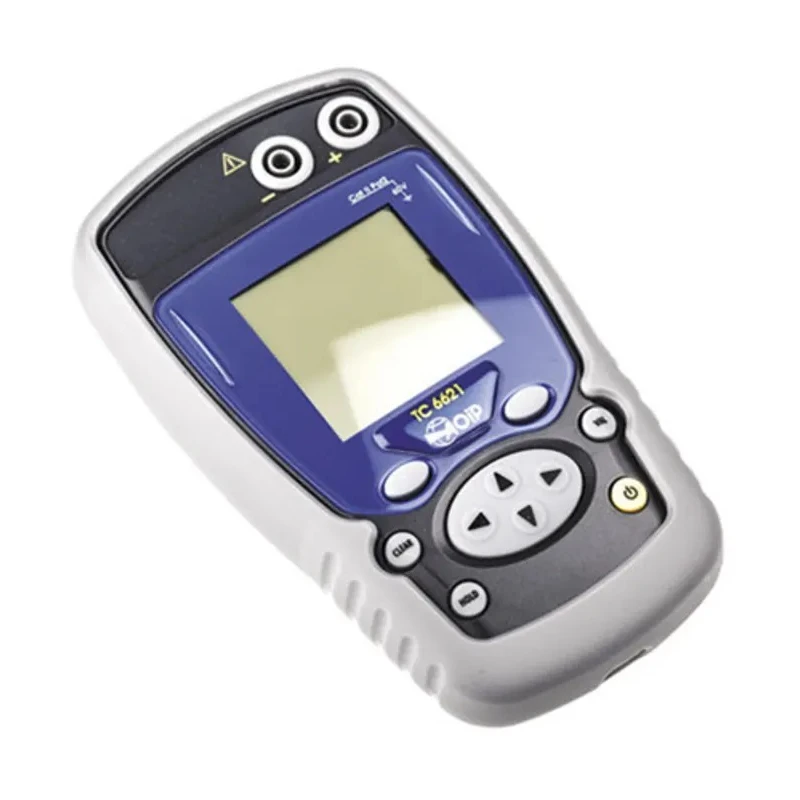

Aoip Instrumentation Thermocouple Temperature Calibrator, 0.02% Accuracy, -250°C to 1820°C TC6621

Aoip Instrumentation TC6621 Thermocouple Temperature Calibrator is a precise handheld device designed for accurate temperature measurement and calibration using thermocouples or resistive probes. The calibrator features a large graphical interface and internal memory, making it easy to program, measure, and analyze temperature signals in industrial and laboratory environments.

This calibrator supports sixteen different thermocouple types including E, J, K, L, Mo, N, NiMo/NiCo, Plantine, T, U, B, C, R, S, and T with accuracy specifications up to 0.02%. It offers an adjustable resolution as fine as 1μV and measures voltages ranging from -10mV to 100mV. Temperature readings are displayed in °C, °F, mV, or ohm, facilitating versatile use cases.

The TC6621 supports temperature ranges between -250°C and 1820°C suitable for a wide variety of thermocouple applications such as industrial process controls, laboratory validations, HVAC system testing, manufacturing calibration, and electronics temperature measurement. Its low temperature coefficient enhances precision by minimizing measurement drift.

The device features functions like HOLD for steady readings, simulation of ramps and steps, and pre-programmed calibration sequences which are valuable for automated calibration and testing processes. It comes with internal memory to store up to 10,000 values, displayed graphically for easy data review.

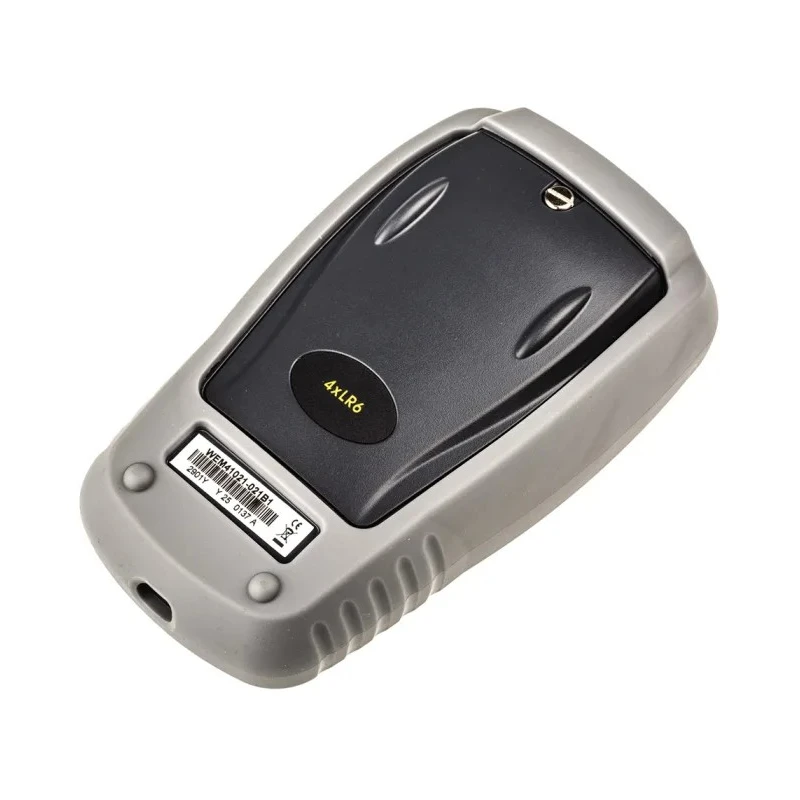

Its compact form factor with dimensions 157mm length, 85mm width, and 45mm height, weighing 306 grams, allows for handheld portability. The calibrator operates on 4 alkaline AA batteries included in the standard delivery. An optional rechargeable battery system with charger is also available for extended use.

High accuracy with 0.02% reading and 1μV adjustable resolution. Supports 16 thermocouple types and voltage measurement range -10mV to 100mV. Temperature measurement from -250°C to 1820°C. Low temperature coefficient for thermocouples and resistance measurement stability.

Large graphical display with memory storage for 10,000 values. Simulation of ramps and pre-programmed steps enhances calibration flexibility. Portable handheld device weighing 306 g. Delivered with 4 alkaline AA batteries; optional rechargeable battery charger available.

This calibrator is ideal for a range of industrial, laboratory, HVAC, manufacturing, and process calibration applications where precise and reliable temperature measurements are critical.

Explore the complete range of Temperature Calibrators and measurement instruments for advanced industrial and laboratory use at EnvMart.
