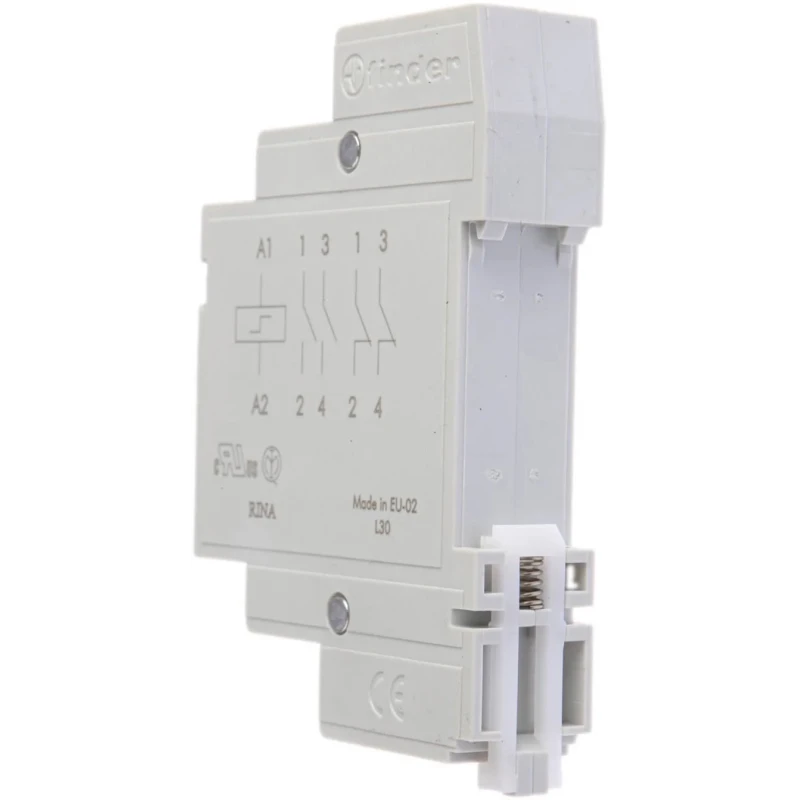

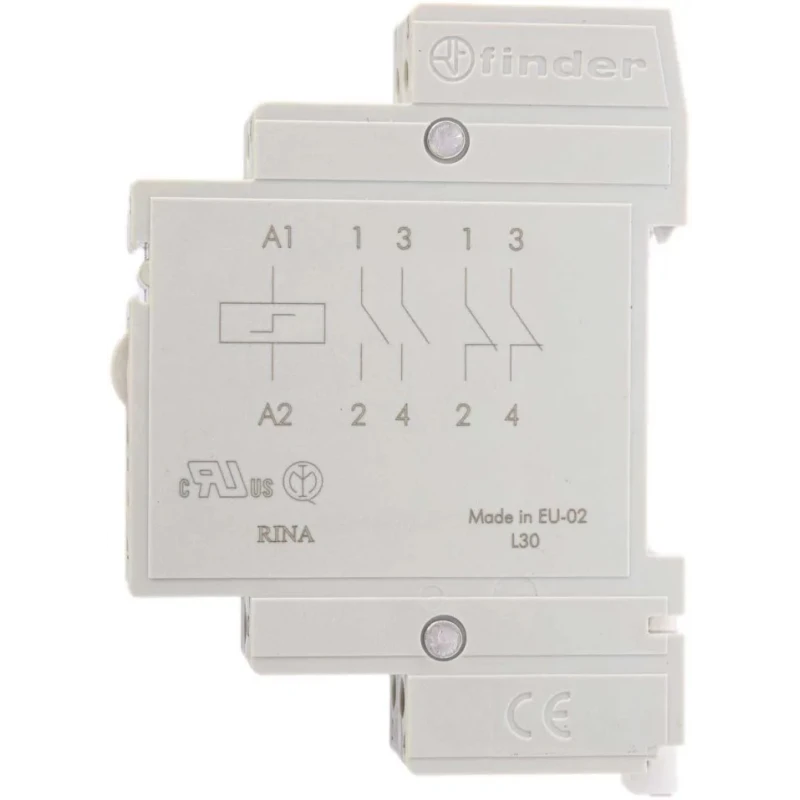

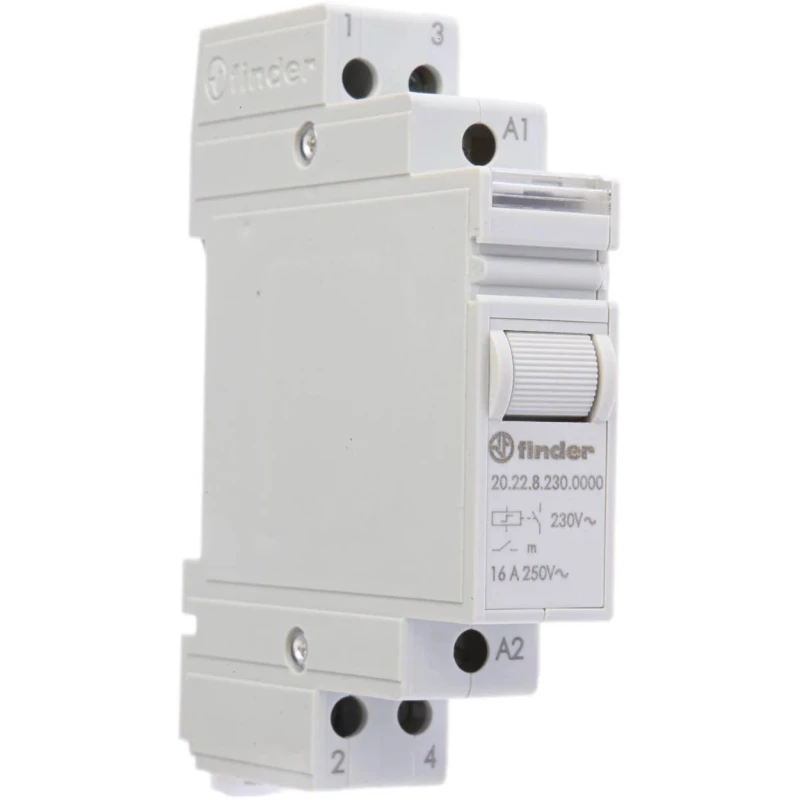

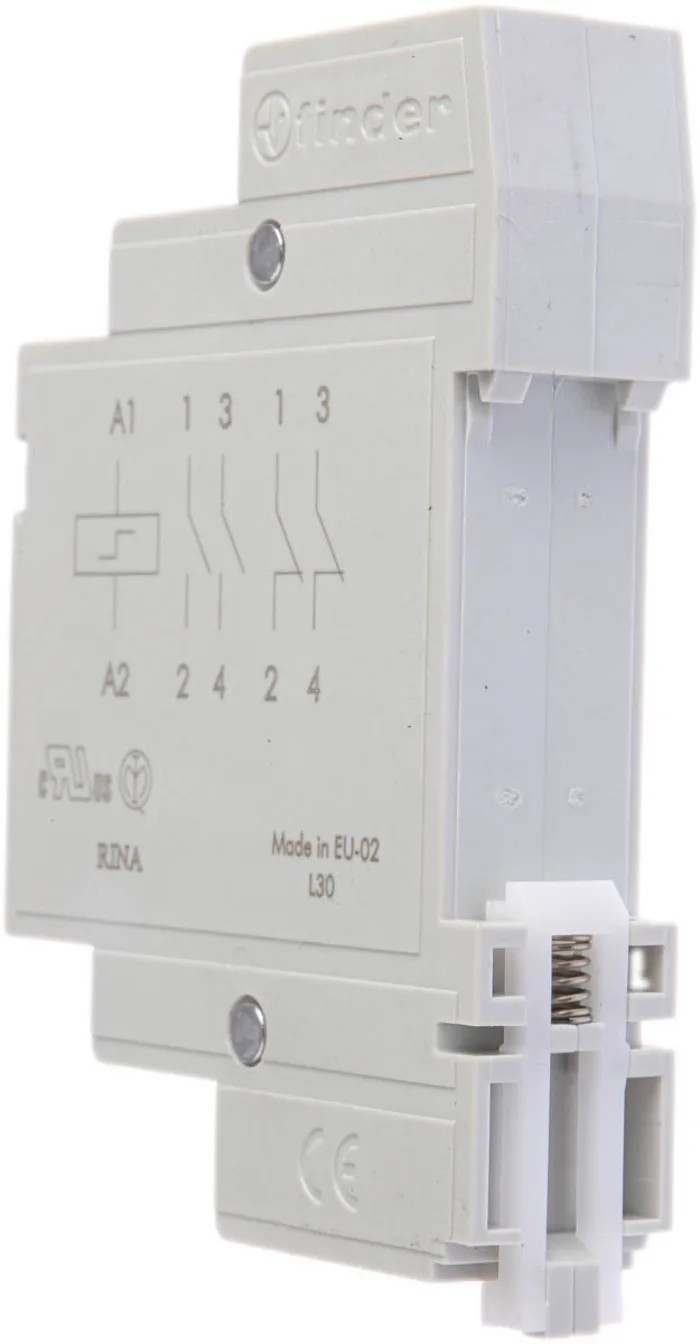

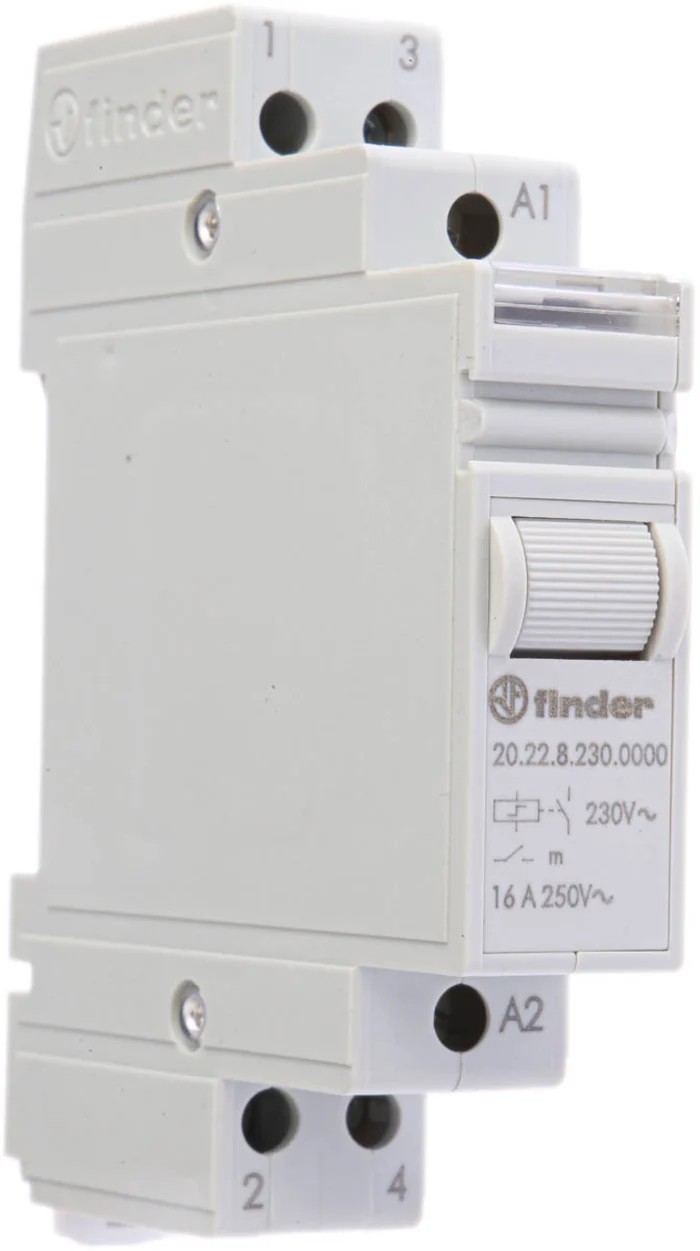

Finder DIN Rail Modular Step Relay 230V AC Coil 16A Switching Current DPST 20.22.8.230.0000

Finder 20.22.8.230.0000 DIN Rail Modular Step Relay is engineered for precision automation control with a robust 230V AC coil and a switching current rating of 16A. This relay offers a double pole, single throw (DPST) contact configuration suitable for diverse industrial and commercial electrical switching applications.

With dimensions of 84mm height, 58.4mm length, and 58.4mm width, it seamlessly mounts on standard DIN rails, making it compact and easy to integrate into existing control cabinets. The relay coil has a resistance of 2500Ω and consumes 6.5W power during operation, ensuring efficient energy use.

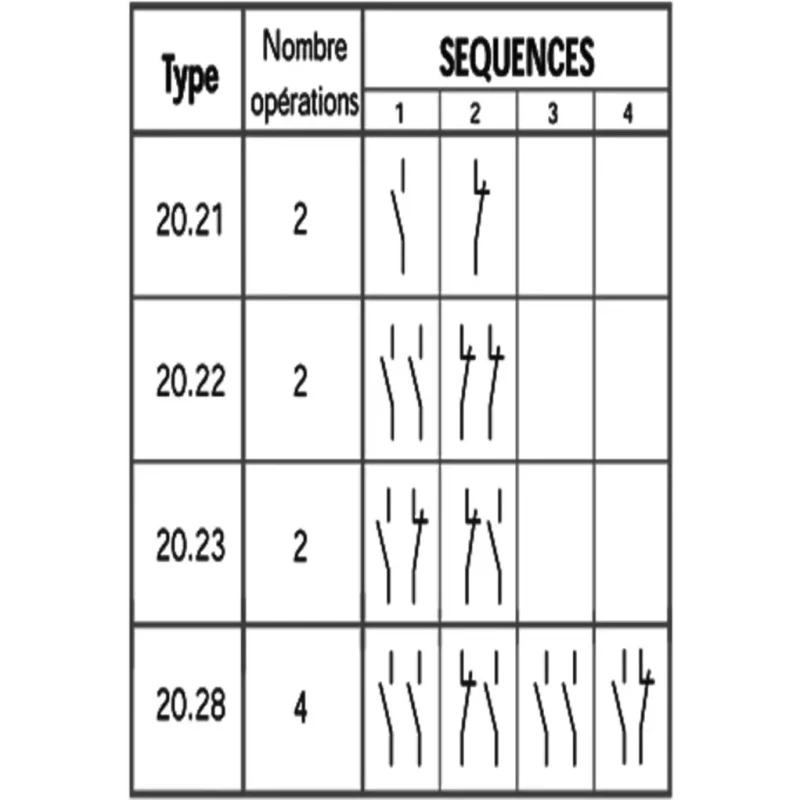

The relay supports latching functionality that allows repeated switching sequences, enhancing control flexibility. It complies with major international standards including cURus, RoHS, EN, RINA, EAC, and CE, ensuring safety and environmental compliance. Its silver alloy contact material is cadmium-free, promoting environmental safety and durability, with a rated mechanical life of 300,000 cycles.

This modular step relay is suitable for controlling blinds, shutters, and lighting circuits in corridors, bedrooms, and living rooms, especially in commercial and residential settings such as hotels and hospitals. The relay can be connected with illuminated push buttons for user-friendly operation.

Optimal performance requires proper ventilation with a recommended 9mm gap between adjacent relays for prolonged operation. Secure connections are ensured via screw terminals, allowing reliable wiring.

This relay supports latching functionality for enhanced control options. Rated for a switching current of 16A for reliable performance. Complies with cURus, RoHS, EN, RINA, EAC, and CE safety standards. Operates effectively in temperatures ranging from -40°C to +40°C.

Compact form factor fits standard DIN rail mountings. Employs silver alloy cadmium-free contacts for environmental safety. Mechanical life rated at 300,000 cycles ensuring durability. Screw terminals provide secure electrical connections.

Ideal for automation in industrial, laboratory, and commercial electrical control systems.
