STMicroelectronics Through Hole 3-Pin TRIAC 600 V Gate Trigger 1.5 V BTA20-700BWRG

STMicroelectronics BTA20-700BWRG is a 3-pin through hole TRIAC designed for efficient phase control and static switching in industrial and commercial applications. Featuring high performance glass passivated chip technology and a snubberless concept, this device optimizes surge current handling and is suitable for both inductive and resistive loads.

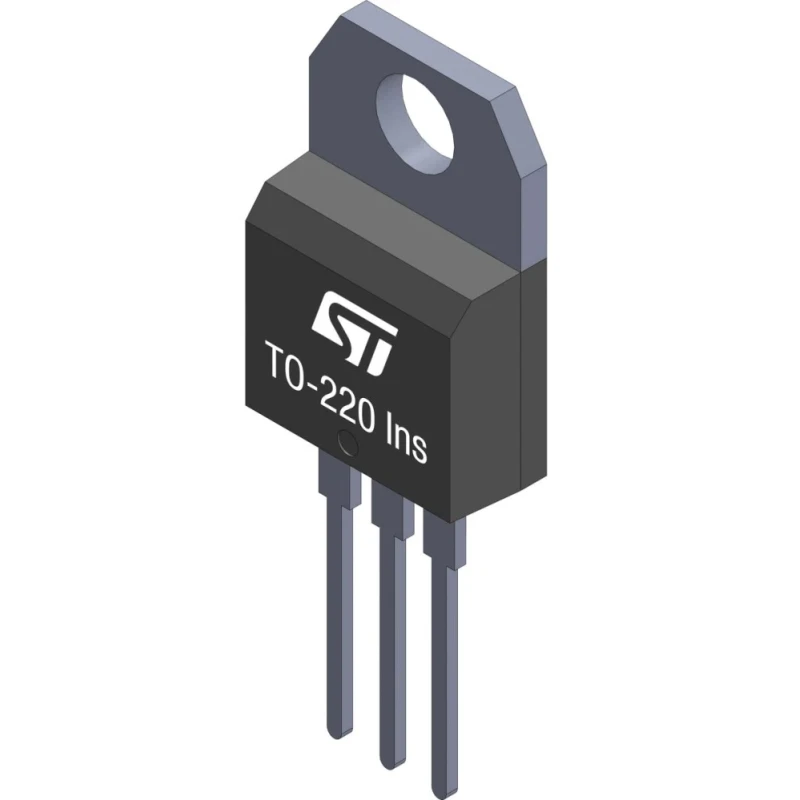

The device is encapsulated in a TO-220 package measuring 10.4 mm in length and 15.9 mm in height. It supports a repetitive peak reverse voltage and voltage rating of 600 V with an average on-state current rating of 20 A and an impressive surge current capacity of 210 A, delivering reliable performance under demanding conditions.

The BTA20-700BWRG employs a low gate trigger voltage of 1.5 V with a maximum gate trigger current of 35 mA, ensuring precise switching. The maximum holding current is specified at 75 mA. Its operating temperature range of -40°C to 125°C ensures suitability for harsh environments.

The TRIAC's internal ceramic pad provides voltage insulation rated at 2500 V rms, enhancing user safety and device durability. Its snubberless design is preferentially used in phase control applications such as light dimmers, motor speed controls, static relays, and heating controls.

This product complies with RoHS standards and is well suited for usage in industrial automation, HVAC systems, manufacturing machinery, and power control applications. High performance glass passivated chip technology for reliability.

Snubberless design suitable for inductive and resistive load phase control. Rated average on-state current of 20 A with surge current capacity of 210 A. Maximum gate trigger current of 35 mA and holding current of 75 mA.

Operating temperature range from -40°C to 125°C for versatile applications. Compact TO-220 package with length 10.4 mm and height 15.9 mm. Voltage insulated tab rated at 2500 V rms for enhanced safety. Ideal for static relays, heating regulation, motor speed control, and light dimming.

RoHS compliant and suitable for industrial, HVAC, and manufacturing environments. Explore our full selection of discrete semiconductors and TRIACs for superior power control solutions on EnvMart.
