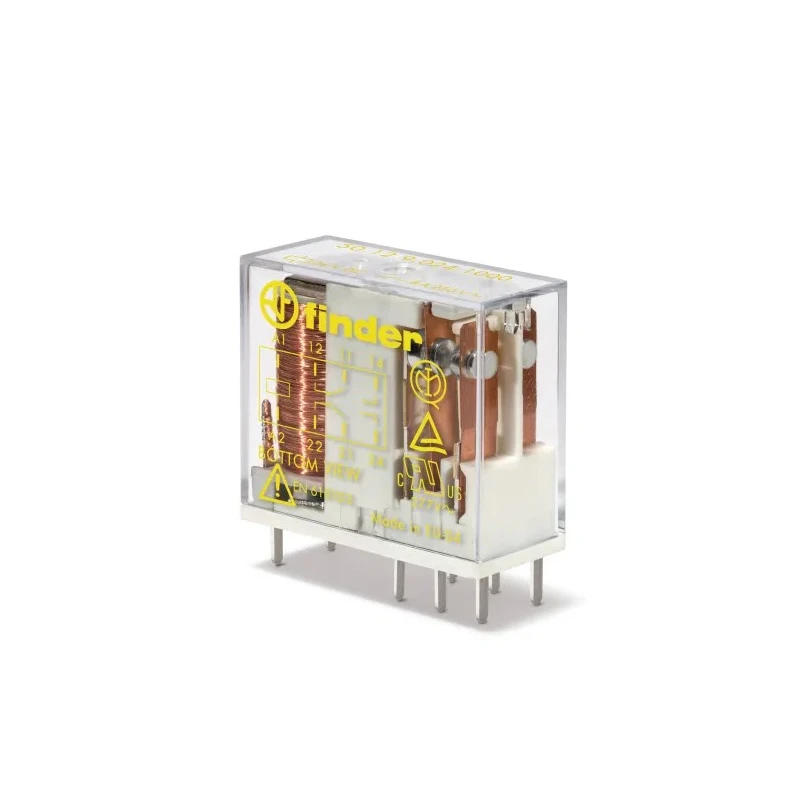

Finder PCB Force Guided Relay 2-Pole DPDT 125V DC Coil Voltage 50 Series 50.12.9.125.5000

Finder 50.12.9.125.5000 is a high-quality PCB Force Guided Relay with a 2-pole double-pole double-throw (DPDT) contact configuration designed for demanding industrial and automation applications. It features a coil voltage rated at 125V DC and belongs to the robust 50 series of safety relays, integrating forcibly guided contacts per EN 50205 type B requirements.

This relay provides high physical separation of 8 mm between adjacent contacts and ensures superior isolation with a 6 kV insulation rating between the coil and contact system, enhancing electrical safety and reliability. The contacts are constructed from a durable gold silver alloy, ensuring consistent conductivity and wear resistance over extended operational cycles.

Designed for PCB mounting, the relay comes with solder-type terminals, facilitating secure and efficient assembly within electronic circuits. Its dimensions (29 mm length, 25 mm height, and 12.4 mm depth) allow compact placement in control panels and automation modules. Operating within a wide temperature range from -40°C to +70°C, the product is suitable for various industrial environments.

The coil resistance stands at 22.3 Ω with a coil power consumption of 700 mW, balancing power efficiency with operational reliability. The relay is flux proof rated RT II, supporting use in automated soldering processes without degradation.

The model has obtained multiple industry approvals including IMQ, TUV certifications, and is UL recognized for use in Canada and the United States, ensuring compliance with major safety standards.

Features forcibly guided contacts compliant with EN 50205 type B standards. Designed for PCB mounting with solder terminals for secure installation. Wide operating temperature range from -40°C to 70°C. High coil to contact insulation voltage of 6 kV for robust safety.

Durable gold silver alloy contacts for reliable conductivity. Compact dimensions enable seamless integration into control circuits. Coil resistance of 22.3 Ω and power rating of 700 mW ensure efficient operation. Flux proof rating RT II supports soldering processes.

Approvals include IMQ, TUV, and UL recognition for North America.

This Finder Force Guided Relay is ideal for industrial automation, electrical control systems, and safety applications in manufacturing, HVAC, and process control industries. Browse EnvMart’s electronics & electrical category for compatible relays and signal conditioning components to optimize your control assemblies.
