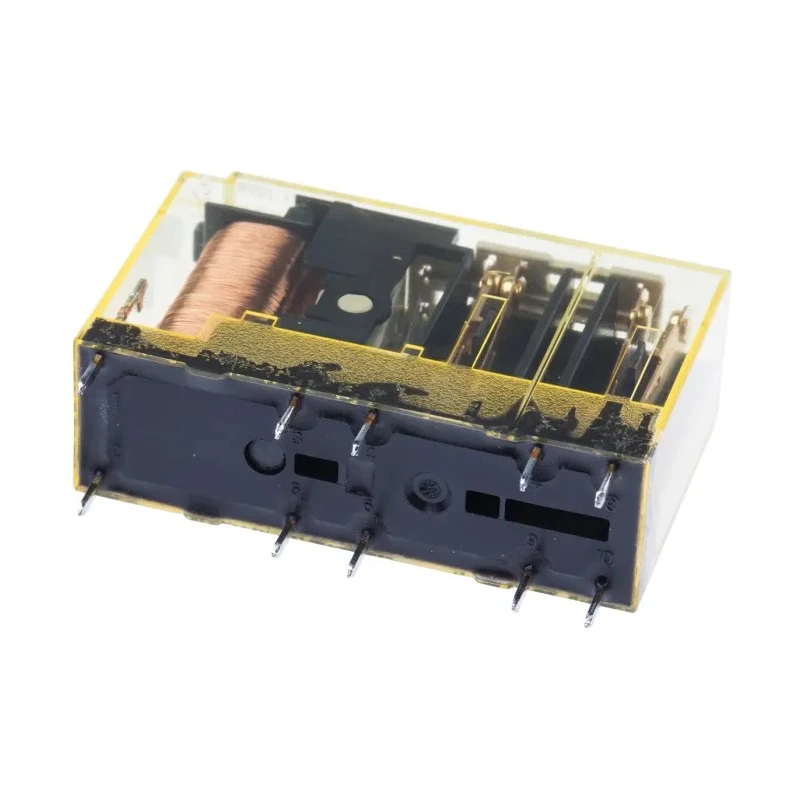

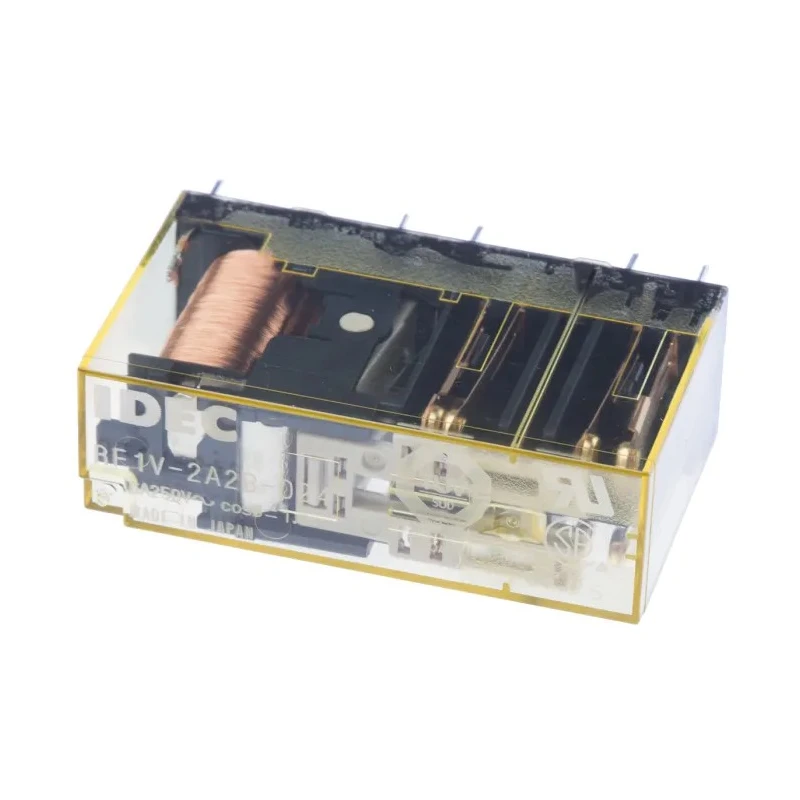

Idec PCB Force Guided Relay 4-Pole DPDT Silver Alloy Contact Material 24V DC Coil Voltage RF1V-2A2B-D24
Specifications
| Country of Origin | India |
|---|---|
| Brand | Idec |
| Height | 24mm |
| Length | 40mm |
| Model | RF1V-2A2B-D24 |
| Depth | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RF1V |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Number of Poles | 4 |
| Coil Resistance | 1.6kΩ |
| Coil Power | 360mW |
| Isolation Coil To Contact | 4kV ac |
Key Features
- Features a force guided contact mechanism ensuring safety compliance.
- Equipped with a 24V DC coil voltage and low coil power consumption of 360mW.
- Constructed with silver alloy contact material for enhanced conductivity and durability.
- Compact dimensions measure 40mm length, 24mm height, and 13mm depth.
- Designed to operate reliably between -40°C to 85°C ambient temperatures.
- Includes PCB terminal type mounting for easy installation on printed circuit boards.
- Isolation between coil and contact rated at 4kV AC for electrical safety.
- Fast response time with maximum 8 ms switching speed improves operational efficiency.
Product Description
Idec RF1V-2A2B-D24 PCB Force Guided Relay is a 4-pole DPDT relay designed for industrial and automation safety circuits with a 24V DC coil voltage and 360mW coil power.
This relay series utilizes a force guided contact mechanism ensuring precise and safe switching operations in conjunction with interlock switches, light curtains, and emergency stop switches.
The device is constructed with silver alloy for contact material, providing excellent conductivity and durability under rigorous use. Compact and lightweight, the relay measures 40mm in length, 24mm in height, and 13mm in depth, facilitating easy PCB terminal mounting for integration into circuit boards.
The coil to contact isolation withstands up to 4kV AC, assuring robust electrical insulation and operator safety. Operating reliably across a wide temperature range from -40°C up to 85°C, this relay is built for harsh industrial environments where temperature extremes are common.
Fast switching times of up to 8 ms reduce operational delays and improve system responsiveness. Its high shock resistance and finger-safe design allow for use in industrial, manufacturing, automation, and control applications requiring dependable performance.
Features a force guided contact mechanism ensuring safety compliance. Equipped with a 24V DC coil voltage and low coil power consumption of 360mW. Constructed with silver alloy contact material for enhanced conductivity and durability.
Compact dimensions measure 40mm length, 24mm height, and 13mm depth. Designed to operate reliably between -40°C to 85°C ambient temperatures. Includes PCB terminal type mounting for easy installation on printed circuit boards.
Isolation between coil and contact rated at 4kV AC for electrical safety. Fast response time with maximum 8 ms switching speed improves operational efficiency. Suitable for expanding outputs in safety relay modules and safety controllers.
Built with high shock resistance and reliability for demanding industrial environments.
This Idec RF1V series relay is ideal for industrial automation, laboratory equipment, safety controllers, manufacturing plants, and other electrical control systems requiring reliable Force Guided Relay operation.
Explore more high-quality relays and contactors in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a coil voltage of 24V DC.
The relay features a DPDT (Double Pole Double Throw) contact configuration with 4 poles.
It measures 40mm in length, 24mm in height, and 13mm in depth.
The maximum operating temperature is 85°C.
The isolation between the coil and contact is rated at 4kV AC.
The coil power consumption is 360mW.
The contacts are made from silver alloy, which enhances conductivity and durability.
The minimum operating temperature is -40°C.
It includes a PCB terminal type mounting for easy installation on printed circuit boards.
The maximum switching speed is 8 ms, which improves operational efficiency.
This relay is suitable for industrial automation, safety controllers, and manufacturing plants requiring reliable operation.
This model belongs to the RF1V series of relays.
