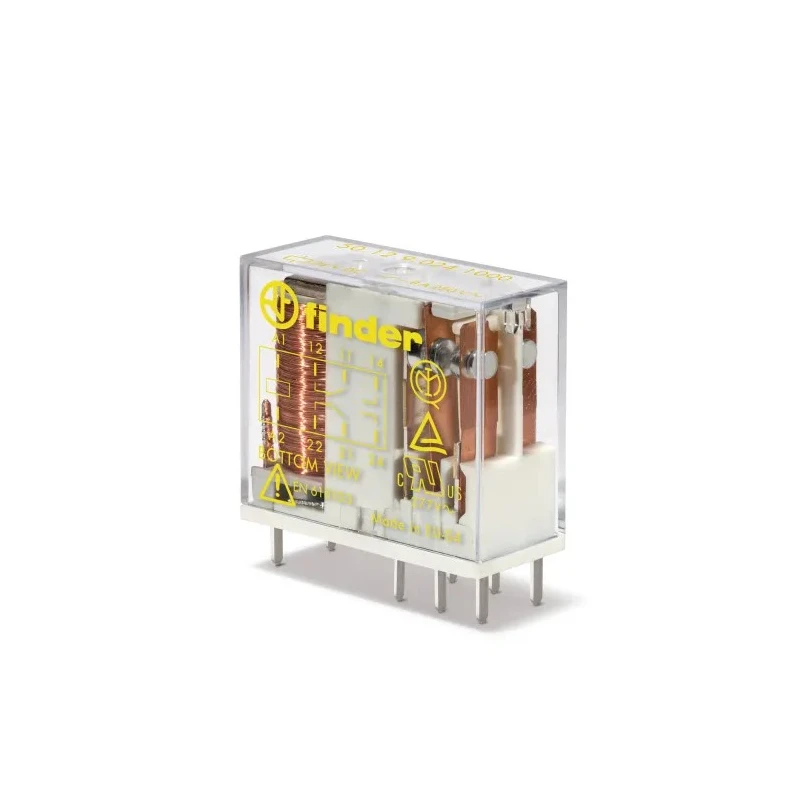

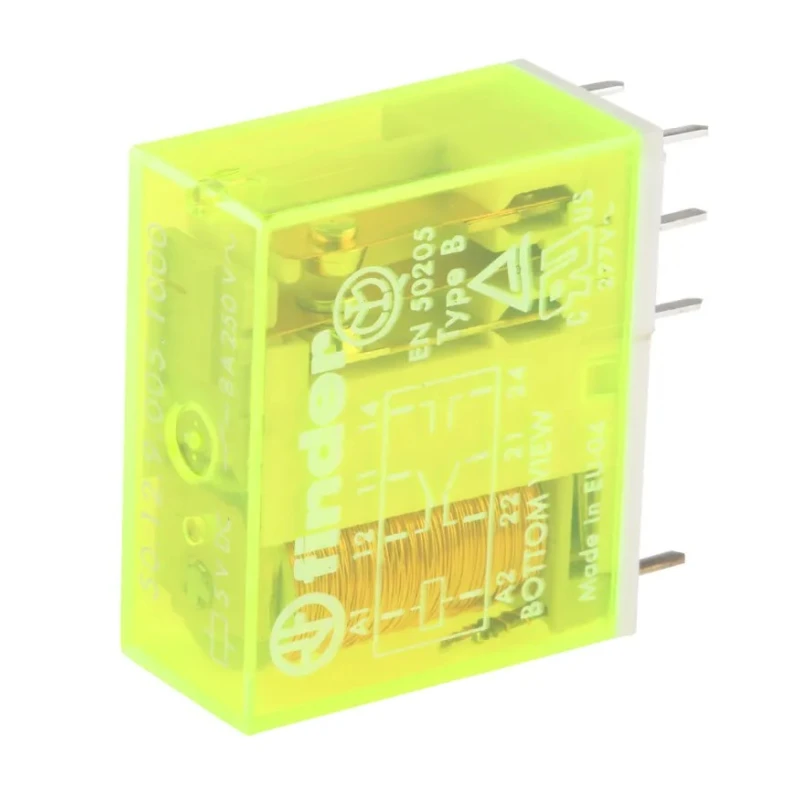

Finder Force Guided Relay PCB Mount 5V DC Coil Voltage 2-Pole DPDT Silver Alloy Contacts 50.12.9.005.1000
Specifications
| Country of Origin | Spain |
|---|---|
| Brand | Finder |
| Height | 25mm |
| Length | 29mm |
| Depth | 12.4mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | 50 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Number of Poles | 2 |
| Coil Resistance | 35Ω |
| Coil Power | 700mW |
| Isolation Coil To Contact | 6kV |
Key Features
- Operates at 5V DC coil voltage with a coil power of 700mW.
- Features 2 poles with DPDT contact configuration providing double-pole double-throw switching.
- Silver alloy contacts ensure enhanced conductivity and durability.
- Provides high switching current capacity up to 8A suitable for medium-duty applications.
- Offers 6kV isolation between coil and contacts for electrical safety.
- Designed for through-hole solder-terminal PCB mounting.
- Compact size with dimensions 29mm length, 25mm height, and 12.4mm depth.
- Operates reliably in temperatures ranging from -40°C to +70°C.
Product Description
Finder 50.12.9.005.1000 Force Guided Relay offers precise and reliable switching functionality with its PCB mount design tailored for various industrial and electronic applications.
This relay features a 5V DC coil voltage with a coil power consumption of 700mW, making it energy-efficient. It comprises 2 poles configured as DPDT (Double Pole Double Throw), allowing multiple circuit switching capabilities. Silver alloy contact material ensures excellent electrical conductivity and long-lasting durability even under frequent switching conditions.
The relay supports a high switching current capacity of 8A, accommodating medium-duty switching loads and compatible with both AC (up to 400V) and DC (up to 125V) voltages. The coil to contact isolation is rated at 6kV, providing robust electrical isolation for enhanced safety and signal integrity.
Physically, the relay is compact, measuring 29mm in length, 25mm in height, and 12.4mm in depth, and mounts securely through solder terminals on PCBs. It is engineered to operate across a wide temperature range from -40°C to +70°C, ensuring reliable performance in diverse environmental conditions.
The relay adheres to EN61810-3 standards for forced guided contacts, making it suitable for safety-critical applications. Typical industrial and commercial uses include escalators and lift control systems, hoists, cranes, medical and dental equipment, carousel warehouse systems, and wood-processing machinery.
Operates at 5V DC coil voltage with a coil power of 700mW. Features 2 poles with DPDT contact configuration providing double-pole double-throw switching. Silver alloy contacts ensure enhanced conductivity and durability.
Provides high switching current capacity up to 8A suitable for medium-duty applications. Offers 6kV isolation between coil and contacts for electrical safety. Designed for through-hole solder-terminal PCB mounting. Compact size with dimensions 29mm length, 25mm height, and 12.4mm depth.
Operates reliably in temperatures ranging from -40°C to +70°C. Meets EN61810-3 standards for forced guided contacts. Suitable for escalators, lifts, hoists, cranes, and medical equipment applications. Explore EnvMart’s extensive range of electrical relays and contactors for industrial and commercial needs with quality assurance and detailed technical support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a 5V DC coil voltage with a coil power consumption of 700mW.
It features a DPDT (Double Pole Double Throw) contact configuration, allowing for multiple circuit switching capabilities.
The relay supports a high switching current capacity of up to 8A, suitable for medium-duty applications.
The relay measures 29mm in length, 25mm in height, and 12.4mm in depth.
It is designed for through-hole solder-terminal PCB mounting.
This relay offers 6kV isolation between the coil and contacts for enhanced electrical safety.
It operates reliably in temperatures ranging from -40°C to +70°C.
The contacts are made of silver alloy, which ensures enhanced conductivity and durability.
It meets EN61810-3 standards for forced guided contacts, making it suitable for safety-critical applications.
Typical applications include escalators, lift control systems, hoists, cranes, medical equipment, and wood-processing machinery.
The coil resistance is rated at 35Ω.
The relay is manufactured in Spain.
