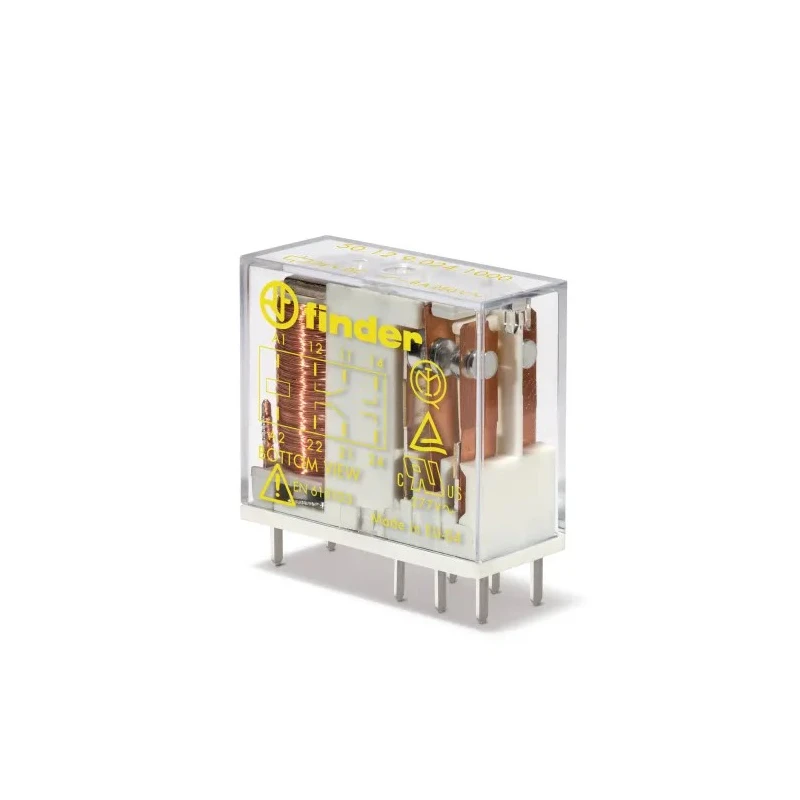

Finder PCB Force Guided Relay 2-Pole DPDT 110V DC Coil Voltage 50.12.9.110.1000
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Height | 25mm |
| Length | 29mm |
| Depth | 12.4mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | 50 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Number of Poles | 2 |
| Coil Resistance | 17.25Ω |
| Coil Power | 700mW |
| Isolation Coil To Contact | 6kV |
Key Features
- Features a double pole double throw (DPDT) contact configuration suitable for versatile switching applications.
- Operates reliably with a 110V DC coil voltage and 700mW coil power consumption.
- Constructed with silver alloy contacts for high conductivity and durability.
- Exhibits 6kV isolation between coil and contacts ensuring excellent electrical safety.
- Suitable for industrial applications such as escalators, medical equipment, hospital lifts, hoists, cranes, and wood-processing machines.
- Designed to endure 10 million mechanical cycles and 100,000 electrical switching cycles for long service life.
- Operates effectively within a temperature range from -40°C to 70°C.
Product Description
Finder 50.12.9.110.1000 PCB Force Guided Relay is a high-performance relay designed for PCB mounting in industrial and automation applications. This force guided relay features a 2-pole double pole double throw (DPDT) contact configuration and operates with a coil voltage of 110V DC consuming 700mW of power. The relay has a robust design with silver alloy contacts that provide superior electrical conductivity and long-lasting performance.
Its compact form factor measures 29mm in length, 25mm in height, and 12.4mm in depth, making it ideal for space-constrained printed circuit board layouts. The relay is engineered to IEC EN61810-3 standards and offers 6kV isolation voltage between the coil and contacts, enhancing operational safety by minimizing electrical interference risks.
Built for medium duty switching, particularly with DC loads, it supports high switching currents up to 15A and is suitable for demanding industrial settings. The relay's mechanical lifespan extends up to 10 million cycles with an electrical lifespan of 100,000 cycles, ensuring reliable and durable operation in various automated equipment.
Typical industrial and commercial applications include escalator safety controls, medical and dental machinery, hospital lift mechanisms, hoist and crane operations, and automation in wood-processing machinery. Operating temperature scalability from -40°C to 70°C allows deployment in diverse environmental conditions.
Double pole double throw (DPDT) contact configuration. 110V DC coil voltage with 700mW power consumption. Silver alloy contacts for high performance conduction. 6kV coil-to-contact isolation for enhanced electrical safety.
Compact PCB mount suitable dimensions: 29×25×12.4 mm (L×H×D). Long mechanical and electrical lifespans: 10 million and 100,000 cycles respectively. Wide operating temperature range: -40°C to 70°C. Robust relay for medium-duty DC switching applications.
This relay is a critical component in industrial automation, construction machinery, hospital equipment, and electrical control systems requiring dependable switching reliability and safety compliance. It is a trusted choice for OEMs and system integrators demanding certified quality and operational excellence.
Explore the full range of Force Guided Relays and related electrical components available through our EnvMart platform for comprehensive automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a coil voltage of 110V DC.
It features a double pole double throw (DPDT) contact configuration.
It supports high switching currents up to 15A, making it suitable for medium duty DC switching applications.
The relay measures 29mm in length, 25mm in height, and 12.4mm in depth.
The coil power consumption is 700mW.
It exhibits a 6kV isolation voltage, enhancing electrical safety.
It operates effectively within a temperature range from -40°C to 70°C.
This relay is designed to endure up to 10 million mechanical cycles and 100,000 electrical switching cycles.
It is designed for PCB mounting, making it suitable for space-constrained applications.
The contacts are constructed from silver alloy, which provides high conductivity.
Typical applications include escalator safety controls, medical equipment, hospital lifts, hoists, cranes, and automation in wood-processing machinery.
It is engineered to comply with IEC EN61810-3 standards, ensuring operational safety and reliability.
