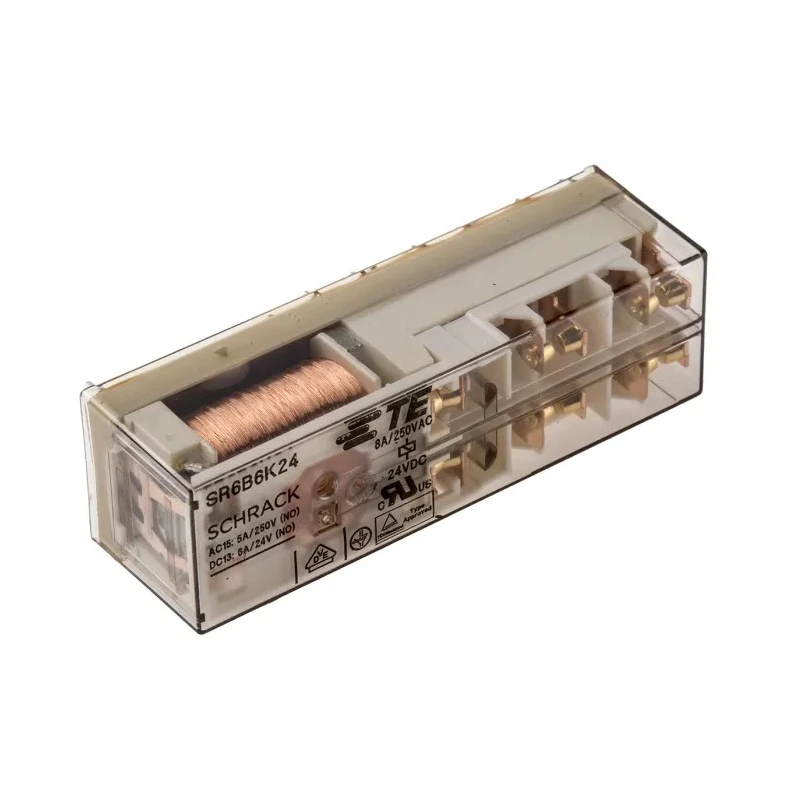

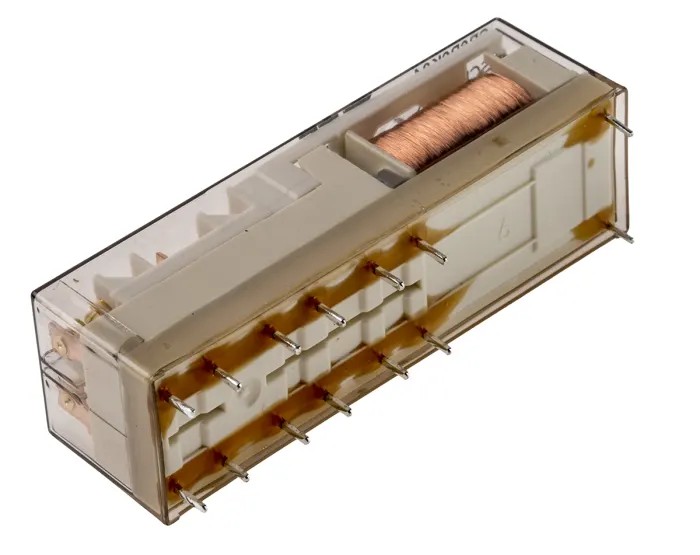

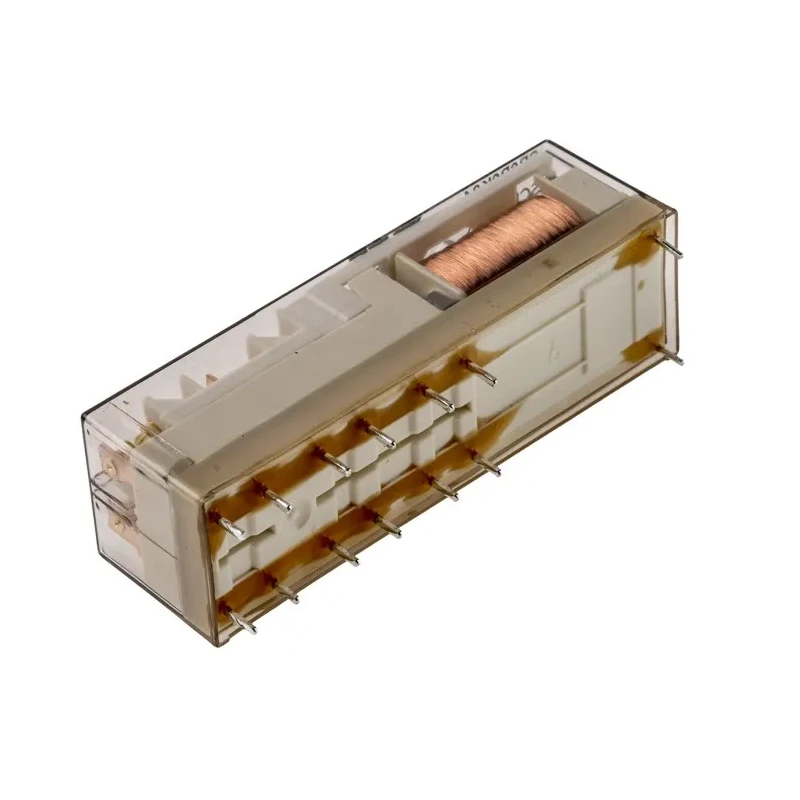

TE Connectivity PCB Force Guided Relay 24V DC Coil Voltage 6-Pole SR6B6K24
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 16.5mm |
| Length | 55mm |
| Model | SR6B6K24 |
| Depth | 16.5mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | SR6 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Number of Poles | 6 |
| Coil Resistance | 720Ω |
| Coil Power | 800mW |
| Isolation Coil To Contact | 4kVrms |
Key Features
- The relay features 6 poles, supporting various contact configurations.
- It operates with a coil resistance of 720Ω and coil power of 800mW.
- Ambient operating temperature range is from -25°C to 70°C.
- Contacts are gold plated to ensure excellent conductivity and corrosion resistance.
- The relay has a PCB mount type with solder terminals for secure installation.
- Isolation voltage from coil to contact is rated at 4kVrms, ensuring high electrical isolation.
- Complies with safety relay standards, suitable for automation, electrical, and control systems.
Product Description
TE Connectivity SR6B6K24 PCB Force Guided Relay 6-Pole with 24V DC coil voltage is a reliable industrial relay designed for PCB mounting with solder terminals. This relay is part of the SR6 series, known for its safety-oriented force guided contacts compliant with EN50205 standards. It operates with a coil resistance of 720Ω and a coil power of 800mW, supporting control signal isolation and switching in complex automation and electrical control circuits.
The relay features 6 poles and gold plated contacts to ensure longevity and robust electrical performance. Its isolation voltage of 4kVrms between the coil and contacts guarantees safe operation even under high electrical stress. The compact size with dimensions of 55mm length, 16.5mm height, and 16.5mm depth makes it suitable for space-conscious PCB designs commonly used in manufacturing equipment, HVAC control systems, and industrial automation.
The device operates efficiently within an ambient temperature range from -25°C to 70°C, making it suitable for varied environmental conditions encountered in laboratories, industrial settings, and commercial equipment. The solder terminal type ensures strong and durable electrical connections for long-term reliability.
This force guided relay is ideal for critical switching applications demanding safety, reliability, and precise operation, including monitoring systems, industrial machinery controls, and safety circuits. Its construction supports compliance with safety relay requirements, enhancing operational security.
The relay features 6 poles configured for versatile application needs. Gold plated contact material improves conductivity and prevents corrosion. High coil isolation voltage of 4kVrms ensures electrical safety and noise immunity.
Compact PCB mount form factor with solder terminals for easy integration. Wide operating temperature range from -25°C to 70°C suits diverse environments. Low coil power consumption of 800mW promotes energy-efficient operation.
Robust design suitable for automation, electrical, laboratory, and commercial use cases.
Explore the TE Connectivity range for additional variants of Force Guided Relays to meet specific application requirements. EnvMart offers a comprehensive selection of relays and signal conditioning devices for your industrial and electrical automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC.
The maximum operating temperature for the SR6B6K24 is 70°C.
This relay features 6 poles, allowing for various contact configurations.
The coil resistance of the SR6B6K24 is 720Ω.
The relay uses solder terminals for secure installation on a PCB.
The isolation voltage from coil to contact is rated at 4kVrms.
The coil power consumption is 800mW.
The dimensions are 55mm in length, 16.5mm in height, and 16.5mm in depth.
The relay is manufactured in the Czech Republic.
This model supports PCB mounting.
The contacts are made of gold plated material to enhance conductivity and corrosion resistance.
It is suitable for automation, electrical control systems, and critical switching applications that require safety and reliability.
