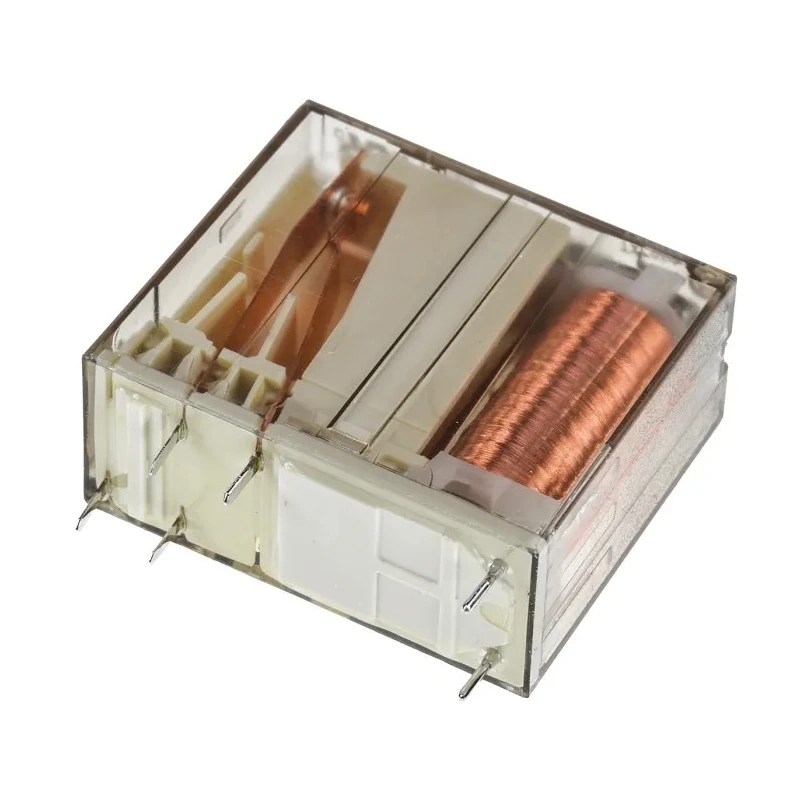

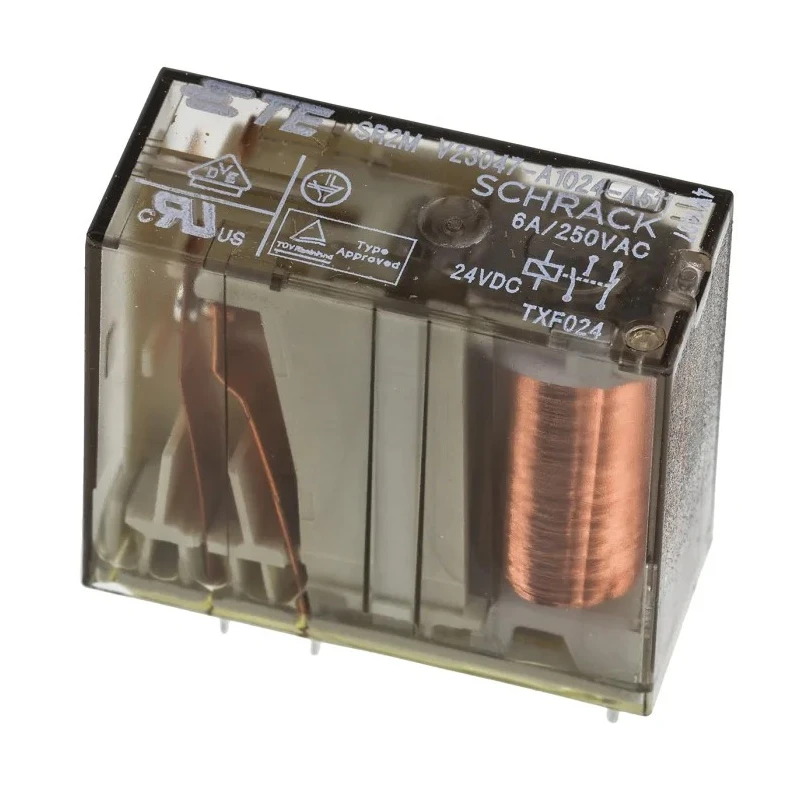

TE Connectivity PCB Force Guided Relay 24V DC Coil Voltage 2-Pole 1 NO/1 NC V23047-A1024-A511

TE Connectivity V23047-A1024-A511 PCB Force Guided Relay is a precision electrical component engineered for industrial and automation applications requiring reliable contact switching. Operating on 24V DC coil voltage, this relay features a 2-pole configuration with 1 normally open (NO) and 1 normally closed (NC) contact arrangement, making it suitable for safety and control circuits where force guided contact status is critical.

The device is designed for PCB mounting with solder terminals for secure installation. It draws only 700mW coil power and has a coil resistance of 823Ω, ensuring energy-efficient coil activation within its specified working voltage.

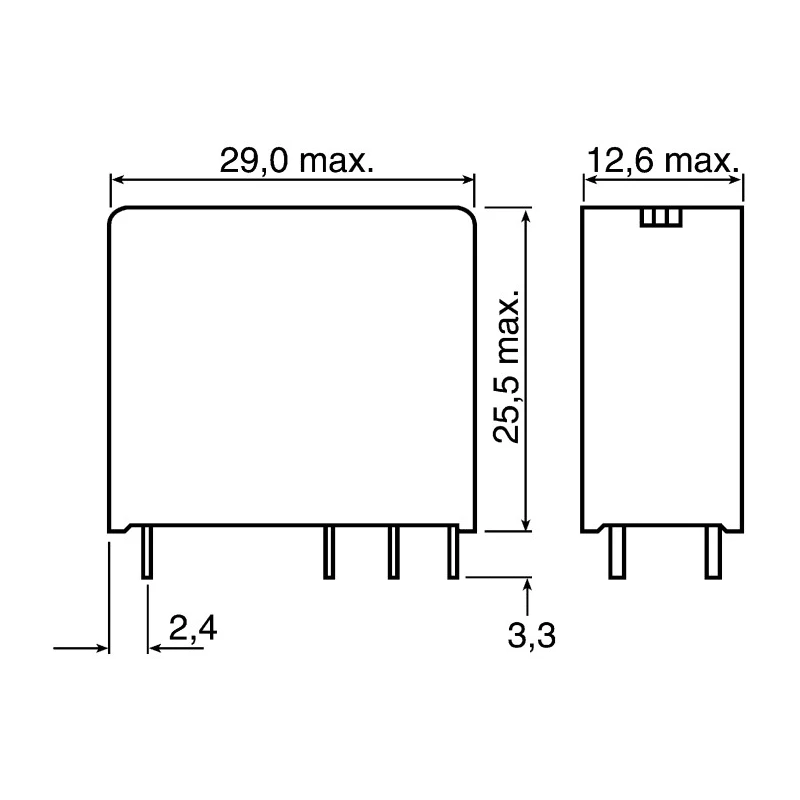

Its operating temperature range from -25°C to 70°C allows usage in diverse industrial environments, providing robust operation under varying thermal conditions. The relay’s compact dimensions (29mm length, 25.5mm height, and 12.6mm depth) facilitate integration into compact assemblies where space is limited.

The isolation voltage rating of 4kVrms between coil and contact offers enhanced electrical safety and noise immunity. Silver alloy material for contacts guarantees consistent conductivity, minimal wear, and extended operational life, crucial for reliable switching performance over time.

This relay is from the SR2M series, recognized for washproof reed relay technology with low contact noise and low thermo-voltage, helpful in precision applications. It also supports installation in pushdown switches with a 2.54 mm pitch, enabling various industrial assembly methods.

Common applications include safety relays, industrial manufacturing control systems, process automation, and other electrical circuits requiring confirmed contact state feedback. The product is made in the Czech Republic, ensuring high manufacturing standards.

Designed for PCB mounting with solder-type terminals. Coil resistance of 823Ω and coil power consumption of 700mW. Operates efficiently within -25°C to 70°C temperature range. Compact dimensions: length 29mm, height 25.5mm, depth 12.6mm.

High isolation voltage of 4kVrms between coil and contacts. Durable silver alloy contact material ensures long electrical performance. Part of the SR2M series known for low contact noise and reliable operation. Suitable for industrial and automation applications requiring force guided relay functionality.
