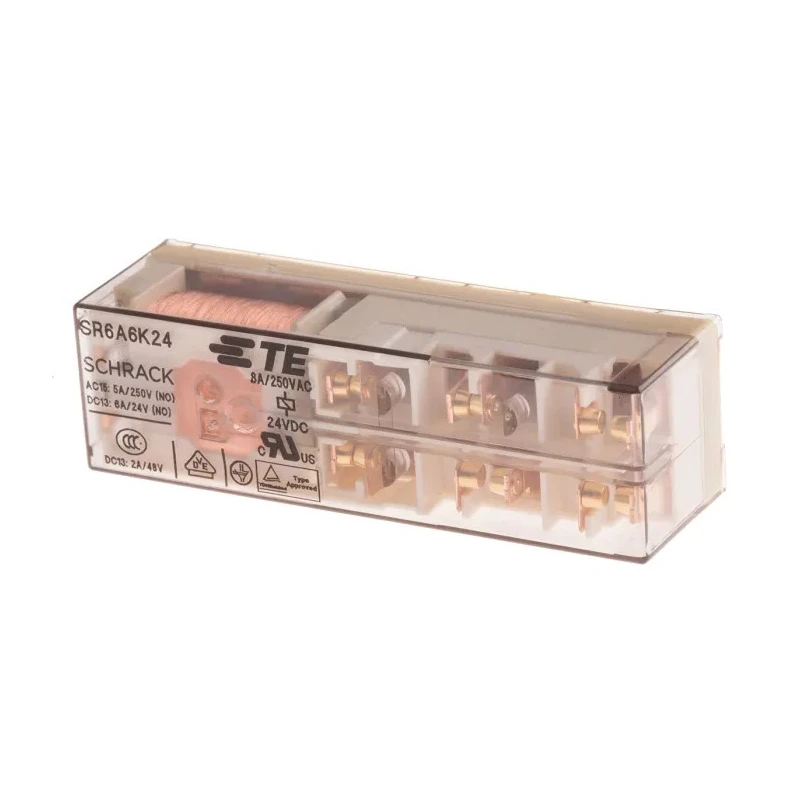

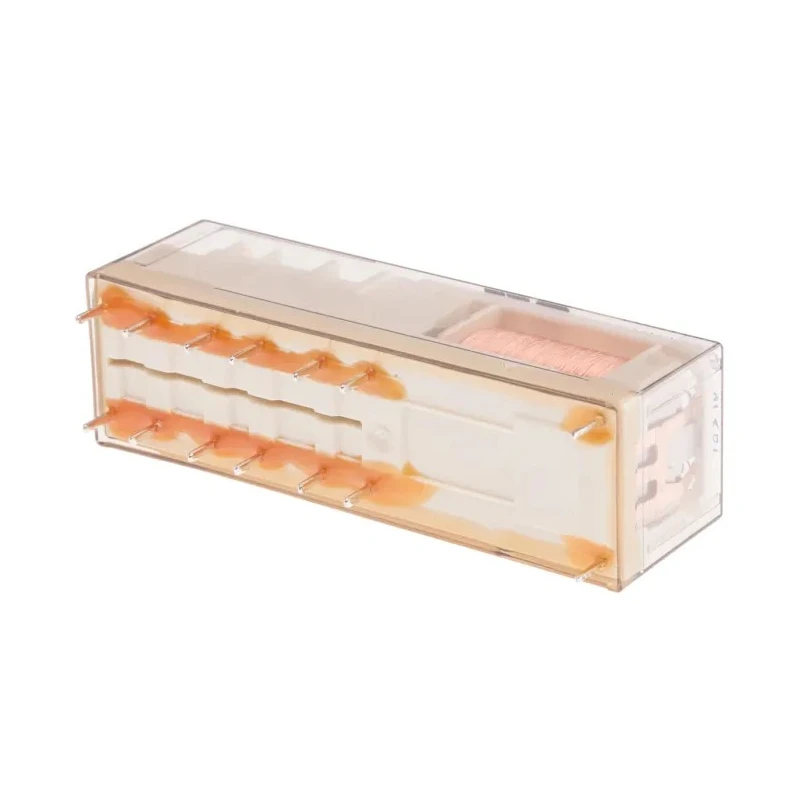

TE Connectivity Force Guided Relay PCB Mount 6-Pole 6PDT Gold Plated Contacts 24V DC Coil SR6A6K24

TE Connectivity SR6A6K24 is a high-performance Force Guided Relay designed for PCB mounting, featuring a 24V DC coil and 6-pole 6PDT contact configuration. This relay is engineered to deliver reliable and safe electrical switching with gold plated contacts to minimize contact resistance and corrosion, making it ideal for industrial and electrical automation applications.

The compact relay measures 55mm in length, with a height and depth of 16.5mm, ensuring it fits efficiently within tight PCB layouts. Its coil resistance is precisely 720 ohms, drawing just 800 milliwatts of power, which contributes to efficient energy use.

This relay operates under a wide ambient temperature range from -25°C up to 70°C, accommodating various industrial environments. The relay provides robust electrical isolation, withstanding up to 4kVrms between the coil and contacts for enhanced operational safety.

The force guided contact design complies with EN50205 safety standards, guaranteeing mechanical interlock between contacts. This makes it suitable for safety-related applications where safe and reliable switching is critical. As part of the SR6 series, this relay caters to demanding industrial automation, control solutions, and safety relay systems.

Designed for PCB mounting with solder terminals for secure connections. Gold plated contacts ensure high conductivity and corrosion resistance. Coil resistance of 720 ohms with a power consumption of 800 milliwatts. Operates reliably within a temperature range of -25°C to 70°C.

Compact dimensions measuring 55mm length, 16.5mm height, and 16.5mm depth. Provides high isolation voltage of 4kVrms between coil and contacts. Force guided contacts conform to EN50205 standards for enhanced safety relay operation.

Part of the SR6 series, suitable for industrial automation and control circuits.

This relay is ideal for use in industrial, manufacturing, electrical control, and safety monitoring systems that require dependable switching with built-in safety mechanisms. Its PCB mount design suits automated machinery and production line equipment integration.
