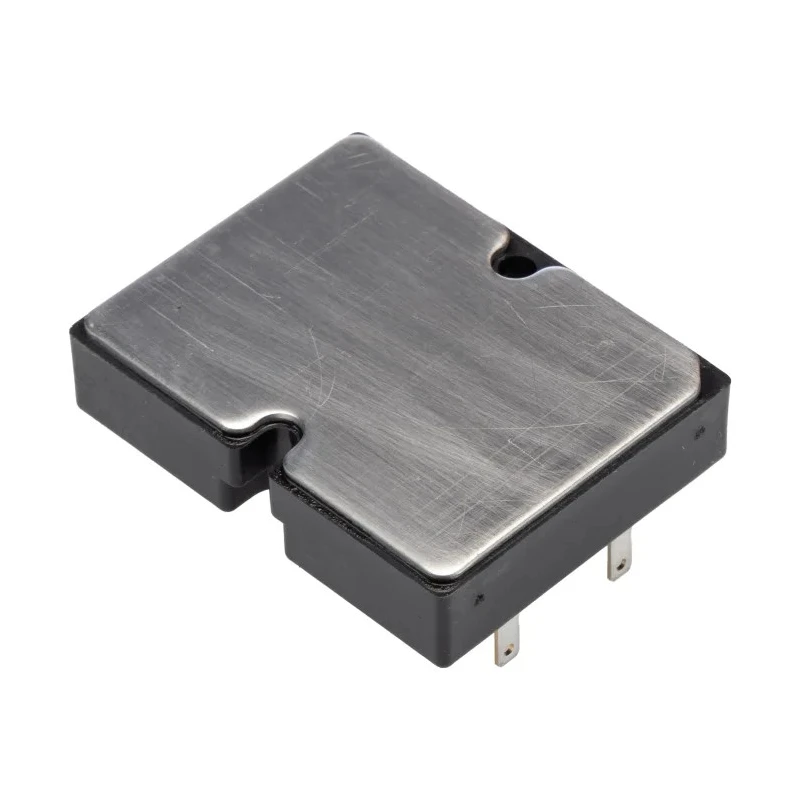

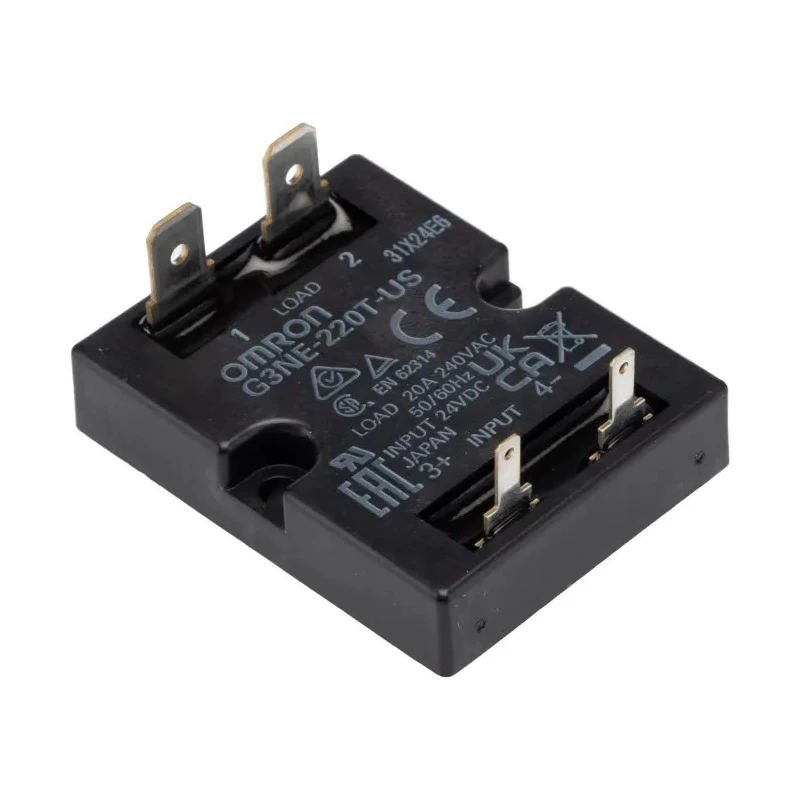

Omron Solid State Relay 20 A Load, Screw Mount, 264 V ac Load, 28.8V dc Control G3NE

Omron G3NE-220T-US DC24 solid state relay is a compact, low-cost SSR designed for industrial and automation use, rated for 20 A load currents. It supports a load voltage range of 75 to 264 V ac and control voltages from 19.2 V dc to 28.8 V dc. It features an aluminium PCB and power elements with a built-in varistor that protects against external surges. The relay comes with phototriac zero cross function for smooth switching.

The relay input voltage rating at 25°C ambient is between 19.2 and 28.8 V dc with an input impedance of 1.6 kΩ ±20%. It requires a maximum operating voltage of 19.2 V dc to operate and must release at minimum 1 V dc. The output is a triac type configured as SPST with tab terminals for both input and output connections, simplifying mounting and wiring.

This G3NE series model offers a rated output load of 20 A at voltages between 100 and 240 V ac, suitable for demanding industrial loads. Without heat sink, the relay supports up to 5 A load current at 40°C, and with a dedicated heat sink, it can handle up to 20 A load. It also withstands an inrush current of 220 A (60 Hz, 1 cycle).

Key features include an output ON voltage drop of maximum 1.6 V RMS, low leakage current (2 mA max at 100 V ac, 5 mA max at 200 V ac), and robust vibration resistance and shock resistance designed for industrial environments. The relay is suitable for applications requiring reliable on-off control under harsh conditions, including industrial machinery, HVAC systems, and automation equipment.

The device has a compact size with dimensions of 47.5 mm length, 37.5 mm width, and 11.5 mm height, and weighs approximately 37 grams. It conforms to international quality standards, including CE, CSA, and UR, ensuring safety and reliability in industrial installations.

Mounting is achieved through a screw mount style for easy installation and secure fixing. This relay is an ideal choice for engineers and technicians seeking high-performance solid state relays for various control applications.

Set contains 1 Pc Omron G3NE-220T-US DC24 Solid State Relay. Browse further in the Solid State Relays category at EnvMart for more options and technical solutions. Operates at a maximum load voltage of 264 V ac. Control voltage ranges between 19.2 V dc and 28.8 V dc for reliable performance.

Compact design with a height of 11.5 mm, length of 47.5 mm, and width of 37.5 mm. Features a zero cross phototriac output for noise reduction during switching. Provides an on-off switching function with IP20 protection rating.

Supports a wide operating temperature range from -30°C to 80°C. Designed with an aluminium PCB and built-in varistor for surge absorption. Equipped with tab terminals for quick connect input and output connections. Conforms to CE, CSA, and UR standards for quality and safety.
