Crydom DRA1 Series Solid State Relay, 3 A Load, 60 V dc Load, 32V dc Control, DIN Rail Mount DRA1

Crydom DRA1 Series Solid State Relay model DRA1 is a high-quality industrial relay designed to control low-voltage DC loads safely and efficiently. Its maximum load current rating of 3 A and load voltage of up to 60 V dc make it ideal for automation and control applications in manufacturing, communication devices, and lighting systems.

This relay features a DIN rail mount type for quick and secure installation in electrical panels without special tooling. Its zero cross switching function ensures reduced electrical noise, protecting sensitive circuits and enhancing operational stability.

The device supports control voltages from 3 V dc up to 32 V dc and operates reliably in extreme temperature conditions ranging from -40°C to +80°C, suitable for harsh industrial and laboratory environments. The MOSFET output type provides excellent performance with very low on-state resistance, improving energy efficiency.

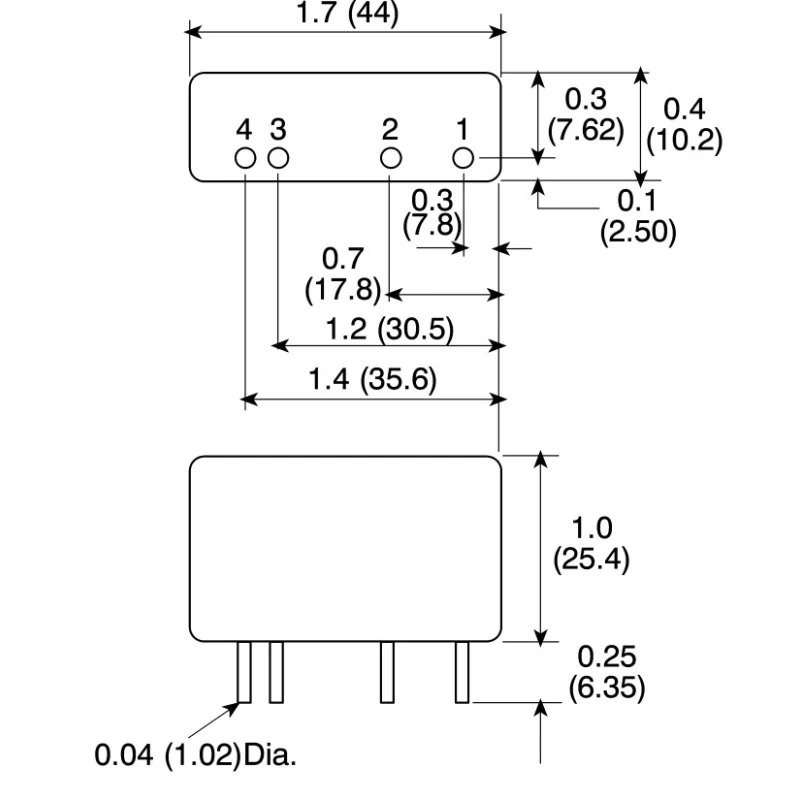

Designed for durability, the relay uses a thermally conductive epoxy housing resistant to mechanical impact and abrasion. It is compact, with a height of 25.4 mm and length of 43.1 mm, allowing integration in tight spaces. The inclusion of cage-style screw terminals facilitates straightforward wiring, optimizing installation time and reliability.

This solid state relay from Crydom, manufactured in Mexico, finds applications in electrical automation, control systems, HVAC, and communication equipment, offering long-term reliability without mechanical wear.

This relay supports a maximum load current of 3 amperes for steady operation. It is designed for DIN rail mounting to simplify installation in industrial control panels. Wide voltage compatibility with a maximum load voltage of 60 V dc ensures flexibility.

Operates efficiently with control voltage ranging from 3 V dc minimum to 32 V dc maximum. Offers zero cross switching function to minimize electrical noise during operation. Operates reliably within a temperature range of -40°C to +80°C for demanding environments.

Cage-style screw terminals provide secure and easy wiring connections. Compact size with dimensions of 25.4 mm in height and 43.1 mm in length makes it suitable for space-constrained setups. Uses MOSFET output type ensuring low on-state resistance and reduced energy loss.

Constructed with thermally conductive epoxy housing for resistance to impact and abrasion. Lightweight at approximately 36.4 grams, reducing strain on mounting structures. Explore more in our Solid State Relays category for reliable industrial and laboratory control components.
