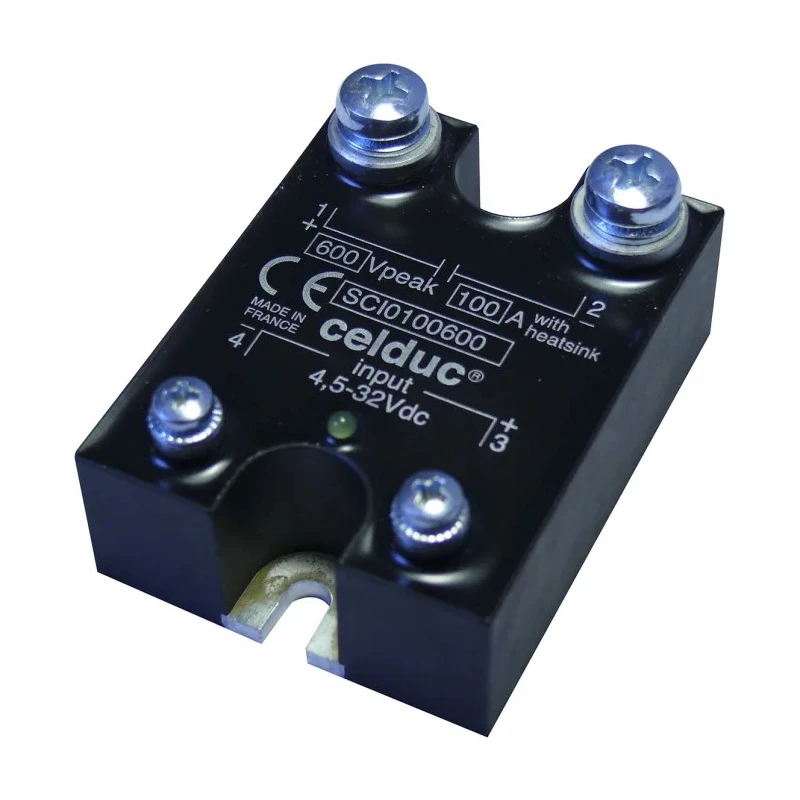

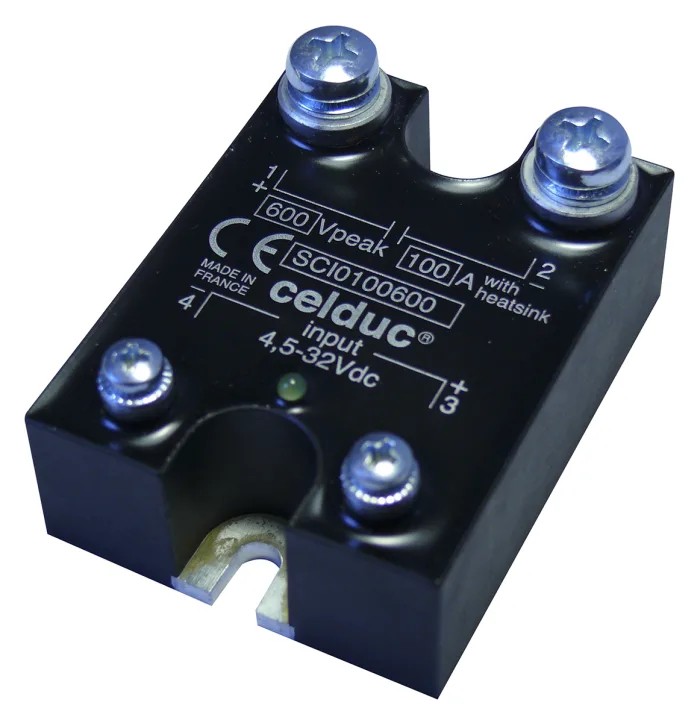

Celduc SCI Series Solid State Relay 100 A Load 600 V Load DIN Rail Mount Thyristor Output SCI0100600

Celduc SCI Series Solid State Relay model SCI0100600 is a robust electronic switching device engineered to handle a maximum load current of 100 A and a maximum load voltage of 600 V. Featuring a DIN rail mount and thyristor output, this relay is optimized for industrial and automation applications requiring reliable DC switching control with a control voltage range from 4.5 V to 32 V.

The device employs zero cross switching technology that limits power dissipation during switching cycles, reducing electromagnetic interference and enhancing longevity. It has a screw terminal type for secure and easy wiring, and a SPST contact configuration well suited for DC loads.

With an operating temperature range spanning from -30°C to 80°C, the solid state relay provides dependable performance in demanding environments. Its compact dimensions (32mm height, 35mm width, 60mm length) allow flexible installation into electrical panels and systems. Rated IP20, it offers protection against solid ingress, making it suitable for industrial relay and control panel mounting.

These relays are CE and EAC approved, assuring compliance with stringent quality and safety standards. Off-state leakage current is minimal at 1 mA, ensuring low power loss during inactive periods.

The Celduc SCI0100600 relay supports various industrial, automation, electrical control, and manufacturing applications requiring precise and efficient DC switching. Its design caters especially to automation, signal conditioning, HVAC controls, and power distribution setups requiring DIN rail mountable components.

Supports maximum load current of 100 A. Designed for DIN rail mounting ensuring secure installation. Operates with maximum load voltage of 600 V. Features a screw terminal type for reliable connections. Built with SPST contact configuration for DC applications.

Includes zero cross switching to minimize power dissipation. Operating temperature range from -30°C to 80°C ensures durability. Compact size with dimensions of 32mm height, 35mm width, and 60mm length. Rated IP20 for protection against solid objects.

Off-state leakage current is low at 1 mA for efficiency. Explore the Celduc range and other Solid State Relays on EnvMart for specialized industrial, automation, and electrical system needs.
