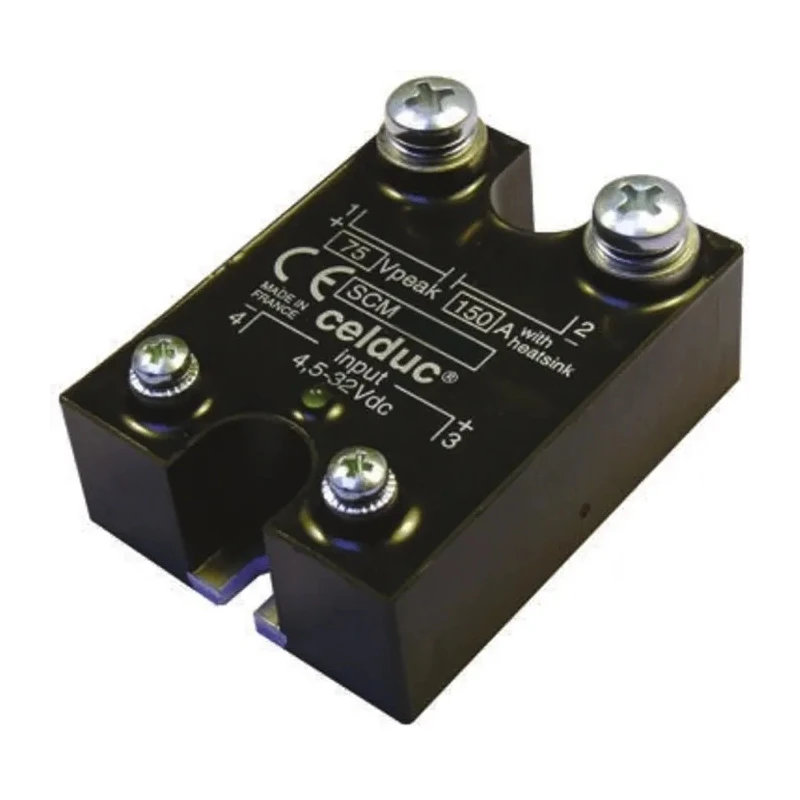

Celduc SCM Series Solid State Relay, 150 A Load, 100 V Load, DIN Rail Mount, 32V Control SCM0150100

Celduc SCM0150100 is a Solid State Relay optimized for electrical and automation applications, capable of switching loads up to 150 A at 100 V using advanced MOSFET technology. This relay is designed for DIN rail mounting, making it suitable for seamless integration in industrial control panels.

The relay features ultra-low on-state resistance, minimizing power dissipation and improving performance. Its ultra-low output leakage current reduces energy waste and enhances safety. The control input requires low current and is a triggered input type, thereby avoiding the risks associated with linear control inputs. Zero cross switching functionality reduces electrical noise and inrush currents during switching.

Equipped with screw terminals, the relay ensures secure and reliable electrical connections. It has a compact form factor with dimensions of 60 mm in length, 35 mm in width, and 32 mm in height, facilitating easy installation in constrained spaces. The device operates efficiently within a temperature range of -30°C to 80°C and carries an IP20 ingress protection rating.

The output is configured as a single-pole single-throw (SPST) thyristor, suitable for high-current DC applications. Manufactured in France to CE and EAC standards, it guarantees compliance with rigorous safety and quality certifications.

This solid state relay is widely used in industrial automation, manufacturing machinery, power control systems, and other electrical control gear requiring reliable high-current DC switching and compact mounting solutions.

Incorporates latest MOSFET technology for improved efficiency. Features ultra-low on-state resistance to reduce power loss. Designed for ultra-low output leakage current to ensure safety. Consumes low control current with triggered control input to prevent linear control risks.

Provides zero cross switching functionality for smooth operation. Screw terminal type for secure wiring connections. Compact dimensions enabling easy DIN rail installation. Wide operating temperature range from -30°C to 80°C.

IP20 rated ingress protection for solid object safety. Single-pole single-throw thyristor output configuration. Compliant with CE and EAC quality and safety standards. Explore further Solid State Relays and related automation equipment at EnvMart for dependable industrial and electrical control solutions.
