Celduc SC8 Series Solid State Relay 12 A Load 280 Vrms Load Panel Mount 30V dc Control SC841110

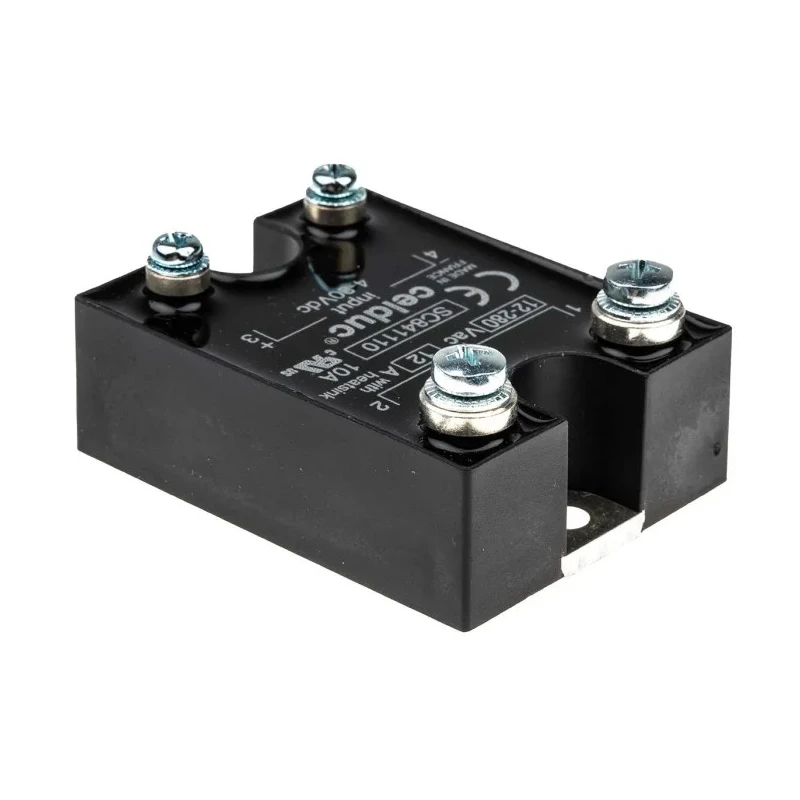

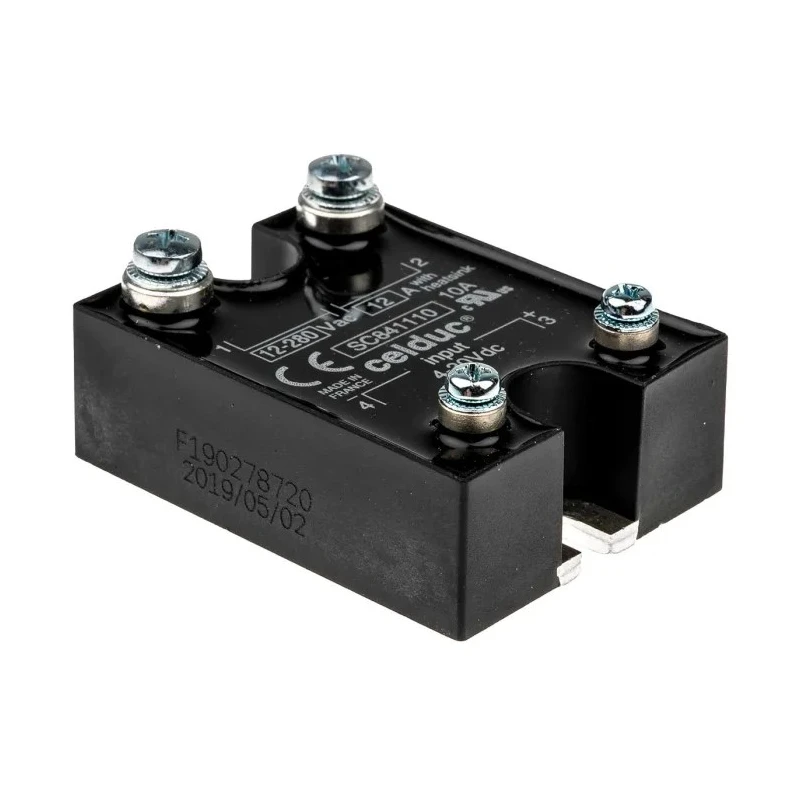

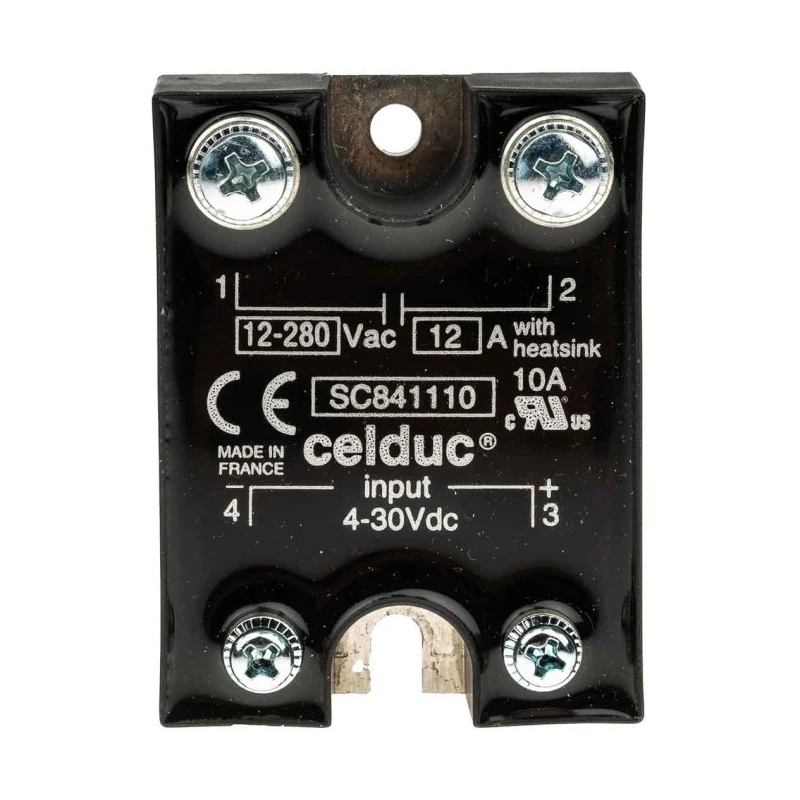

Celduc SC841110 Solid State Relay SC8 Series is a single-phase synchronous solid state power relay optimized for reliable switching of resistive loads. It supports a maximum load current of 12 A and a load voltage up to 280 Vrms, controlled within a voltage range of 4 V dc minimum to 30 V dc maximum. This relay is designed for panel mounting and uses screw terminals for robust connectivity.

The device employs zero cross switching technology which minimizes electrical noise and stress on connected equipment during switching. Its triac output type allows control of AC loads, making it ideal for applications such as furnaces, extruders, presses, heating systems, motor control, solenoids, brakes, and home automation equipment.

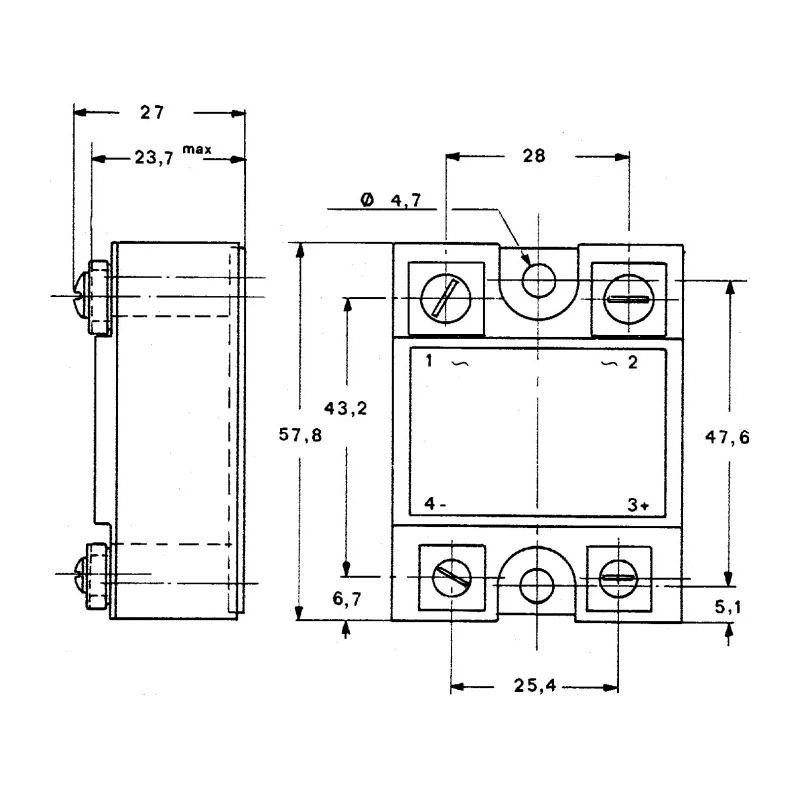

With an IP20 rating, this relay is suitable for indoor use where basic protection against solid objects is required. It operates reliably in temperatures ranging from -40°C to 100°C. Its dimensions are 58.2 mm in length, 44.5 mm in width, and 27 mm in height, facilitating compact and efficient panel integration.

The off state leakage current is minimal at 3 mA, contributing to energy efficiency and preventing unintended load activation. This product is manufactured in France, aligning with high standards of quality.

Accessories like radiators, safety hoods, and DIN rails are available separately to enhance installation and performance based on application requirements. Supports a maximum load current of 12 A for resistive loads. Operates with load voltages up to 280 Vrms.

Panel mount type with screw terminals for secure installation. Zero cross switching reduces electrical noise during switching. Output type is triac, suitable for AC load control. Built with IP20 protection rating for safe indoor use.

Operational temperature range from -40°C up to 100°C. Compact size with dimensions 58.2 mm length, 44.5 mm width, and 27 mm height. Off state leakage current is low at 3 mA. Manufactured in France, ensuring high quality and reliability.

This solid state relay is highly suited for industrial automation, heating control, manufacturing machinery, HVAC systems, and home automation projects requiring silent switching with high reliability and minimal maintenance. Browse EnvMart's wide range of Solid State Relays and related electrical control products for compatible solutions.
