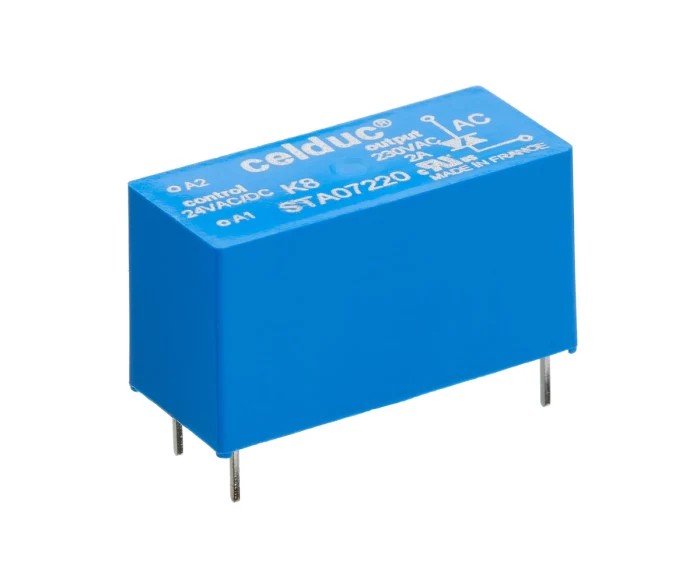

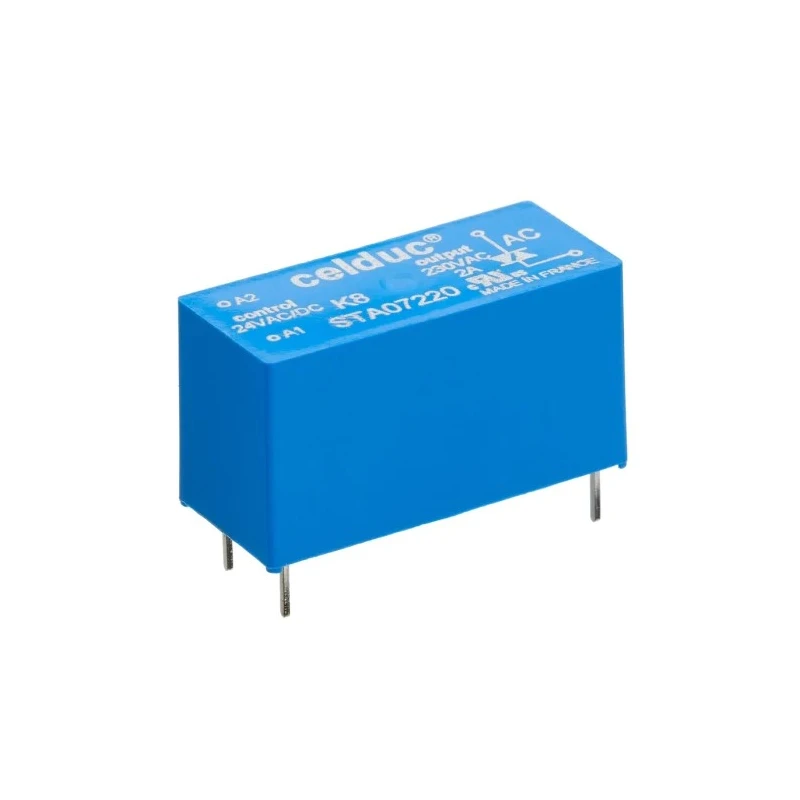

Celduc STA07220 Series Solid State Relay 2A Load PCB Mount 275 V AC Load 30V AC/DC Control STA07220

Celduc STA07220 Series Solid State Relay is a robust PCB-mounted device engineered for efficient switching of AC loads up to 2 amperes at a maximum load voltage of 275 V AC. It features a control voltage range from 12 V AC/DC to a maximum of 30 V AC/DC, enabling flexible interface options for PCB-based automation circuits.

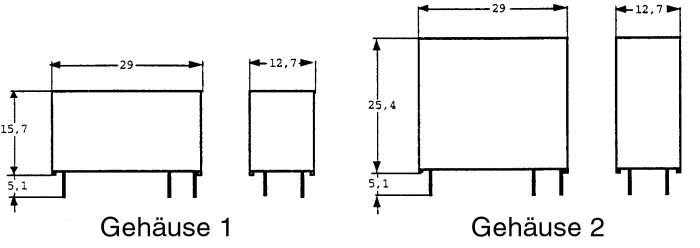

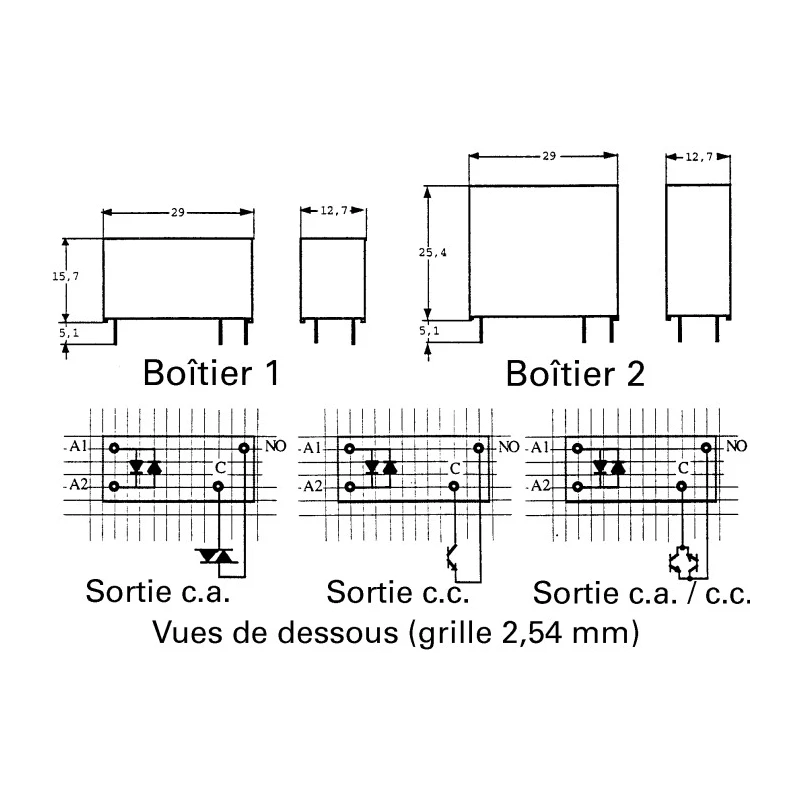

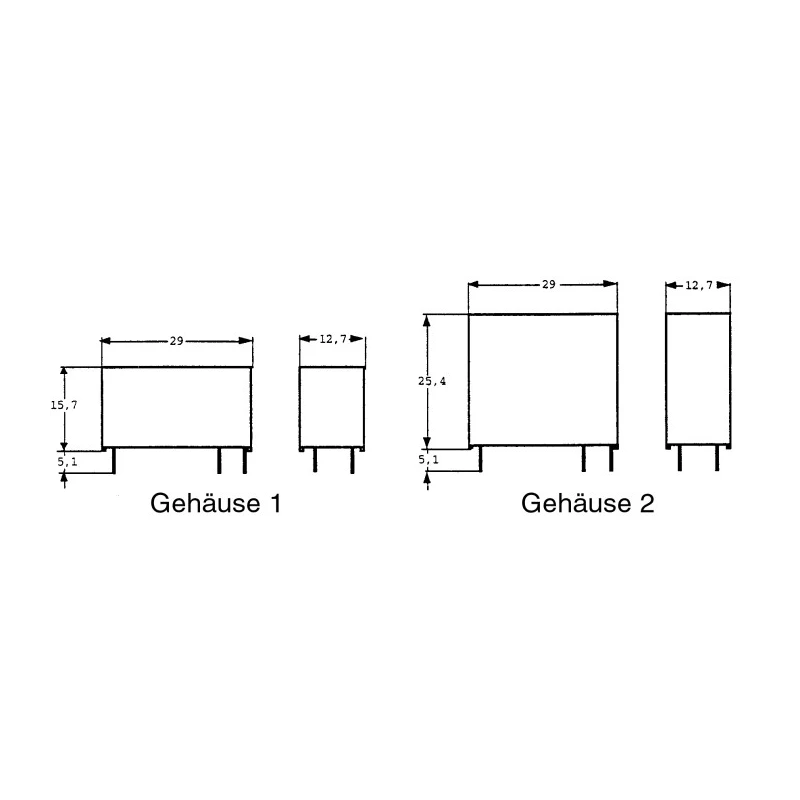

Designed with a triac output type, this solid state relay incorporates zero cross switching to reduce electrical noise and extend the life of connected loads and relay components. Its compact form factor of 29.2 mm in length, 13 mm in width, and 15.8 mm in height makes it suitable for dense PCB layouts.

Operating reliably within a temperature range of -40°C to 100°C, the STA07220 is ideal for industrial, automation, electrical control systems, and HVAC system switching tasks. Its IP20 protection rating ensures it functions safely within protected environments.

This relay also provides an off state leakage current of just 1 mA, conserving energy and ensuring low standby power usage. The STA07220 complies with the EN 60947-5-1 standard, confirming its suitability for industrial control reliability and safety.

Manufactured in France, the STA07220 solid state relay is compatible with similar electromechanical relay pin layouts, easing replacement and upgrading in existing control panels. Applications span industrial automation, electrical equipment control, and precision switching in manufacturing and process control systems.

Rated for a maximum load current of 2 amperes ensuring efficient performance. Designed for PCB mounting with secure PCB pin terminals. Operating voltage ranges from 12V ac/dc minimum control to 30V ac/dc maximum control.

Features zero cross switching for reduced electrical noise and extended component life. Compact dimensions and robust industrial construction. Triac output type suitable for AC load switching. Wide operating temperature range from -40°C up to 100°C.

Low off state leakage current of 1mA for energy efficiency. Compliant with EN 60947-5-1 safety and performance standards. IP20 rated for indoor mounting and PCB protection. Explore Celduc Solid State Relays and related automation components at EnvMart to enhance your control system designs and industrial applications.
