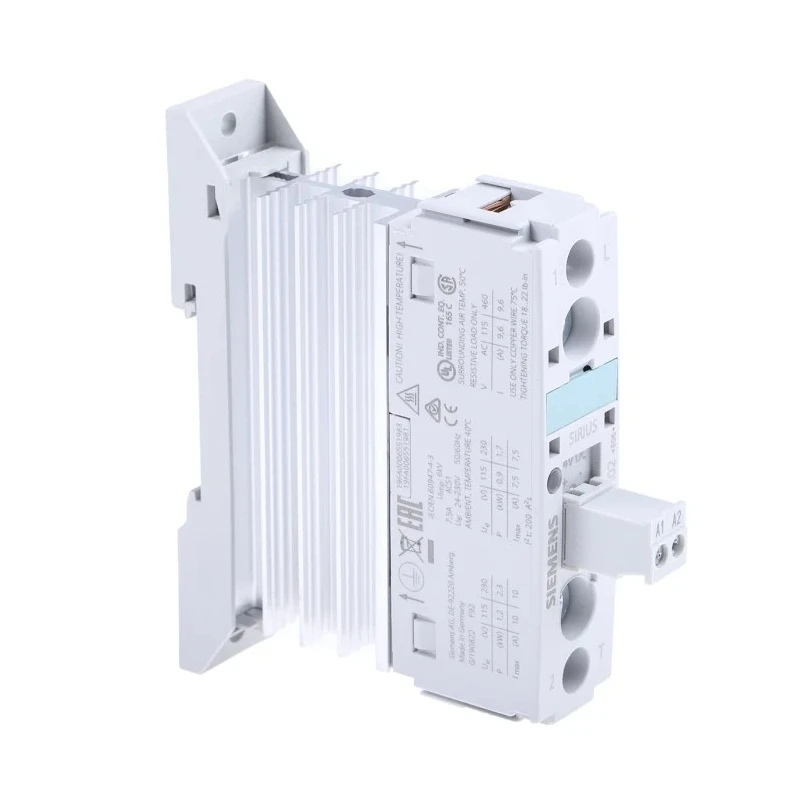

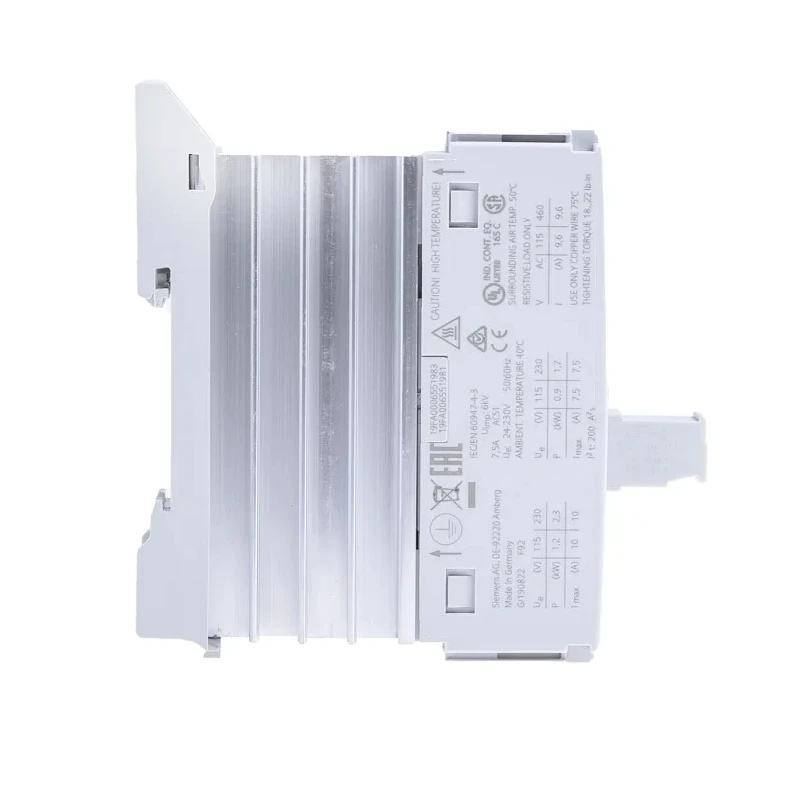

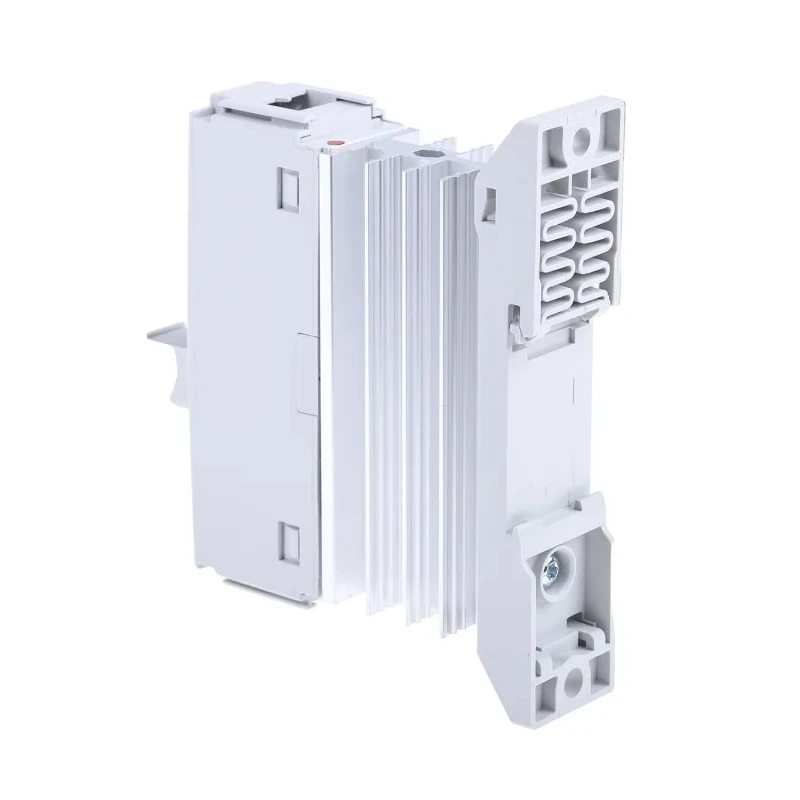

Siemens 3RF2 Series Solid State Relay 10.5 A Load DIN Rail Mount 230 V Load 24V DC Control 3RF2310-1AA02
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Height | 100mm |
| Length | 22.5mm |
| Model | 3RF2310-1AA02 |
| IP Rating | IP20 |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Output type | Thyristor |
| Series | 3RF2 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 10.5A |
| Standards/Approvals | CSA, EAC, UR |
| Maximum Load Voltage | 230V |
| Minimum Load Voltage | 24V |
| Minimum Control Voltage | 15V dc |
| Maximum Control Voltage | 24V dc |
| Off State Leakage Current | 10mA |
Key Features
- This solid state relay features zero cross switching to ensure noise-free operation.
- It has a screw terminal type for fast and secure connections.
- The device supports a maximum load voltage of 230 V and control voltage between 15 V DC to 24 V DC.
- Compact dimensions of 100 mm height, 22.5 mm length and width make it suitable for DIN rail installations.
- IP20 rated with optimized heat transfer technology enhances operational durability.
- Suitable for industrial electrical control and automation applications.
- Thermally optimized with DCB technology and high reverse voltage thyristors.
- Operating temperature range is from -25°C to 60°C allowing wide environmental usage.
Product Description
Siemens 3RF2310-1AA02 is a high-quality 3RF2 Series Solid State Relay designed for industrial and automation electrical control purposes. It provides a maximum load current of 10.5 A with a reliable zero cross switching function, which reduces electrical noise and protects connected equipment.
This relay is engineered with screw terminals for quick and secure mounting on DIN rails, supporting a maximum load voltage of 230 V and a DC control voltage range from 15 V to 24 V. It benefits from optimized heat transfer via DCB technology and robust thyristor outputs with high reverse voltage tolerance.
The product’s compact size (100 mm height x 22.5 mm length x 22.5 mm width) and IP20 rating facilitate safe installation in electrical panels and control cabinets. It operates efficiently within a temperature range of -25°C to 60°C and features a low off state leakage current of 10 mA.
Manufactured in Germany, the relay meets recognized standards including CSA, EAC, and UR, assuring safety and reliability in demanding industrial environments. Its design ensures consistent performance in automation, manufacturing, HVAC control systems, and other industrial applications requiring dependable switching of AC loads.
This solid state relay features zero cross switching to ensure noise-free operation. It has a screw terminal type for fast and secure connections. The device supports a maximum load voltage of 230 V and control voltage between 15 V DC to 24 V DC.
Compact dimensions of 100 mm height, 22.5 mm length and width make it suitable for DIN rail installations. IP20 rated with optimized heat transfer technology enhances operational durability. Suitable for industrial electrical control and automation applications.
Thermally optimized with DCB technology and high reverse voltage thyristors. Operating temperature range is from -25°C to 60°C allowing wide environmental usage. Off state leakage current is low at 10 mA, improving efficiency.
Complies with CSA, EAC, and UR standards ensuring quality and safety. Explore more Siemens Solid State Relays and related industrial automation components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current of this solid state relay is 10.5 A.
This model supports a control voltage range from 15 V DC to 24 V DC.
The relay can handle a maximum load voltage of 230 V.
The dimensions of this unit are 100 mm in height, 22.5 mm in length, and 22.5 mm in width.
It is designed for DIN rail mounting, which allows for quick and secure installation.
The operating temperature range is from -25°C to 60°C.
The off state leakage current is low at 10 mA, improving efficiency.
This model has an IP20 rating, indicating protection against solid objects larger than 12.5 mm but no protection against water.
It complies with CSA, EAC, and UR standards, ensuring quality and safety in industrial applications.
It features zero cross switching, which helps to reduce electrical noise during operation.
The relay uses screw terminals for fast and secure connections.
This solid state relay is manufactured in Germany.
