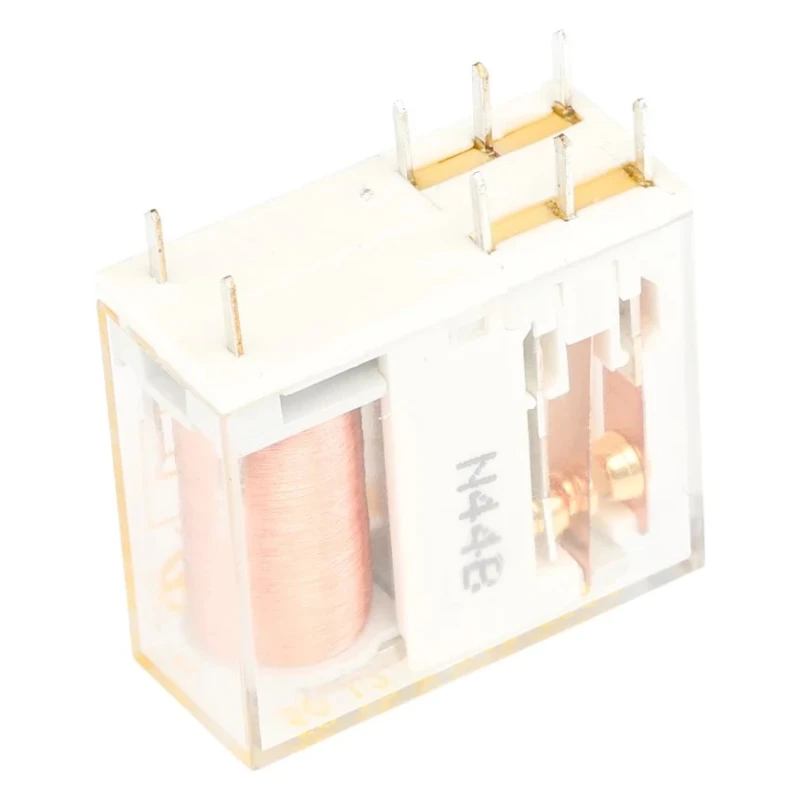

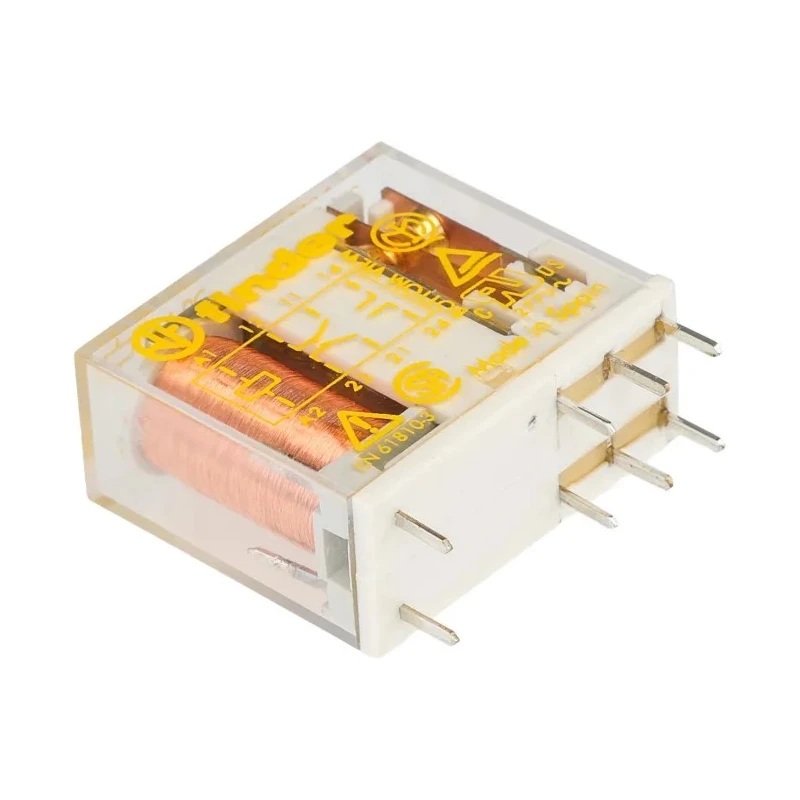

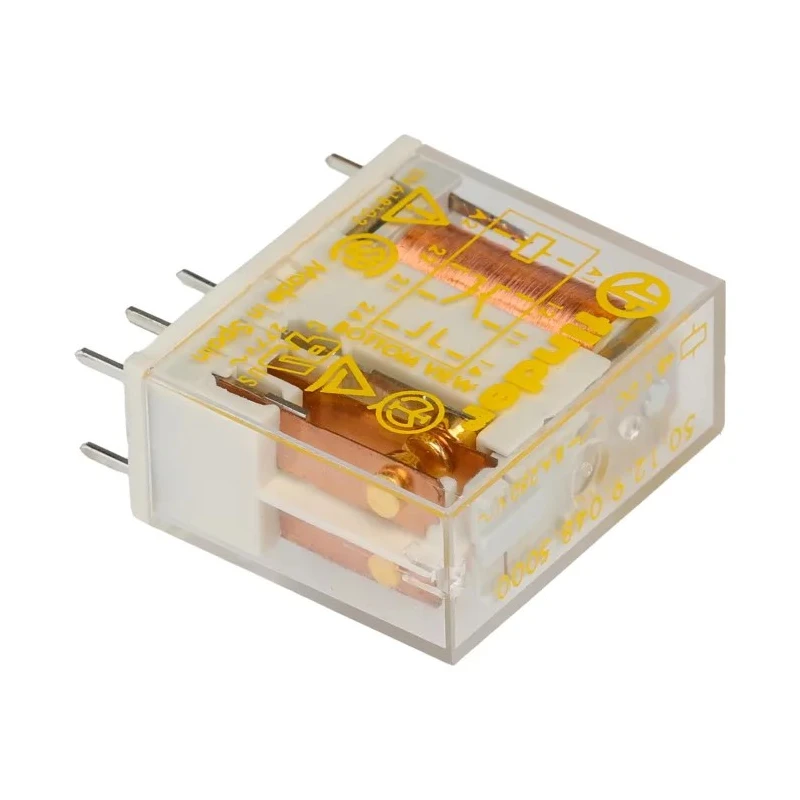

Finder PCB Force Guided Relay, 48V DC Coil Voltage, 2-Pole DPDT Contact Configuration 50.12.9.048.5000
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Height | 25mm |
| Length | 29mm |
| Depth | 12.4mm |
| Mount Type | PCB |
| Contact Material | Gold Silver Alloy |
| Series | 50 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Number of Poles | 2 |
| Coil Resistance | 3.28kΩ |
| Coil Power | 700mW |
| Isolation Coil To Contact | 6kV |
Key Features
- PCB mounting type suitable for compact installations.
- Dual pole double throw (DPDT) contact configuration supports versatile switching needs.
- Coil resistance of 3.28kΩ and coil power consumption of 700mW ensures efficient operation.
- Operates reliably within temperature range of -40°C to 70°C for harsh environments.
- Gold-silver alloy contact material provides enhanced durability and performance.
- Isolation voltage of 6kV between coil and contacts enhances safety and reduces interference.
- Rated for medium duty switching with a maximum switching current of 15A and switching power up to 2kVA.
- Terminals designed for soldering ensure secure electrical connections.
Product Description
Finder 50.12.9.048.5000 is a PCB-mounted force guided relay designed for automation and control applications requiring safe and reliable switching. Operating at a 48V DC coil voltage, this relay features a dual pole double throw (DPDT) contact configuration which mechanically links contacts for safety and dependable performance.
With a coil resistance of 3.28kΩ and coil power of 700mW, it operates efficiently across a wide temperature range from -40°C to +70°C. The relay provides enhanced isolation of 6kV between the coil and contacts to minimize electrical interference and improve operational safety.
Contacts are constructed from a gold-silver alloy, supporting longevity and low-level switching performance. This relay is suitable for medium duty switching loads, capable of handling switching currents up to 15A and maximum switching power of 2kVA.
The device measures a compact 29mm length, 25mm height, and 12.4mm depth, making it ideal for installation on printed circuit boards with limited space. Terminals are designed for solder type connections, ensuring secure attachment.
Typical industrial and commercial applications include escalators and lifts, hoist and crane control, medical and dental machinery safety systems, automated warehouse carousel controls, and lifts for disabled access. This makes the relay an important component in safety-critical systems requiring forced guidance contacts.
PCB mounting type compatible with compact automation systems. DPDT contacts provide versatile switching functionality. Coil specifications: 48V DC, 3.28kΩ resistance, and 700mW power consumption. Wide operational temperature range from -40°C to 70°C for reliability in harsh environments.
Gold-silver alloy contacts for enhanced durability. 6kV isolation between coil and contacts increases safety. Medium duty switching with up to 15A current and 2kVA power handling. Solder terminal type ensures firm electrical connection.
Compact physical dimensions facilitate PCB integration. Applications include industrial automation, safety systems, medical equipment, and more. Explore the full range of Force Guided Relays for reliable safety and control solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 48V DC.
It features a dual pole double throw (DPDT) contact configuration.
This relay can handle a maximum switching current of 15A.
The relay measures 29mm in length, 25mm in height, and 12.4mm in depth.
The coil resistance is 3.28kΩ.
It can operate at a maximum temperature of 70°C.
The relay is equipped with solder type terminals for secure electrical connections.
The isolation voltage between the coil and contacts is 6kV.
The contacts are made from a gold-silver alloy, which enhances durability and performance.
The coil power consumption is 700mW.
Typical applications include escalators, lifts, hoist control, medical machinery safety systems, and automated warehouse controls.
The minimum operating temperature is -40°C.
