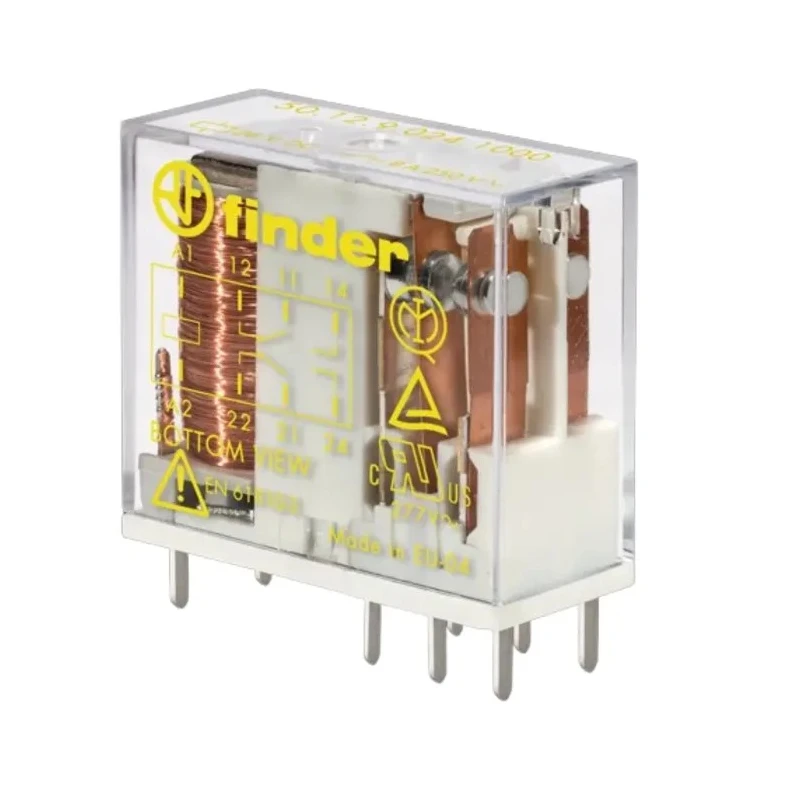

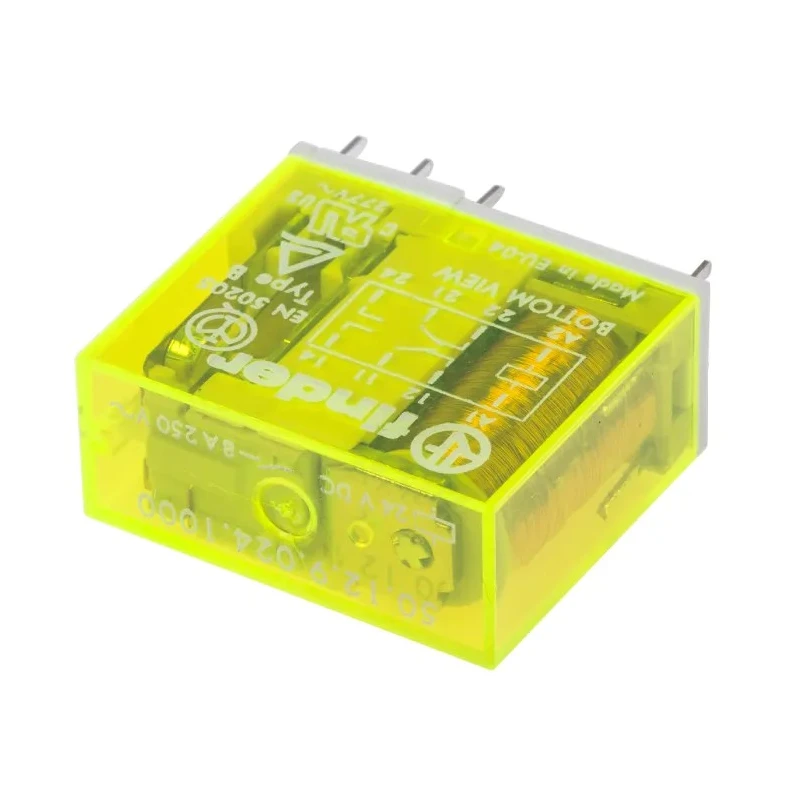

Finder PCB Force Guided Relay 24V DC Coil Voltage 2-Pole DPDT 50.12.9.024.1000
Specifications
| Country of Origin | Spain |
|---|---|
| Brand | Finder |
| Height | 25mm |
| Length | 29mm |
| Depth | 12.4mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | 50 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Number of Poles | 2 |
| Coil Resistance | 820Ω |
| Coil Power | 700mW |
| Isolation Coil To Contact | 6kV |
Key Features
- The relay has a coil resistance of 820 ohms and coil power of 700 mW for efficient operation.
- Silver alloy contacts ensure dependable conductivity and long electrical life span of 100,000 cycles at rated load.
- Compact PCB mount design with solder terminal type allows easy integration into standard circuit boards.
- 6 kV isolation from coil to contact enhances safety in high voltage environments.
- Operates reliably in temperatures ranging from -40°C to 70°C for diverse industrial settings.
- Environmentally friendly cadmium-free materials improve safety and compliance.
- Suitable for medium duty switching especially optimized for DC loads.
- Widely used in escalators, elevators, hoists, cranes, hospitals, and automation systems.
Product Description
Finder 50.12.9.024.1000 PCB Force Guided Relay is a specialized relay designed for use in industrial, automation, and safety applications requiring reliable switching and enhanced operational safety. This relay operates at a coil voltage of 24V DC with a 2-pole double-throw (DPDT) contact configuration, ensuring dependable performance in medium duty switching scenarios, particularly with DC load types.
The relay features a coil resistance of 820 ohms and consumes coil power of only 700 mW, making it energy-efficient. Its silver alloy contacts are cadmium-free, promoting environmental safety while maintaining excellent conductivity. The relay’s isolation level of 6 kV between the coil and contacts provides safe operation in high voltage conditions, vital for industrial settings.
Designed for PCB mounting, the relay’s solder terminals simplify installation and integration into existing circuit boards. It reliably functions across a temperature range from -40°C to 70°C, broadening its applicability across diverse environments, including manufacturing plants, medical equipment, and automation systems.
Common industrial applications include escalators, elevators, hoists, cranes, and carousel warehouses where fail-safe and precise control is critical. The relay achieves an electrical life of approximately 100,000 cycles at rated loads, exemplifying its durability.
The relay’s compact dimensions (29mm length, 25mm height, 12.4mm depth) facilitate easy placement on PCB assemblies. Its mounting on PCB supports standard layouts, enabling seamless integration. Use in safety-critical environments benefits from the relay’s force-guided contact design preventing unintended operation.
Compliance with environmental standards is supported by the use of cadmium-free materials.
This Finder force guided relay is a trusted component in industrial automation, electrical control, and safety relay applications. Browse EnvMart’s comprehensive category for more Force Guided Relays and related industrial automation products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 24V DC.
It features a 2-pole double-throw (DPDT) contact configuration.
The coil resistance is 820 ohms.
The maximum operating temperature is 70°C.
The contacts are made of silver alloy, which is cadmium-free.
It has an electrical life of approximately 100,000 cycles at rated loads.
The isolation from coil to contact is 6 kV.
The dimensions are 29mm in length, 25mm in height, and 12.4mm in depth.
It supports PCB mounting with solder terminal type for easy integration.
It is commonly used in escalators, elevators, hoists, cranes, and automation systems.
The coil power consumption is 700 mW.
It can operate reliably in temperatures ranging from -40°C to 70°C.
