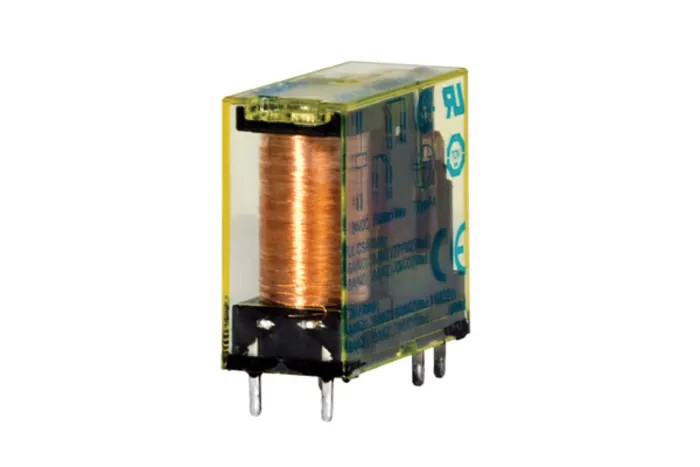

Idec PCB Force Guided Relay 24V dc Coil 29A Switching Current SPST RF2V-1A1BD1-D24

Free Delivery in India | Lowest Global Shipping Charges

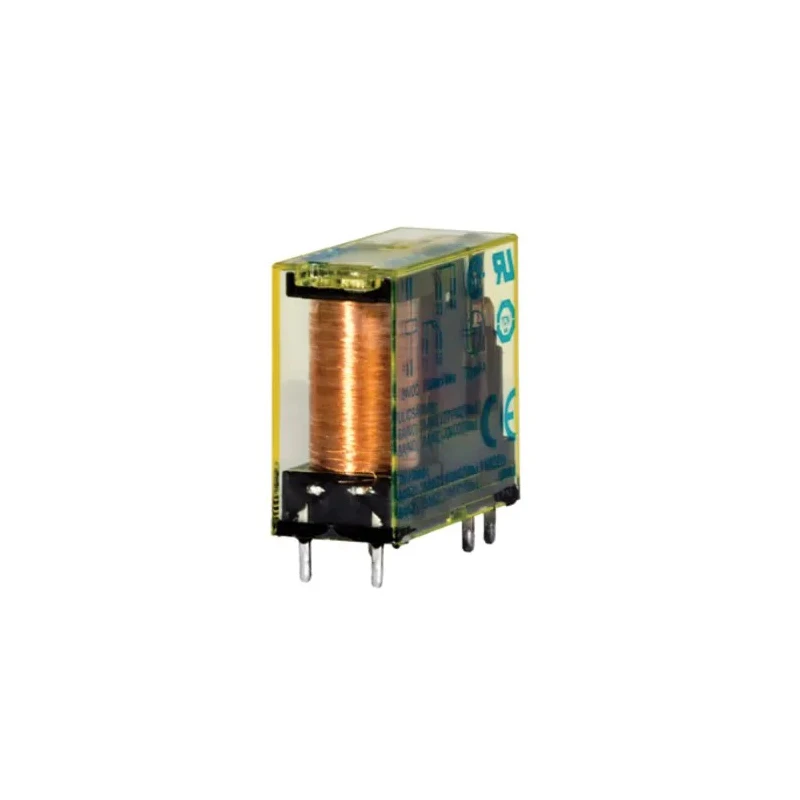

Idec PCB Force Guided Relay 24V dc Coil 29A Switching Current SPST RF2V-1A1BD1-D24

Name: Idec PCB Force Guided Relay 24V dc Coil 29A Switching Current SPST RF2V-1A1BD1-D24
Brand: Idec
SKU: 422849
Price: 20.22 USD
Availability: InStock



Category Force Guided Relay Brand Idec Condition New

Specifications

Country of Origin	Japan
Brand	Idec
Height	24.5mm
Length	28mm
Model	RF2V-1A1BD1-D24
Width	12.7mm
Mount Type	PCB
Contact Material	Silver Alloy Gold Plated
Series	RF2
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Minimum Operating Temperature	-40°C
Switching Current	29A
Terminal type	PCB Pin
Contact Resistance	100mΩ
Standards/Approvals	RoHS
Coil Resistance	820Ω
Coil Voltage	24V dc
Switching DC Voltage	125V dc
Switching AC Voltage	250V ac
Coil Power	0.7W

Key Features

This relay has a PCB mount type suitable for circuit board integration.
Coil resistance is 820Ω ensuring efficient coil operation.
The relay operates reliably between -40°C minimum and 85°C maximum temperatures.
Switching voltages supported include 125V dc and 250V ac.
Contact material is silver alloy with gold plating for excellent conductivity.
Contact resistance is low at 100mΩ for optimal performance.
Compact dimensions of Length 28mm, Width 12.7mm, and Height 24.5mm help reduce installation space.
Coil power consumption is only 0.7W promoting energy efficiency.

Product Description

Idec RF2V-1A1BD1-D24 PCB Force Guided Relay offers industry-grade performance with a 24V dc coil and a 29A switching current. It uses a Single Pole Single Throw (SPST) contact configuration, making it suitable for safety and control circuit implementations.

The relay features a PCB mounting style with PCB pin terminals facilitating easy and secure integration on printed circuit boards. The coil resistance is 820Ω, ensuring stable coil excitation at rated voltage.

Designed to operate over a wide temperature range (-40°C to 85°C), this relay withstands harsh industrial environments. It supports switching of voltages up to 125V dc and 250V ac, providing reliable contact switching in various electrical applications.

The contacts are made from silver alloy with gold plating to ensure low contact resistance (100mΩ) and durability, minimizing signal loss and wear over time. Its compact form factor with dimensions of 28mm length, 12.7mm width, and 24.5mm height allows reduced space usage on control panels.

Coil power consumption is minimal at 0.7W, facilitating energy savings in continuous operation scenarios. This product meets RoHS compliance, affirming its adherence to ecological and safety standards.

This relay is ideal for industrial automation, electrical safety circuits, control panels, and manufacturing equipment applications. The Force Guided Relay design ensures fail-safe operation by linking contacts mechanically, enhancing safety circuit integrity.

Compact and energy-efficient, it reduces installation space and power consumption compared to traditional relays. Silver alloy contact material with gold plating provides excellent conductivity and resistance to corrosion.

Wide operating temperature range supports usage in diverse climatic conditions. PCB mount with pin terminals simplifies mounting and wiring in electronic control systems. Supports both AC and DC voltages up to 250V ac and 125V dc respectively.
