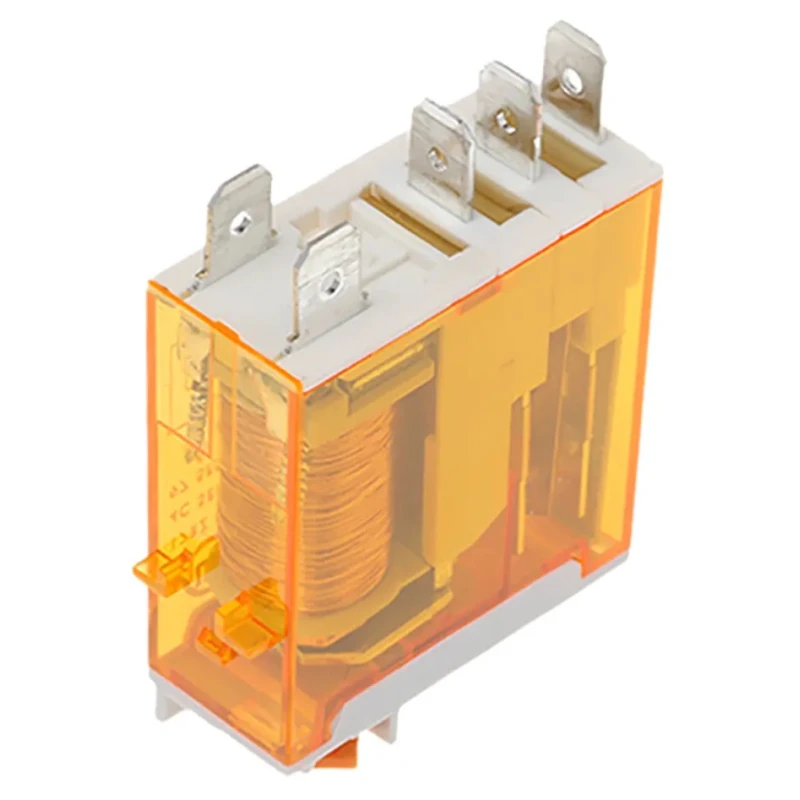

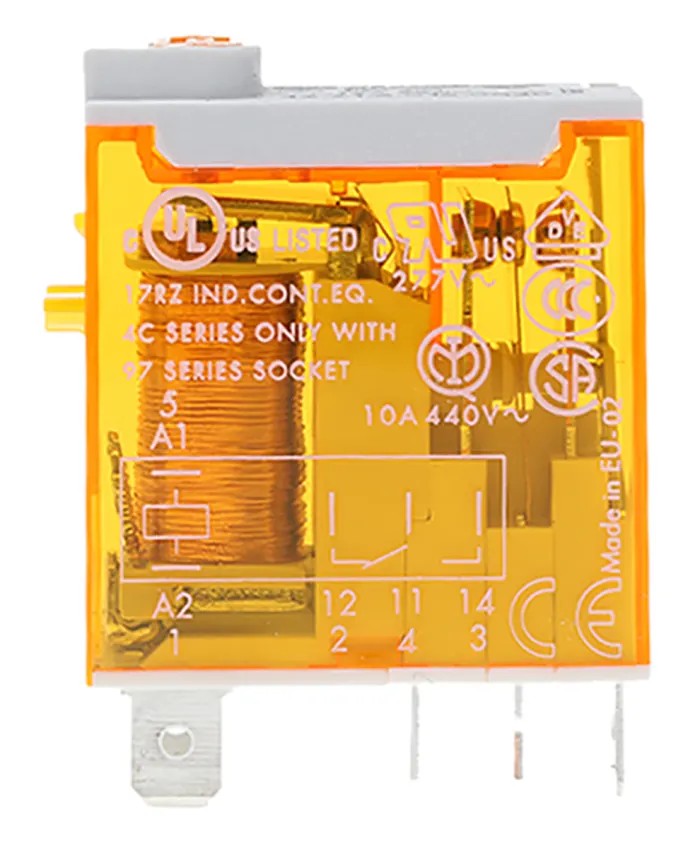

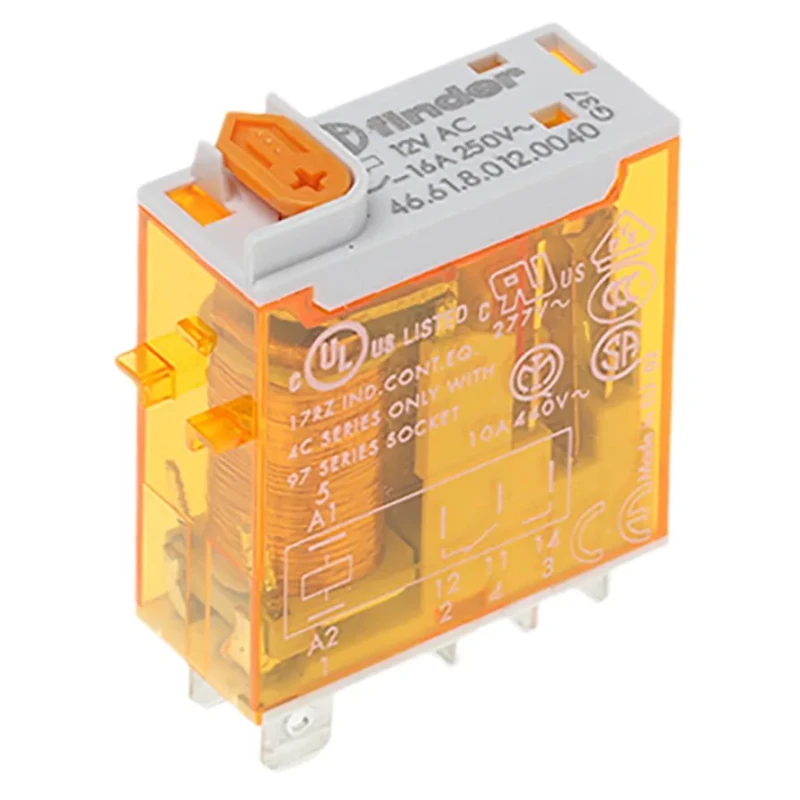

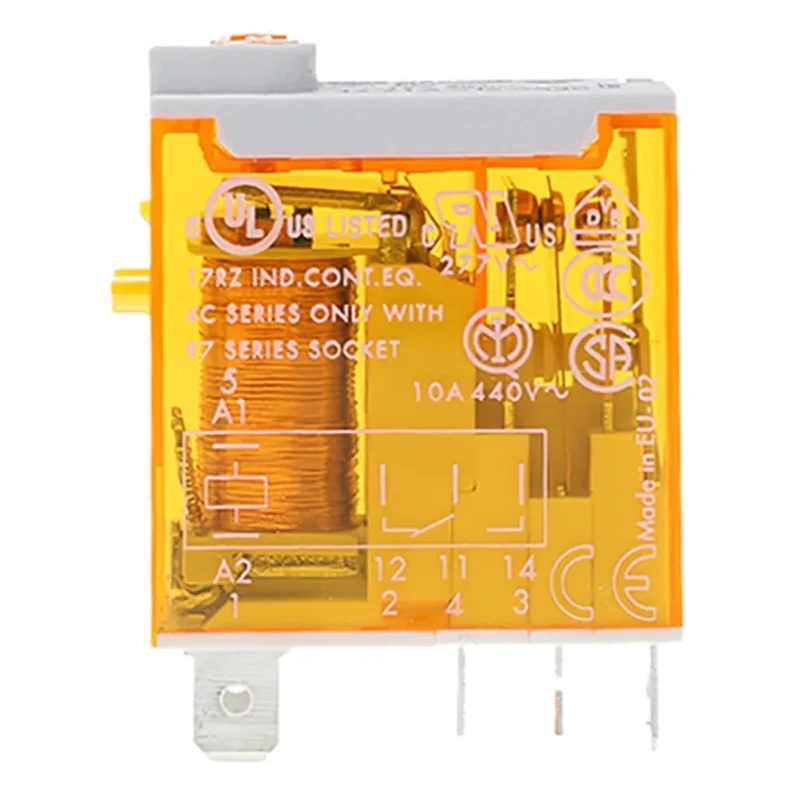

Finder Power Relay 12V AC Coil Voltage 25A Switching Current SPDT 46.61.8.012.0040

Finder 46.61.8.012.0040 Power Relay features a robust design with 12V AC coil voltage and a high switching current capacity of 25A, configured as a Single Pole Double Throw (SPDT) relay. Its compact form factor with dimensions of 29mm length, 12.4mm width, and 32.8mm height makes it ideal for installation in constrained spaces typical in industrial applications.

This power relay is engineered to handle switching voltages up to 440V AC and possesses a coil resistance of 80Ω with a coil power consumption of 1.2W. The relay operates reliably across a wide temperature range from -40°C to +70°C, making it suitable for harsh and varied operational environments.

The contact material is a silver alloy, chosen for its excellent electrical conductivity and durability to reduce contact wear over time. The relay uses quick connect plug-in terminals which facilitate straightforward socket mounting and simplify both installation and maintenance procedures.

Ensuring superior electrical isolation, the relay provides 6 kV isolation between coil and contacts to enhance safety. Its design supports an electrical lifecycle rated for 100,000 cycles, offering long-lasting operational consistency.

Finder 46 Series relays satisfy rigorous industry certifications including CSA, cURus, EAC, EN, RINA, RoHS, CE, VDE, and CCC, guaranteeing compliance with international standards.

Common industrial applications include automation in lift systems and hoists, control panels for electrical distribution, road and tunnel lighting systems, bottling plant and shipyard automation, and control of grilles, shutters, and blinds. This makes it a versatile component for various industrial and commercial automation environments.

The relay features a 12V AC coil voltage for efficient operation. Capable of handling a maximum switching current of 25A, suitable for high power applications. Compact dimensions of 29mm length, 12.4mm width, and 32.8mm height enable space-saving design.

Silver alloy contacts ensure high conductivity and reduced wear over time. Rated for switching voltages up to 440V AC with a coil power consumption of 1.2W. Operating temperature range from -40°C to +70°C supports harsh environmental conditions.

Plug-in quick connect terminal design allows easy installation and maintenance. Isolation between coil and contacts up to 6 kV enhances safety and reliability. Designed for over 100,000 electrical cycles ensuring long service life.

Complies with multiple international standards including CSA, cURus, EAC, EN, RINA, RoHS, CE, VDE, and CCC.
