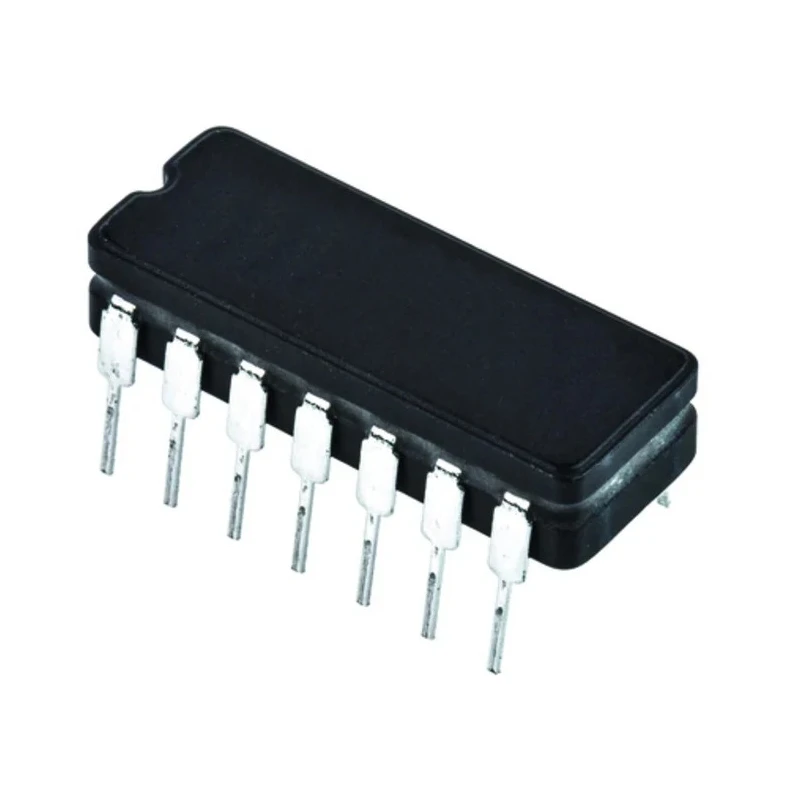

Texas Instruments Schmitt Trigger Input Inverter 6-Element, 14-Pin CDIP SN54HC14J
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 3.56mm |
| Length | 19.94mm |
| Model | SN54HC14J |
| Width | 7.62mm |
| Mount Type | Through Hole |
| Compatibility | Input CMOS, Output CMOS |
| Output type | CMOS |
| Series | SN54HC14 |
| Input Type | Schmitt Trigger |
| Maximum Operating Temperature | 125°C |
| Package Type | CDIP |
| Minimum Operating Temperature | -55°C |
| Operating Voltage | 2 to 6 V |
| Pin Count | 14 |
| Number of Elements per Chip | 6 |
| Maximum Supply Voltage | 6V |
| Logic Family | HC |
| Logic Function | Inverter |
| Minimum Supply Voltage | 2V |
| Maximum High Level Output Current | -5.2mA |
| Maximum Propagation Delay Time @ CL | 190ns |
| Maximum Low Level Output Current | 5.2mA |
Key Features
- The logic inverter is designed to operate with supply voltages ranging from 2 to 6 V.
- Inputs utilize Schmitt Trigger technology for improved signal conditioning and noise immunity.
- Outputs are CMOS type supporting high-speed CMOS logic families.
- Maximum propagation delay time at load capacitance is 190 ns ensuring quick response.
- Designed for through-hole mounting with a compact 14-pin ceramic dual in-line package.
- Wide operating temperature range from -55°C to 125°C for industrial reliability.
- Maximum output current is ±5.2 mA assuring robust driving capacity.
- Part of Texas Instruments 74HC family, providing low power consumption and high noise immunity.
Product Description
Texas Instruments SN54HC14J Schmitt Trigger Input Inverter is a high-speed device from the 74HC series using silicon gate CMOS technology. It provides six independent inverters each with Schmitt Trigger inputs housed in a 14-pin CDIP package, suitable for various industrial electronics applications.
This inverter operates within a supply voltage range of 2 to 6 V and features compatible input and output CMOS logic levels, allowing seamless integration with other CMOS devices. The Schmitt Trigger inputs enhance noise immunity, making it effective in noisy environments.
The device guarantees a maximum propagation delay of 190 ns at a standard load capacitance, enabling rapid signal processing. It delivers maximum high and low level output currents of -5.2 mA and 5.2 mA respectively, ensuring strong drive capability of connected loads.
Designed for through-hole mounting, the SN54HC14J is compact with a package dimension of approximately 19.94 mm in length, 7.62 mm width, and 3.56 mm height, facilitating efficient PCB layout. Its temperature range from -55°C to 125°C provides robustness for industrial and laboratory applications.
The 74HC family technology combines low power consumption with high-speed operation. The inverter's Schmitt Trigger inputs make it suitable for signal conditioning in industrial control systems. The device finds utility in measuring and testing equipment, electronic controls, and automated systems.
Package type CDIP ensures reliability and easy handling during assembly. Texas Instruments’ reputation ensures product quality and long-term availability.
Explore our comprehensive range of semiconductor logic ICs to support your industrial automation, laboratory instrumentation, and electronic design needs. EnvMart offers high-quality components with detailed support resources.
Explore more products in our Inverter ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 2 to 6 V.
The maximum propagation delay time at load capacitance is 190 ns, ensuring quick response.
It utilizes Schmitt Trigger technology for its inputs, which enhances signal conditioning and noise immunity.
The maximum output current is ±5.2 mA, providing robust driving capacity for connected loads.
This unit operates within a wide temperature range from -55°C to 125°C, suitable for industrial applications.
It comes in a 14-pin ceramic dual in-line package (CDIP), designed for through-hole mounting.
The SN54HC14J contains six independent inverters, each with Schmitt Trigger inputs.
The dimensions are approximately 19.94 mm in length, 7.62 mm in width, and 3.56 mm in height.
It features compatible input and output CMOS logic levels, allowing integration with other CMOS devices.
The Schmitt Trigger inputs provide improved noise immunity, making the inverter effective in noisy environments.
This inverter is part of the HC logic family, known for low power consumption and high-speed operation.
It is designed for through-hole mounting, facilitating efficient PCB layout.
