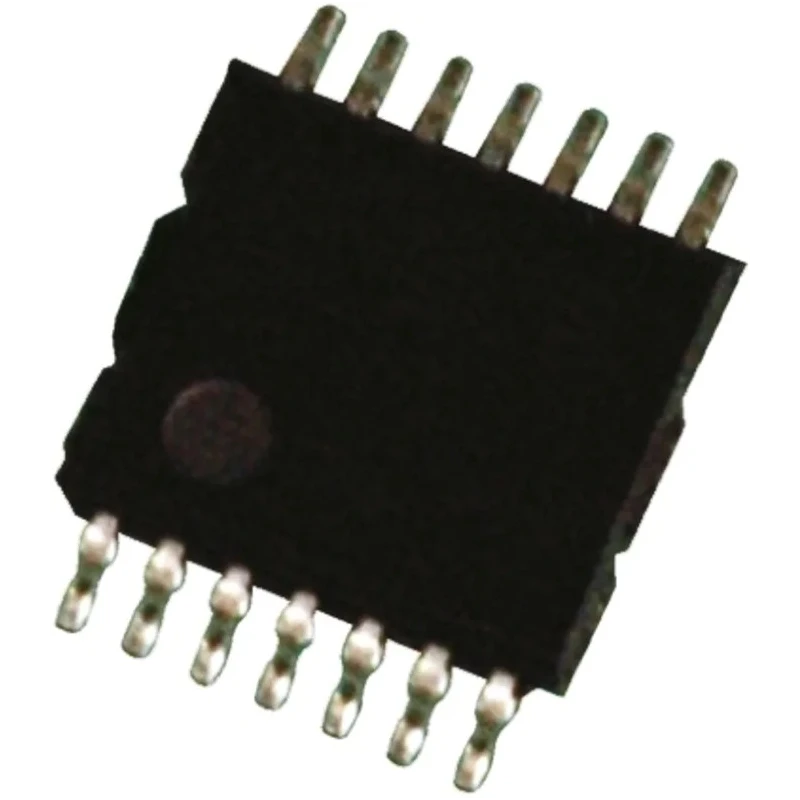

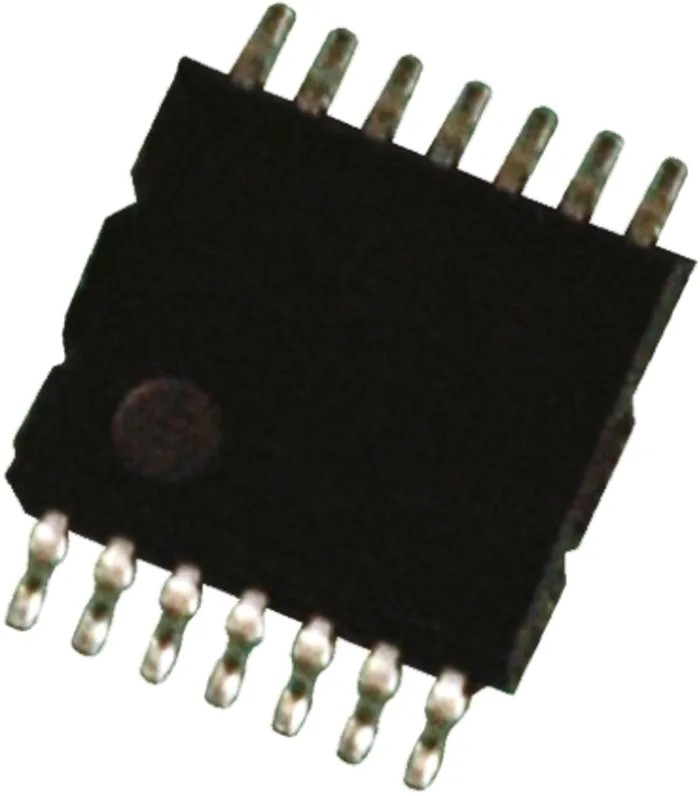

Toshiba CMOS Logic Inverter 6 Elements Digital Output Surface Mount 14-Pin TSSOP TC4069UBFT(N)

Toshiba TC4069UBFT(N) is a CMOS logic inverter IC designed with 6 inverter elements providing digital output in a compact 14-pin TSSOP surface mount package. The device operates efficiently within a supply voltage range of 3V to 18V, making it adaptable to various electronic circuit requirements. Its maximum propagation delay time of 110 nanoseconds ensures swift and reliable inverter operation.

This inverter IC outputs a maximum high-level current of -9mA and a maximum low-level output current of 12mA, ensuring sufficient drive capability for connected components. The device does not feature Schmitt trigger input, aligning with the CMOS logic family 4000 series specifications.

Engineered for robust industrial and commercial electronic applications, it supports operating temperatures from -40°C to 85°C, suitable for use in harsh environments. The compact package size (5 mm length x 4.4 mm width x 1 mm height) promotes easy PCB layout and space saving on crowded boards.

Its TSSOP package and surface mount mount type facilitate modern electronic assembly techniques, commonly applied in logic circuits, signal processing, and digital interfacing within industrial, laboratory, and electronics manufacturing sectors.

Key specifications include: CMOS input type, 14 pins, no Schmitt trigger input, and belonging to the TC4069UB series of logic ICs. This inverter IC is ideal for professionals needing reliable logic signal inversion in embedded systems, power management, and automation devices. It is a fundamental component in semiconductor logic and electronic control devices.

Suitable for surface mount applications with a compact TSSOP package. Wide operating voltage range from 3V to 18V accommodates diverse electronic circuits. Low propagation delay time of 110ns enables rapid signal inversion.

Robust operating temperature range from -40°C to 85°C ensures reliability. Part of Toshiba's TC4000 logic family series, ensuring compatibility. Compact dimensions aid in efficient PCB design and space management. Manufactured in Japan under stringent quality control standards.
