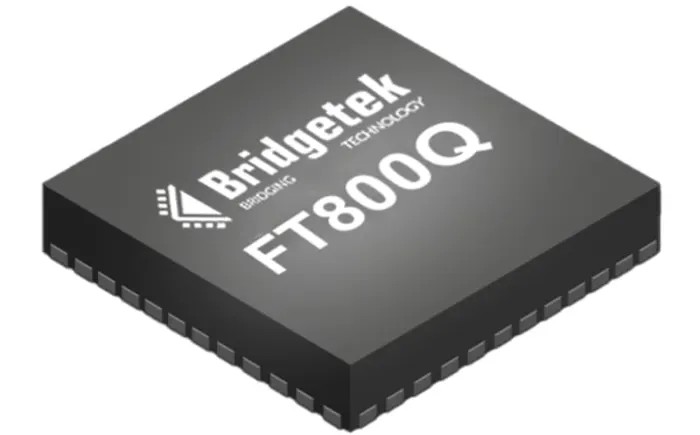

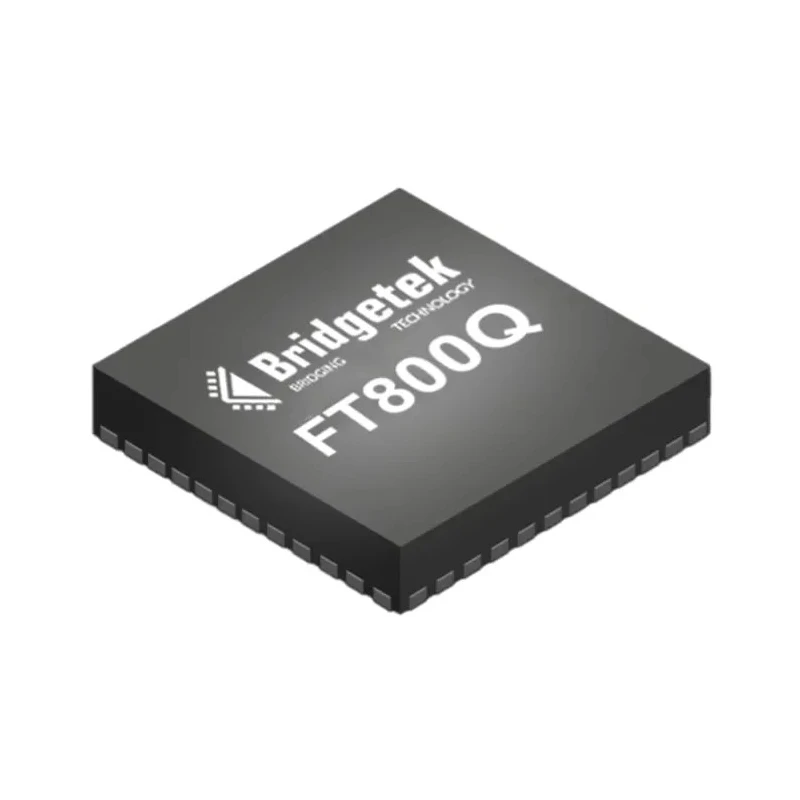

Bridgetek Graphics Controller 48 MHz 512 x 512 pixels 48-Pin QFN FT800Q-R

Bridgetek FT800Q-R is a high-performance graphics controller operating at a maximum frequency of 48 MHz, designed to offer a 512 x 512 pixel resolution. Packaged in a slim 48-pin QFN form factor, it is optimized for embedded systems requiring sophisticated human-machine interface (HMI) capabilities.

This device incorporates the Embedded Video Engine (EVE) technology that significantly reduces system memory requirements by rendering graphics on a line by line basis, thus eliminating the need for a conventional frame buffer RAM. The 1/16th pixel resolution enables precise and smooth visual outputs.

Preloaded with a wide variety of fonts and sound resources stored in ROM, the FT800Q-R facilitates development of rich user interfaces without additional memory overhead. It integrates a 3-in-1 solution combining graphic display control, audio processing, and resistive touch interface control.

Power efficiency is addressed through support for power down, sleep, and standby modes. It operates between supply voltages of 1.8V and 3.3V, adaptable to a variety of embedded system requirements. The built-in sound synthesizer outputs mono audio with pulse-width modulation (PWM) features to control display brightness programmatically.

The device supports true color graphics by employing dithering hardware to translate 24-bit color depth into an 18-bit interface, enhancing display quality for applications such as thermostats, medical devices, instrumentation, home security systems, and graphic touch pads.

Operational temperature range from -40°C to 85°C ensures reliable performance in industrial and commercial environments. The 7 mm length and 0.9 mm height QFN package eases integration into compact embedded systems.

Integrates display, audio, and touch control functions into a single device. Eliminates frame buffer RAM with line-by-line rendering technology. Equipped with built-in fonts and sound ROM for rapid HMI designs. Power-saving modes support low power consumption applications.

Supports PWM output for display brightness adjustment. Wide operating temperature range suited for industrial conditions. Compact surface-mount QFN package for easy PCB integration. Explore the Electronics & Electricals Semiconductor Graphics Controllers category on EnvMart for more high quality embedded display solutions.
