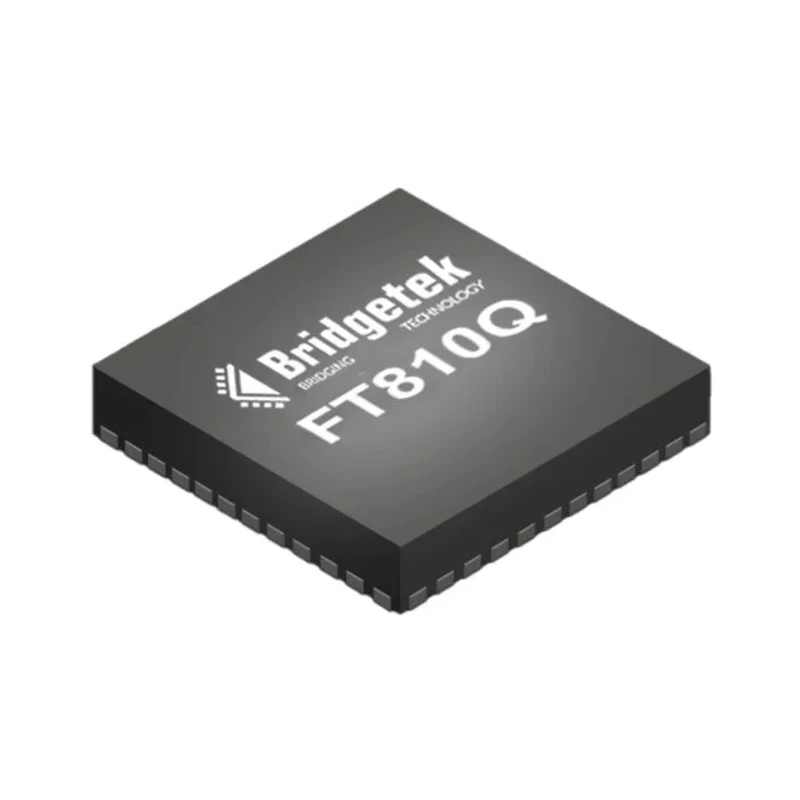

Bridgetek Graphics Controller FT810Q-T 60 MHz SPI Interface 800 x 600 Pixels 48-Pin VQFN
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Bridgetek |
| Height | 0.85mm |
| Length | 7mm |
| Model | FT810Q-T |
| Mount Type | Surface |
| Display Resolution | 800 x 600 pixels |
| Maximum Operating Temperature | 85°C |
| Package Type | VQFN |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Standards/Approvals | RoHS |
| Maximum Frequency | 60MHz |
| Pin Count | 48 |
| Maximum Supply Voltage | 3.3V |
| Minimum Supply Voltage | 1.8V |
| Maximum screen resolution | 800 x 600pixel (SVGA) |
| Video RGB parallel output | 18-bit (FT810/811), 24-bit (FT812/813) |
Key Features
- Operates at a maximum frequency of 60 MHz for fast processing.
- Supports display resolution of 800 x 600 pixels with SPI interface.
- Comes in a compact 48-pin VQFN surface mount package.
- Supports 4-wire resistive touch screens for user interaction.
- Built-in 1MB graphics RAM eliminates need for external frame buffer.
- Capable of playback for motion-JPEG encoded AVI videos.
- Audio playback supports mono 8-bit linear PCM and ADPCM formats.
- Power supply ranges from 1.8V to 3.3V to suit multiple applications.
Product Description
Bridgetek FT810Q-T Graphics Controller is an Embedded Video Engine (EVE) designed to offer enhanced graphics and audio control for embedded systems. It operates at a maximum frequency of 60 MHz and supports a display resolution of 800 x 600 pixels (SVGA), ideal for industrial, consumer electronics, and embedded display applications.
The device features a SPI interface supporting single, dual, or quad data modes with clock speeds up to 30 MHz, enabling fast and efficient communication. The compact 48-pin VQFN surface mount package supports streamlined PCB mounting and integration in space-constrained designs.
Equipped with integrated 1MB graphics RAM, the FT810Q-T eliminates the need for external frame buffer RAM, simplifying system design. It supports playback of motion-JPEG encoded AVI videos and audio wave playback with mono 8-bit linear PCM and 4-bit ADPCM coding formats, covering a variety of embedded multimedia needs.
The graphics controller supports 4-wire resistive touch screens, enabling interactive displays, including touch tag recognition and multiple touch tracking capabilities for advanced user interface designs.
Operates between 1.8V and 3.3V supply voltage range for flexibility in power management. Validated for operation over a wide temperature range from -40°C to +85°C, suitable for harsh industrial environments. Built-in power modes allow sleep, standby, and power down to optimize energy consumption.
Complies with RoHS environmental standards ensuring reduced hazardous substances. Supports hardware recognition of up to 255 touch tags for complex touch inputs. Efficiently handles video RGB parallel output with 18-bit data for FT810/811 models.
This controller is suitable for applications in industrial control panels, embedded displays, consumer electronics, and interfaces requiring reliable high-resolution graphics and touch interaction. Its compact size and versatile interface features also make it ideal for use in manufacturing, automation, and embedded system projects.
Explore more options in our Graphics Controllers category on EnvMart for compatible and advanced display solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FT810Q-T operates at a maximum frequency of 60 MHz, enabling fast processing capabilities for embedded systems.
It supports a display resolution of 800 x 600 pixels (SVGA), suitable for various embedded display applications.
This model utilizes a SPI interface, which supports single, dual, or quad data modes with clock speeds up to 30 MHz for efficient communication.
The FT810Q-T operates over a wide temperature range from -40°C to +85°C, making it suitable for harsh industrial environments.
It comes in a compact 48-pin VQFN surface mount package, which facilitates streamlined PCB mounting and integration.
Yes, it features integrated 1MB graphics RAM, which eliminates the need for an external frame buffer, simplifying system design.
It supports audio playback in mono 8-bit linear PCM and 4-bit ADPCM formats, catering to a variety of embedded multimedia needs.
The power supply for this model ranges from 1.8V to 3.3V, allowing flexibility in power management for different applications.
It supports 4-wire resistive touch screens, enabling interactive displays and advanced user interface designs.
The height of this model is 0.85 mm, which contributes to its compact design.
This graphics controller complies with RoHS environmental standards, ensuring reduced hazardous substances in its construction.
It can recognize up to 255 touch tags, allowing for complex touch inputs in interactive applications.
