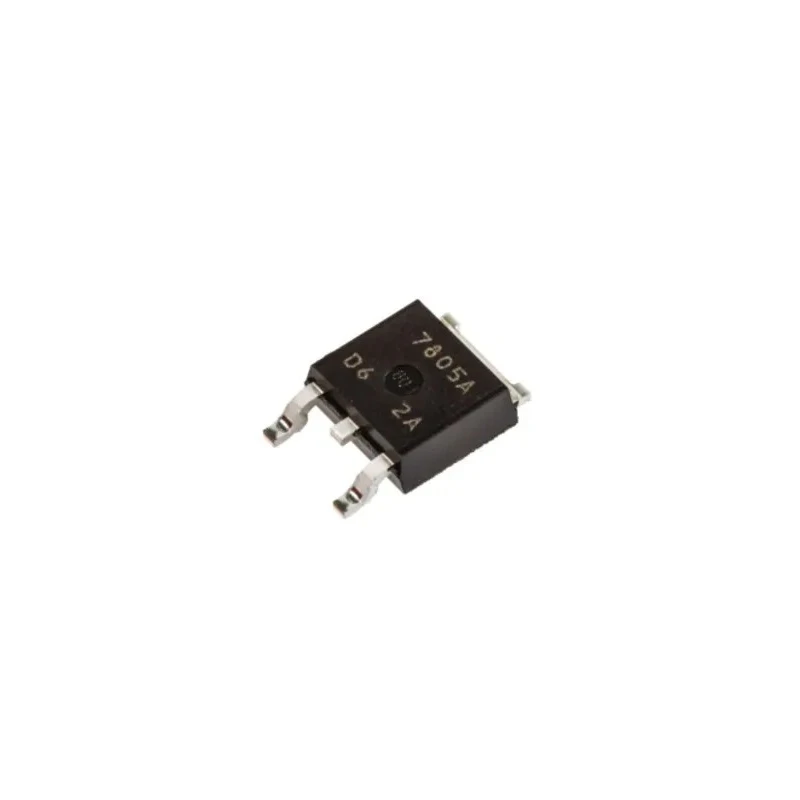

Nisshinbo Micro Devices 1-Channel Linear Voltage Regulator 1.5A 5V NJM7805DL1A-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM7805DL1A-TE1 |
| Mount Type | Surface |
| Series | NJM7800 |
| Output Current | 1.5A |
| Maximum Operating Temperature | 125°C |
| Load Regulation | 100 mV |
| Minimum Operating Temperature | -40°C |
| Regulator Type | Linear Voltage |
| Number of outputs | 1 |
| Maximum Input Voltage | 40V |
| Output Voltage | 5V |
| Quiescent Current | 6mA |
| Line Regulation | 100 mV |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4V |
Key Features
- Operates within input voltage range of 4V to 40V ensuring broad application flexibility.
- Features linear voltage regulation with 100 mV line and load regulation.
- Surface mount package suitable for compact electronic designs.
- Low quiescent current of 6mA reduces power consumption during standby.
- Supports operating temperatures ranging from -40°C to 125°C for reliable performance.
- Compliant with RoHS standards ensuring environmental safety.
- Incorporates internal current limiting and thermal shutdown for device protection.
- Ideal for use in power management circuits within industrial and electronic equipment.
Product Description
Nisshinbo Micro Devices NJM7805DL1A-TE1 is a single-channel linear voltage regulator designed to provide a stable 5V output voltage at a maximum output current of 1.5A. Utilizing advanced JRC Planar epitaxial technology, this regulator offers high reliability and robustness.
Designed for surface mounting, it fits well in compact and high-density PCB designs. Its broad input voltage range from 4V to 40V allows versatile uses in various electronic applications.
The device features low quiescent current of 6mA, making it efficient for power-sensitive systems. It has 100mV line and load regulation which ensures stable output despite variations in input or load.
Robust protection mechanisms including internal current limiting, thermal shutdown, and safe area compensation ensure enhanced durability and protection against damage under fault conditions.
Operating temperature range from -40°C to 125°C makes this voltage regulator suitable for industrial, automotive (non-automotive standard compliant), and consumer electronics environments requiring reliable power management.
The NJM7805DL1A-TE1 complies with RoHS environmental standards, supporting eco-friendly manufacturing and disposal. Operates with input voltage between 4V and 40V. Delivers a steady 5V output voltage at up to 1.5A current.
Low quiescent current of 6mA for energy efficiency. Surface mount package suitable for compact applications. Internal thermal overload and current limiting protections. Line and load regulation each at 100mV to maintain output stability.
RoHS compliant for environmental safety. Designed with bipolar technology for enhanced performance.
This voltage regulator is well-suited for industrial electronics, power management circuits, consumer devices, and other environments demanding reliable linear voltage regulation solutions. Its robust design ensures long-term operational stability and protection.
Explore more Voltage Regulators from Nisshinbo Micro Devices and related products in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a maximum output current of 1.5A.
It operates within an input voltage range of 4V to 40V.
The output voltage of this unit is a stable 5V.
It is designed for surface mounting, making it suitable for compact electronic designs.
The quiescent current is 6mA, which helps reduce power consumption during standby.
Both line and load regulation are specified at 100 mV, ensuring stable output despite variations.
It supports an operating temperature range from -40°C to 125°C.
It includes internal current limiting and thermal shutdown for enhanced protection against damage.
Yes, it is compliant with RoHS standards, ensuring environmental safety.
This model is a linear voltage regulator, designed for stable voltage output.
It is suitable for use in power management circuits within industrial and consumer electronics.
The country of origin for this product is India.
