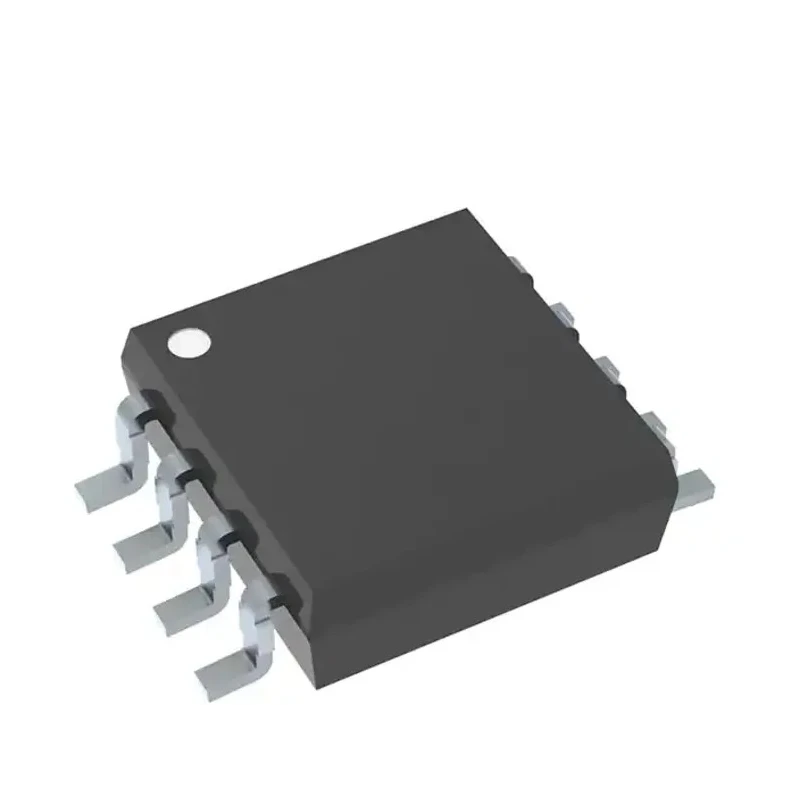

Nisshinbo Micro Devices Dual Operational Amplifier 10 MHz Gain Bandwidth Product Surface Mount TVSP Package NJM2746RB1-TE1

Free Delivery in India | Lowest Global Shipping Charges

Nisshinbo Micro Devices Dual Operational Amplifier 10 MHz Gain Bandwidth Product Surface Mount TVSP Package NJM2746RB1-TE1

Name: Nisshinbo Micro Devices Dual Operational Amplifier 10 MHz Gain Bandwidth Product Surface Mount TVSP Package NJM2746RB1-TE1
Brand: Nisshinbo Micro Devices
SKU: 414469
Price: 1.5 USD
Availability: InStock



Category Operational Amplifier Brand Nisshinbo Micro Devices Condition New

Specifications

Country of Origin	India
Brand	Nisshinbo Micro Devices
Model	NJM2746RB1-TE1
Mount Type	Surface
Series	NJM2746
Maximum Operating Temperature	85°C
Package Type	TVSP
Minimum Operating Temperature	-40°C
Number Of Channels	2
Standards/Approvals	EIA/JEDEC
Pin Count	8
Maximum Supply Voltage	14V
Minimum Supply Voltage	15V
GBP - Gain Bandwidth Product	10MHz
Input Bias Current	350 nA
Vos - Input Offset Voltage	6 mV
Slew Rate	3.5V/μs
Input Offset Current	100 nA

Key Features

This dual operational amplifier operates with a 14V maximum supply voltage.
It features bipolar technology with rail-to-rail input/output capabilities.
The device offers low noise and low distortion for precision amplification.
Included are two channels with an 8-pin configuration for flexible mounting.
The amplifier provides a slew rate of 3.5 V/μs for fast response times.
Designed for operation over a temperature range from -40°C to +85°C.
It has an input offset voltage of 6 mV and an input bias current of 350 nA.
Complies with EIA/JEDEC standards ensuring industry-grade quality and reliability.

Product Description

Nisshinbo Micro Devices NJM2746RB1-TE1 is a dual operational amplifier designed for precision amplification in electronic systems. With a gain bandwidth product of 10 MHz and a maximum supply voltage of 14V, this device features a surface mount TVSP package with 8 pins, making it suitable for compact PCB layouts.

It incorporates bipolar technology with rail-to-rail input and output stages, providing enhanced performance with low noise and distortion. The device supports dual channels, which allow flexible usage in analog signal processing tasks.

The NJM2746RB1-TE1 operates reliably across a wide temperature range from -40°C to +85°C, making it suitable for industrial, instrumentation, and communication applications. Its slew rate of 3.5 V/μs ensures fast signal response, and input offset voltages and bias currents are minimized for accuracy.

The amplifier meets EIA/JEDEC standards and is not certified for automotive use. Its compact surface mount package facilitates automated assembly in high-volume manufacturing. Dual operational amplifier with 10 MHz gain bandwidth.

Surface mount configuration in TVSP 8-pin package. Low distortion and low noise bipolar technology. Wide operating temperature from -40°C to 85°C. Slew rate of 3.5 V/μs supports fast signal changes. Input offset voltage of 6 mV and input bias current of 350 nA.

This product is ideal for use in electronics design, industrial controls, audio systems, instrumentation, and communication devices requiring precision amplifier solutions. Its surface mount capability supports efficient PCB manufacturing processes.
