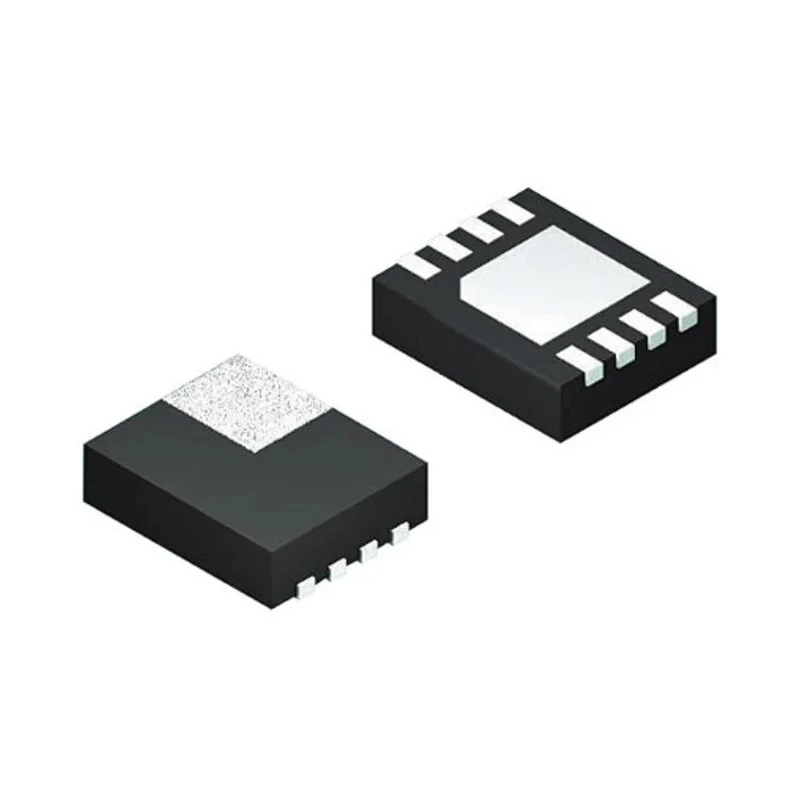

Texas Instruments Buffer IC 1 LVDS 800Mbps Surface Mount 8-Pin LLP DS90LV001TLD/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 800μm |
| Length | 3mm |
| Model | DS90LV001TLD/NOPB |
| Mount Type | Surface |
| Output type | LVDS |
| Series | DS90LV001 |
| Input Type | LVDS |
| Maximum Operating Temperature | 85°C |
| Sub Type | Buffer |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Transmission Data Rate | 800Mbps |
| Differential Input High Threshold Voltage | 100mV |
| Differential Input Low Threshold Voltage | -100mV |
Key Features
- Operates at a transmission data rate of 800 Mbps.
- Designed for surface mount applications with an 8-pin LLP package.
- Supports LVDS input and output for efficient low-voltage differential signaling.
- Features differential input high/low threshold voltages of 100 mV and -100 mV respectively.
- Operating temperature range from -40°C to 85°C for industrial applications.
- Provides Electrostatic Discharge (ESD) protection for enhanced reliability.
- Compact form factor with a height of 800 μm and length of 3 mm.
- Compliant with RoHS standards ensuring environmental safety.
Product Description
Texas Instruments DS90LV001TLD/NOPB is a Buffer IC featuring a single driver and receiver designed specifically for LVDS (Low Voltage Differential Signaling) interface applications. It supports data transmission speeds up to 800 Mbps, making it ideal for high-speed data communication protocols such as Firewire, SATA, and SCSI.
This device comes in a compact 8-pin LLP surface mount package with an ultra-low profile height of 800 micrometers and a length of 3 millimeters, facilitating easy PCB integration in space-constrained environments. It operates from 3 V to 3.6 V power supply, maintaining efficient power usage.
The buffer IC offers robust Electrostatic Discharge (ESD) protection and operates reliably within a wide temperature range of -40°C to 85°C, supporting industrial and commercial applications. The differential input threshold voltages are precisely defined at +100 mV and -100 mV to ensure signal integrity over long distances.
Compliant with RoHS environmental standards, it ensures usage in eco-friendly designs. This buffer IC serves as a repeater and signal conditioner to maintain signal quality in high-speed LVDS interface circuits.
High transmission data rate of 800 Mbps suitable for advanced digital communications. 8-pin LLP package enables surface mounting with low-profile design. Supports LVDS input and output for efficient differential signaling.
Wide operating temperature range of -40°C to 85°C for industrial suitability. ESD protection enhances device durability and reliability. Compliant with RoHS directive ensuring environmental compliance. Compact dimensions with 800 μm height and 3 mm length facilitate PCB design flexibility.
Power supply requirements between 3 V and 3.6 V optimize power consumption. Applications include Firewire, SATA, and SCSI high-speed data links.
This product falls under the LVDS Interface IC category, widely used in semiconductor-based communication and industrial electronics. It is suitable for engineers and designers aiming to implement high-speed differential signaling in embedded systems, data transfer modules, and industrial automation equipment.
Explore EnvMart’s extensive inventory of semiconductor interface ICs for reliable and high-performance components tailored to demanding applications.
Explore more products in our Semiconductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum transmission data rate is 800 Mbps, making it suitable for high-speed data communication applications.
It operates within a temperature range of -40°C to 85°C, which is suitable for industrial applications.
This unit supports LVDS (Low Voltage Differential Signaling) for efficient data transmission.
The dimensions are 800 μm in height and 3 mm in length, allowing for compact PCB integration.
It requires a power supply voltage between 3 V and 3.6 V for operation.
The differential input high threshold voltage is +100 mV, and the low threshold voltage is -100 mV.
Yes, it is compliant with RoHS standards, ensuring environmental safety in its use.
It is designed for surface mounting, which facilitates easy integration into PCB designs.
This unit is suitable for applications such as Firewire, SATA, and SCSI high-speed data links.
It provides Electrostatic Discharge (ESD) protection, enhancing its reliability in various applications.
The country of origin for this buffer IC is India.
