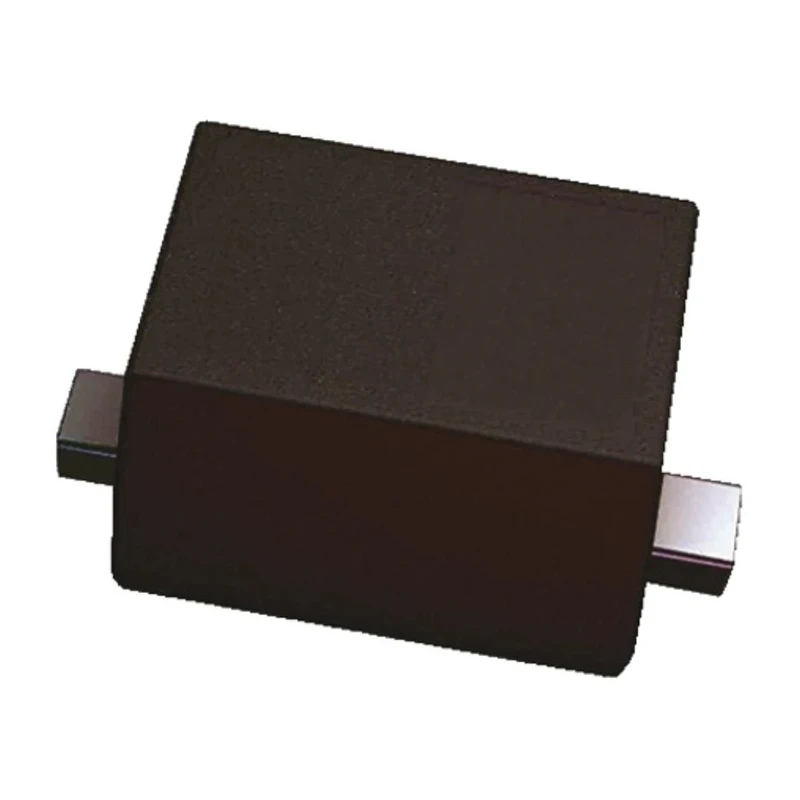

DiodesZetex 30 V 200 mA Surface Mount Switching Diode SOD-523 BAT54WT-7

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex 30 V 200 mA Surface Mount Switching Diode SOD-523 BAT54WT-7

Name: DiodesZetex 30 V 200 mA Surface Mount Switching Diode SOD-523 BAT54WT-7
Brand: DiodesZetex
SKU: 377759
Price: 0.07 USD
Availability: InStock



Category Semiconductors Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	0.65mm
Length	1.3mm
Model	BAT54WT-7
Width	0.9mm
Mount Type	Surface
Series	BAT54WT
Maximum Operating Temperature	150°C
Package Type	SOD-523
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	200mA
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Single
Rectifier Type	Switching
Peak Reverse Current Ir	2μA
Peak Non-Repetitive Forward Surge Current Ifsm	600mA
Maximum Forward Voltage Vf	1V
Peak Reverse Recovery Time trr	5ns

Key Features

Features a compact SOD-523 package suitable for surface mounting.
Capable of handling up to 200 mA continuous forward current reliably.
Low forward voltage drop of 1 V enhances power efficiency.
Operates within a temperature range from -65°C to 150°C ensuring stability in harsh conditions.
Fast peak reverse recovery time of 5 ns suitable for high-speed switching.
Small dimensions with length 1.3 mm, width 0.9 mm, and height 0.65 mm for space-constrained designs.
Peak non-repetitive forward surge current rating of 600 mA for transient conditions.
Manufactured with robust Schottky barrier technology, offering low forward voltage and thermal stability.

Product Description

DiodesZetex BAT54WT-7 is a high reliability surface mount switching diode designed with Schottky barrier technology. It supports a maximum continuous forward current of 200 mA and a peak reverse repetitive voltage of 30 V, making it suitable for a variety of electronic circuits requiring efficient switching.

The compact SOD-523 package ensures easy integration on printed circuit boards with limited space. Its small size with dimensions of 1.3 mm length, 0.9 mm width, and 0.65 mm height suits modern compact designs.

This diode features a low forward voltage drop of 1 V, which contributes to reduced power losses and improved circuit efficiency. It operates reliably over a wide temperature range from -65°C to 150°C, making it applicable in both industrial and automotive environments.

Significant characteristics include a very fast peak reverse recovery time of just 5 nanoseconds and a high peak non-repetitive forward surge current of 600 mA, ensuring excellent performance under transient conditions.

Features a compact SOD-523 package suitable for surface mounting. Capable of handling up to 200 mA continuous forward current reliably. Low forward voltage drop of 1 V enhances power efficiency. Operates within a temperature range from -65°C to 150°C ensuring stability in harsh conditions.

Fast peak reverse recovery time of 5 ns suitable for high-speed switching. Small dimensions with length 1.3 mm, width 0.9 mm, and height 0.65 mm for space-constrained designs. Peak non-repetitive forward surge current rating of 600 mA for transient conditions.

Manufactured with robust Schottky barrier technology, offering low forward voltage and thermal stability. Ideal for industrial, automotive, and consumer electronics applications requiring fast switching diodes.

These technical characteristics make the BAT54WT-7 diode highly suitable for use in industrial automation, consumer electronics, automotive electronics, and other fields requiring reliable, fast-switching Semiconductors.

Explore the comprehensive selection of semiconductor components on EnvMart, including Schottky diodes like the DiodesZetex BAT54WT-7 for your electronic design and manufacturing needs.
