Vishay Schottky Diode 40 V 10 A 3-Pin Surface Mount TO-277 Package SS10P4-M3/86A

Free Delivery in India | Lowest Global Shipping Charges

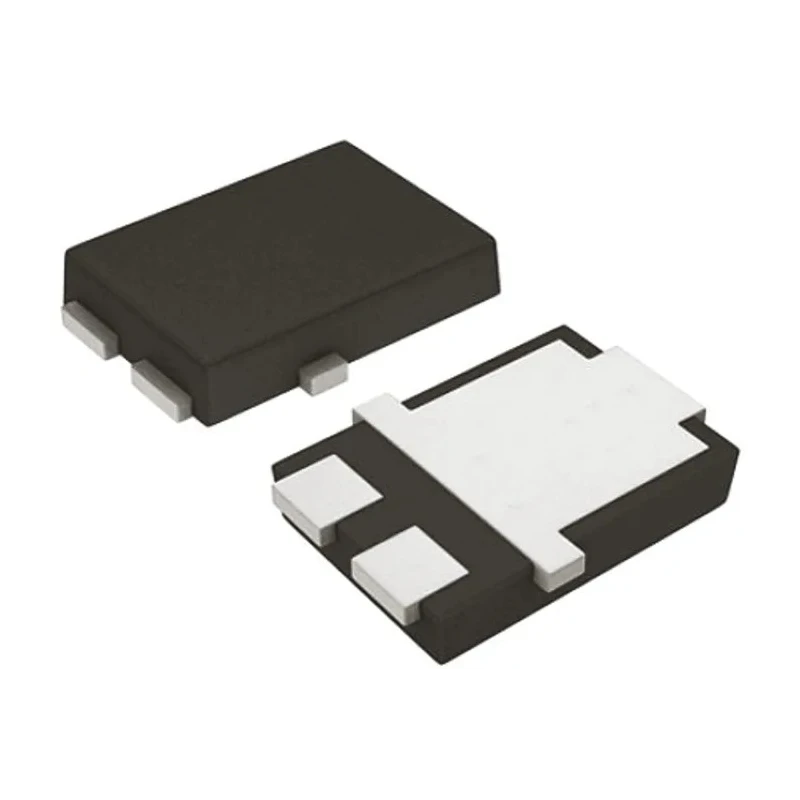

Vishay Schottky Diode 40 V 10 A 3-Pin Surface Mount TO-277 Package SS10P4-M3/86A

Name: Vishay Schottky Diode 40 V 10 A 3-Pin Surface Mount TO-277 Package SS10P4-M3/86A
Brand: Vishay
SKU: 376964
Price: 0.55 USD
Availability: InStock



Category Semiconductors Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	1.2mm
Length	6.15mm
Model	SS10P4-M3/86A
Width	4.35mm
Mount Type	Surface
Series	SS10P4
Maximum Operating Temperature	150°C
Package Type	TO-277
Minimum Operating Temperature	-55°C
Pin Count	3
Maximum Continuous Forward Current If	10A
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	800μA
Peak Non-Repetitive Forward Surge Current Ifsm	280A
Maximum Forward Voltage Vf	560mV

Key Features

Maximum continuous forward current is 10 Amperes.
Peak reverse repetitive voltage rating is 40 Volts.
Packaged in TO-277 with 3 pins for surface mounting.
Maximum forward voltage drop is 560 millivolts for energy efficient operation.
Operational temperature ranges from -55°C to 150°C.
Peak non-repetitive forward surge current rating is 280 Amperes.
Reverse leakage current is up to 800 microamperes.
Produced to high performance Schottky rectifier standards suitable for industrial electronic circuits.

Product Description

Vishay SS10P4-M3/86A is a high performance Schottky diode designed for surface mount applications requiring fast switching and low power loss. It is housed in a TO-277 3-pin package suitable for integration into compact industrial electronic assemblies.

The diode supports a maximum continuous forward current of 10 Amperes and a peak reverse repetitive voltage of 40 Volts, making it suitable for power rectification and protection circuits in electronics and power management.

This Schottky rectifier features a low forward voltage drop of 560 millivolts which helps reduce energy waste and thermal dissipation. It is rated for a peak non-repetitive forward surge current of 280 Amperes, providing robustness during transient surges or spikes.

The device operates reliably within an extended temperature range from -55°C to 150°C, ensuring durability in demanding industrial, commercial, and electronic equipment environments.

Maximum continuous forward current of 10 Amperes enables handling moderate power loads. Peak reverse voltage rating of 40 Volts protects sensitive circuit components. Compact TO-277 3-pin surface mount package eases PCB integration.

Fast switching action minimizes switching losses for improved efficiency. Low forward voltage drop reduces heat generation during conduction. Wide operating temperature range suits harsh industrial conditions. High peak surge current capacity enhances reliability against transients.

Ideal for power rectification, freewheeling, and voltage clamping applications. Manufactured in China to Vishay's quality standards ensuring performance consistency.

This Schottky diode is well-suited for industrial electronics, power supplies, motor drives, communications equipment, and other applications demanding reliable rectification and fast switching.

Explore Vishay components and semiconductor devices on EnvMart for advanced electronic solutions.

Explore more products in our Semiconductors category.
