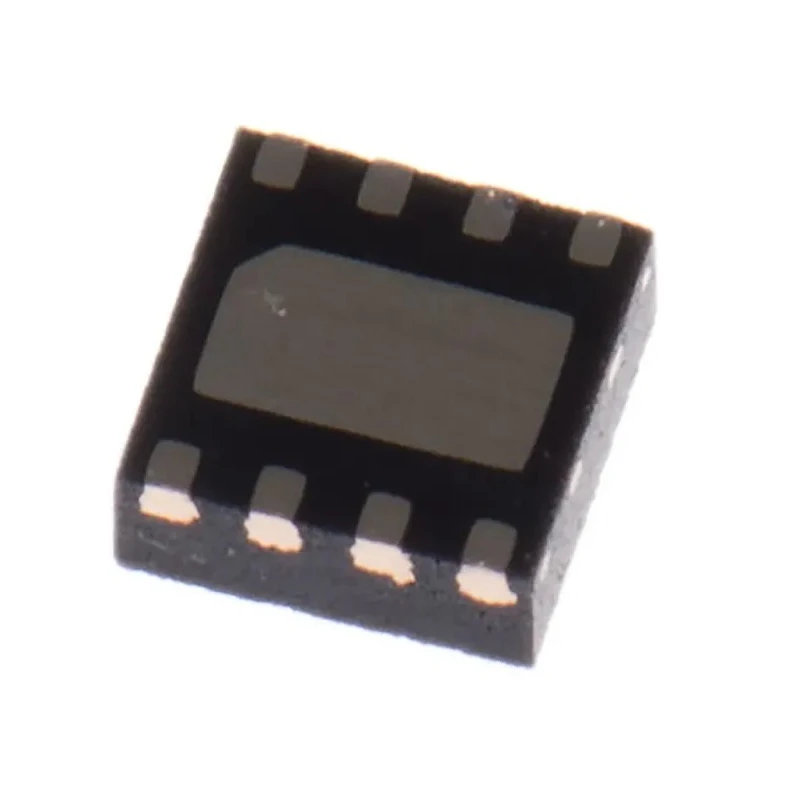

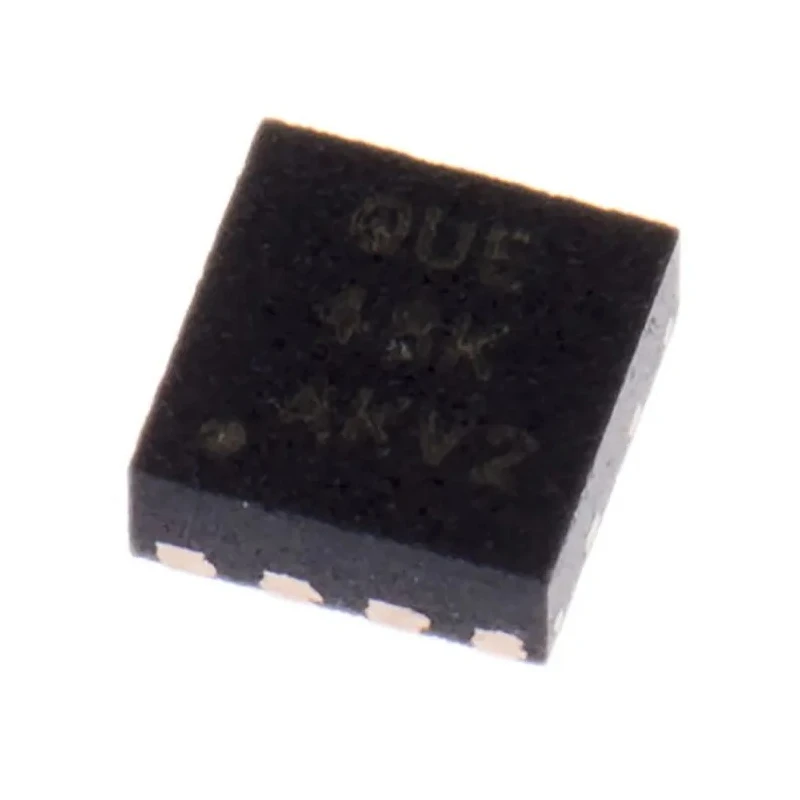

Texas Instruments Receiver IC LVDS Interface, 250Mbps, 8-Pin SON Package, Surface Mount SN65MLVD2DRBT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 950μm |
| Length | 3.15mm |
| Model | SN65MLVD2DRBT |
| Mount Type | Surface |
| Output type | LVDS |
| Series | SN65MLVD2 |
| Input Type | LVDS |
| Maximum Operating Temperature | 85°C |
| Package Type | SON |
| Sub Type | Receiver |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Transmission Data Rate | 250Mbps |
| Differential Input High Threshold Voltage | 35mV |
| Differential Input Low Threshold Voltage | -35mV |
Key Features
- This receiver IC features a single LVDS driver and receiver element.
- It operates within a supply voltage range of 3V to 3.6V, ensuring low power consumption.
- The device offers robust ESD protection for secure operation.
- Operating temperature range spans from -40°C to 85°C for industrial applications.
- Compact 3.15mm length and 950μm height enable efficient PCB space utilization.
- Designed for differential signaling with ±35mV input threshold voltages.
- RoHS compliant ensuring environmental safety standards are met.
Product Description
Texas Instruments SN65MLVD2DRBT is a high-performance LVDS receiver IC designed for reliable low voltage differential signaling (LVDS) communication at data rates up to 250Mbps. The 8-pin SON package with compact dimensions (3.15mm length, 950μm height) allows surface mounting on PCBs with efficient space usage.
This receiver IC integrates one driver and one receiver element specially optimized for balanced or unbalanced data transmission through LVDS networks. Its operation within a 3V to 3.6V supply voltage range reduces power consumption and supports robust electrical performance.
The SN65MLVD2DRBT provides differential input threshold voltages of +35mV and -35mV, which enable precise data reception in noisy industrial or computing environments. Enhanced by built-in ESD protection, the IC ensures high reliability and long-term operational stability.
Capable of operating across a wide temperature range from -40°C to 85°C, this LVDS receiver IC is suitable for demanding industrial, computing, and communication applications including Firewire, SATA, and SCSI interfaces.
This device is RoHS compliant, meeting key environmental requirements for electronic component manufacturing. Standard SON package facilitates surface mounting in compact electronic designs. Applications include high-speed data transmission systems and digital communications infrastructure.
Its small footprint and low power make it ideal for use in industrial electronics and embedded systems.
The SN65MLVD2DRBT enhances design efficiency and reliability when integrated into LVDS communication networks. For more components and interface ICs from Texas Instruments, explore EnvMart's extensive semiconductor selection.
Explore more products in our Semiconductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This receiver IC supports a maximum data transmission rate of 250Mbps, making it suitable for high-speed communication applications.
The SN65MLVD2DRBT operates within a supply voltage range of 3V to 3.6V, which helps to reduce power consumption.
This model has a compact length of 3.15mm and a height of 950μm, allowing for efficient PCB space utilization.
It can operate within a temperature range of -40°C to 85°C, making it suitable for industrial applications.
The device comes in an 8-pin SON package, which is designed for surface mounting on PCBs.
It supports LVDS (Low Voltage Differential Signaling) for both input and output, enabling reliable data transmission.
Yes, it includes robust ESD protection, ensuring secure operation in various environments.
This IC integrates one driver and one receiver element, optimized for balanced or unbalanced data transmission.
Yes, it is RoHS compliant, meeting important environmental safety standards for electronic components.
It is designed for high-speed data transmission systems and digital communications infrastructure, including interfaces like Firewire, SATA, and SCSI.
The device features differential input threshold voltages of +35mV and -35mV, allowing for precise data reception.
The country of origin for this receiver IC is India.
