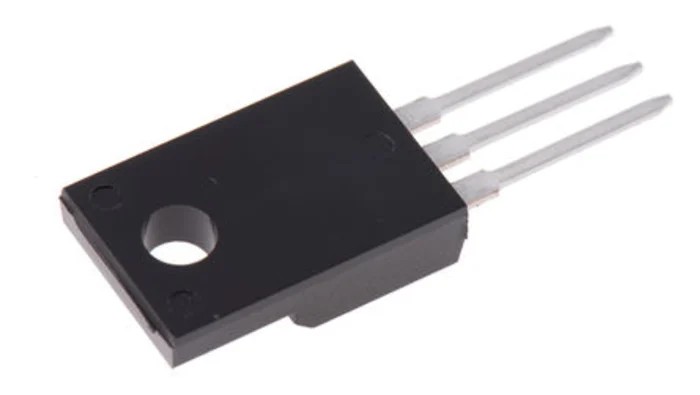

Vishay 200 V 18 A Ultrafast Rectifier General Purpose 3-Pin TO-220F BYVF32-200-E3/45

Vishay BYVF32-200-E3/45 is a high-performance ultrafast rectifier diode designed for general purpose applications requiring rapid switching and low recovery times. This 3-pin device is housed in a durable TO-220F package suitable for through-hole mounting, optimizing installation in power electronics circuits. Rated for a peak reverse repetitive voltage (VRRM) of 200 volts and a maximum continuous forward current of 18 amperes, it ensures stable operation under demanding electrical loads.

The ultrafast recovery time of 25 nanoseconds reduces switching losses significantly, benefiting applications in power conversion, inverter circuits, and high-frequency rectification. The device maintains reliable operation across a wide temperature range from -65°C to 150°C, making it robust for industrial and automotive environments.

This rectifier also provides a peak non-repetitive forward surge current (IFSM) of 150 amperes, allowing it to handle transient bursts safely. The maximum forward voltage drop of 1.15 volts minimizes conduction losses, increasing overall circuit efficiency. The common cathode diode configuration is versatile for a variety of rectification circuit topologies.

Certified to automotive and global standards including AEC-Q101, JESD 201, JESD 22-B102, JESD 22-B106, J-STD-002, RoHS compliance, and UL 94 V-0 flammability rating, this diode meets stringent quality and safety benchmarks. Compact physical dimensions of 4.83 mm width, 15.24 mm height, and 10.26 mm length facilitate integration in tight PCB layouts.

Provides ultrafast recovery time of 25 nanoseconds. Features maximum continuous forward current rating of 18 amperes. Designed for through-hole mounting with TO-220F package type. Operates reliably from -65°C up to 150°C.

Peak non-repetitive forward surge current of 150 amperes. Maximum forward voltage drop of 1.15 volts ensures efficient conduction. Peak reverse current of 600 microamperes at rated conditions. Common cathode diode configuration suitable for general purpose rectification.

Compliance with automotive standard AEC-Q101 and multiple industrial certifications. Compact dimensions: width 4.83 mm, height 15.24 mm, length 10.26 mm.

Ideal for industrial power conversion, automotive electronics, and high-frequency rectifier solutions, the Vishay BYVF32-200-E3/45 ultrafast rectifier ensures efficiency and reliability in demanding applications. Explore more semiconductor devices and related components to optimize your electronic design at EnvMart.
