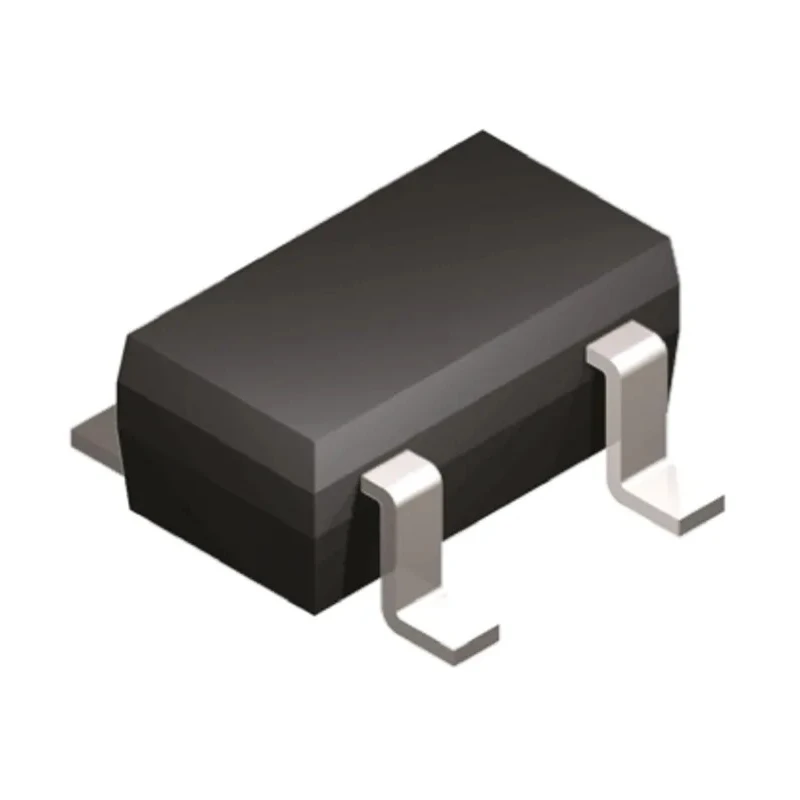

onsemi 1 2-Input AND Logic Gate, 5-Pin TSOP MC74VHC1G08DTT1G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Operating Voltage Range | 2.0 to 5.5V |
| Model | MC74VHC1G08DTT1G |
Key Features
- This logic gate operates within a voltage range of 2.0 to 5.5 V.
- It is part of the 74VHC1G family known for advanced high-speed low-power CMOS logic.
- The device contains a single gate with 2 inputs.
- The package type is 5-pin Thin Small Outline Package (TSOP) with compact dimensions.
- The output type is buffer, single-ended, providing reliable signal integrity.
- The logic function implemented is AND, useful for digital logic circuits requiring this operation.
- Operating temperature ranges from -55 °C to +125 °C, ensuring robust performance under various conditions.
- Inputs are CMOS compatible with 7 V tolerant inputs, supporting versatile interfacing.
Product Description
onsemi MC74VHC1G08DTT1G 1 2-Input AND Logic Gate in 5-Pin TSOP package is part of the 74VHC1G family which offers advanced high-speed silicon-gate CMOS logic technology designed for low power dissipation and improved speed performance compared to bipolar Schottky TTL equivalents.
This logic gate device operates in a voltage range from 2.0 V up to 5.5 V, making it highly versatile for various logic level operations. It houses a single AND logic gate with two inputs designed for digital circuit designs requiring precise logic control.
The compact 5-pin Thin Small Outline Package (TSOP) measures approximately 3 mm in length, 1.5 mm in width, and 1 mm in height, facilitating easy mounting on PCBs with limited space. The inputs are CMOS types supporting 7 V tolerant input levels which enhances noise immunity and flexibility in interfacing with other components. The output is a single-ended buffer type suitable for driving logic signals.
Operational ambient temperature ranges from -55 °C to +125 °C, accommodating industrial environments and robust electronics applications. The maximum output current rating is ±8 mA for both high and low levels, ensuring reliable switching performance.
This high-speed low-power device is well-suited for industrial automation, control systems, instrumentation, and general-purpose digital logic circuitry. This logic gate operates within a voltage range of 2.0 to 5.5 V. Single 2-input AND gate in a compact 5-pin TSOP package.
7 V tolerant CMOS inputs for robust interfacing. High-speed silicon-gate CMOS logic technology. Output current of ±8 mA to support various load conditions. Operating temperature range from -55 °C to +125 °C. Compact dimensions of approximately 3 mm x 1.5 mm x 1 mm.
Suitable for industrial, commercial, and embedded electronics. Explore more semiconductor logic gate components and find industrial-grade logic ICs on EnvMart for reliable electronic circuit design solutions.
