Taiwan Semiconductor Silicon Junction Switching Diode, Single, 1 A, 2-Pin DO-41 Package FR106G R0

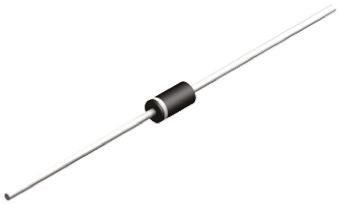

Taiwan Semiconductor FR106G R0 is a highly reliable silicon junction switching diode designed for use in electronic circuits requiring single diode configuration with 1 ampere maximum forward current. It is housed in a compact DO-41 package suitable for through-hole mounting on printed circuit boards.

This diode supports a maximum peak reverse repetitive voltage of 800 volts, making it ideal for rectification and switching applications in industrial, laboratory, and commercial electronic equipment. The device operates efficiently with a maximum forward voltage drop of 1.3 volts, minimizing power loss during conduction.

The FR106G R0 features a fast peak reverse recovery time of 500 nanoseconds, beneficial for high-speed switching in power management circuits and signal processing applications. It can tolerate a peak non-repetitive forward surge current of 30 amperes, providing robustness against transient surges commonly encountered in industrial environments.

The thermal operating range from -55 to 150 degrees Celsius ensures stable performance across harsh environmental conditions. Its dimensions are 5.2 mm length with a 2.7 mm diameter, enabling usage in compact designs. The diode is manufactured in China and complies with industry standards but has no specific certifications or automotive approvals.

Maximum forward current of 1 A for steady-state use. Peak repetitive reverse voltage rated at 800 V. Fast recovery time of 500 ns suitable for switching circuits. Operating temperature range from -55 to 150 °C. Through-hole DO-41 package for reliable PCB mounting.

Peak non-repetitive surge current up to 30 A for transient robustness. Compact size with 5.2 mm length and 2.7 mm diameter.

This diode is widely used in power supplies, rectification circuits, industrial control systems, and electronic instrumentation. It meets the requirements for reliable and efficient switching performance in demanding electrical and electronic applications.
