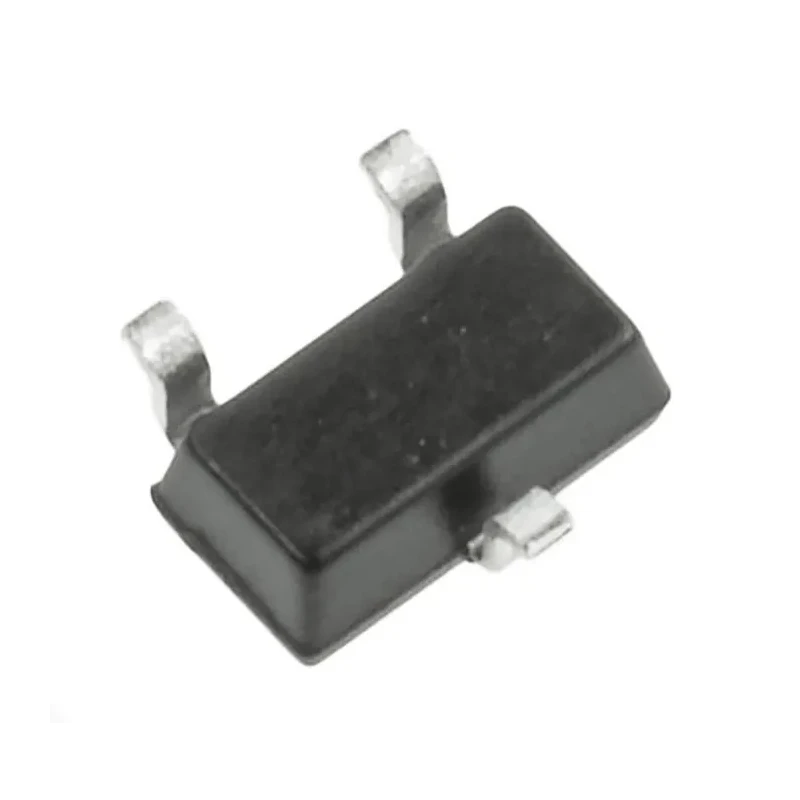

DiodesZetex 70 V 70 mA Switching Diode 3-Pin Surface Mount SC-70 BAS70W-06-7-F

DiodesZetex BAS70W-06-7-F is a high-performance switching diode designed for use in electronic circuits requiring low forward voltage and fast switching capabilities. This Schottky barrier diode configuration delivers stable performance with a continuous forward current of 70 mA and a peak reverse voltage tolerance of 70 V.

Featuring a 3-pin surface mount SC-70 package, the diode is ideally suited for compact and densely populated printed circuit boards. It exhibits a low maximum forward voltage of 1 V, which minimizes power losses and heat generation, enhancing energy efficiency in electronic devices.

The diode operates effectively over an extensive temperature range from -55°C to 125°C, making it adaptable for industrial, commercial, and laboratory environments. Its rapid peak reverse recovery time of 5 ns supports high-speed switching applications, critical for communication and power management circuits.

Physical dimensions are precise and space-saving, with a length of 2.2 mm, width of 1.35 mm, and height of 1 mm. Though this diode lacks specific automotive certification, it is recommended for general semiconductor switching applications requiring reliability and efficiency.

The diode supports continuous forward current up to 70 mA. Peak reverse repetitive voltage rating of 70 V ensures robust operation under transient voltages. Very low forward voltage drop (1 V) aids energy savings. High temperature tolerance allows for versatility across various industrial scenarios.

Small footprint SC-70 package ideal for modern electronics. Peak reverse current controlled at 100 nA for effective switching. Capable of handling surge currents up to 100 mA. Fast switching speed with peak reverse recovery time of 5 ns.

Compact dimensions allow use in space-constrained designs. No automotive certification but reliable for industrial use.

This diode is widely used in electronics manufacturing, power supply circuits, communication devices, and semiconductor systems. It offers designers a combination of low power loss, fast switching, and thermal stability, making it a suitable component for various high-frequency and low voltage applications.
