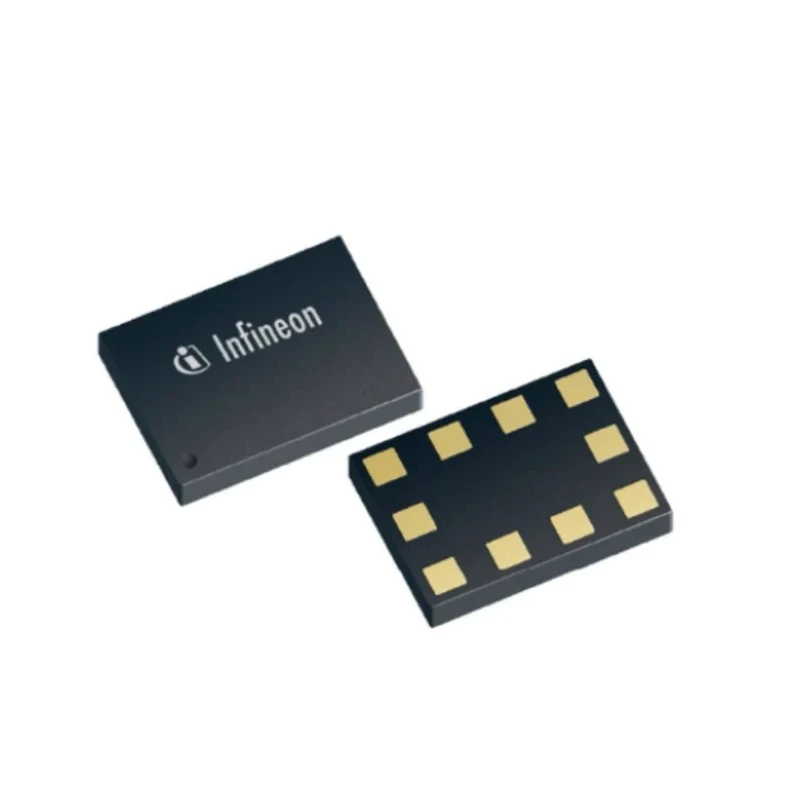

Infineon RF Switch Single-Pole Four Throw (SP4T) Antenna Tuning Switch 10-Pin TSLP BGSA147ML10E6327XTSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 0.39mm |
| Length | 1.5mm |
| Model | BGSA147ML10E6327XTSA1 |
| Width | 1.1mm |
| Mount Type | Surface |
| Series | BGSA147ML10 |
| Package Type | TSLP |
| Sub Type | Single-Pole Four Throw (SP4T) Antenna Tuning Switch |
| Interface Type | RF, MIPI |
| Standards/Approvals | RoHS, WEEE |
| Pin Count | 10 |
| Operating Band 1 Frequency | 7.13GHz |
| Number of Operating Bands | 1 |
Key Features
- The device supports a MIPI RFFE digital control interface for flexible implementation in cellular mobile RF front end designs.
- It features a 10-pin TSLP package with surface mount type.
- No RF parameter change occurs within the supply voltage range ensuring signal stability.
- The switch does not require blocking capacitors if no DC is applied on the RF lines.
- No power supply decoupling is required, simplifying design integration.
- Compact dimensions with length 1.5 mm, width 1.1 mm, and height 0.39 mm.
- RoHS and WEEE compliant ensuring environmental standards.
Product Description
Infineon BGSA147ML10E6327XTSA1 is a single pole four throw (SP4T) RF switch optimized for antenna tuning up to a frequency of 7.13 GHz, suitable for advanced RF applications in communication and wireless modules.
This RF switch uses a 10-pin thin small leadless package (TSLP) with surface mount technology, offering a compact footprint (1.5 mm length, 1.1 mm width, 0.39 mm height) ideal for cellular mobile front-end module designs.
Equipped with a MIPI RFFE digital control interface, the device allows easy and flexible control over the RF path switching without the need for additional blocking capacitors or power supply decoupling, providing stable RF performance across the supply voltage range.
Compliant with RoHS and WEEE standards, the BGSA147ML10E6327XTSA1 ensures environmental safety and regulatory adherence for use in commercial and industrial wireless communication systems.
The device supports efficient antenna tuning with four throws from a single pole configuration. Compact surface mount package minimizes PCB space usage for modern mobile and wireless equipment. The switch maintains RF integrity without parameter variation over voltage range.
Installation and circuit design are simplified when no DC bias is applied to RF lines. The product is suitable for use in telecommunications, mobile devices, and other RF front-end applications. RoHS and WEEE compliance facilitates adoption in environmentally regulated electronic products.
Dimensionally optimized for space-constrained PCB layouts.
This RF switch is ideal for engineers designing high-frequency antenna control systems and cellular mobile front ends requiring reliable and low-distortion RF Switching performance. It fits within broader semiconductor and RF IC product categories on EnvMart, serving industrial, manufacturing, telecommunications, and wireless communication sector users.
Explore more RF ICs and semiconductor components on EnvMart to find compatible parts and design solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Infineon BGSA147ML10E6327XTSA1 RF switch operates up to a frequency of 7.13 GHz, making it suitable for advanced RF applications in communication and wireless modules.
This RF switch has compact dimensions of 1.5 mm in length, 1.1 mm in width, and 0.39 mm in height, making it ideal for space-constrained PCB layouts.
It features a MIPI RFFE digital control interface, allowing for flexible implementation in cellular mobile RF front-end designs.
The device is compliant with RoHS and WEEE standards, ensuring it meets environmental safety and regulatory requirements.
This model uses surface mount technology, which is advantageous for modern electronic designs.
The Infineon BGSA147ML10E6327XTSA1 features a 10-pin configuration, facilitating its connection in electronic circuits.
It comes in a 10-pin TSLP (Thin Small Leadless Package), which is designed for compact applications.
This model is suitable for telecommunications, mobile devices, and other RF front-end applications, particularly in wireless communication systems.
The operating band frequency for this RF switch is 7.13 GHz, optimized for antenna tuning.
The compact dimensions of 1.5 mm x 1.1 mm x 0.39 mm minimize PCB space usage, which is critical for modern mobile and wireless equipment designs.
The Infineon BGSA147ML10E6327XTSA1 is manufactured in India, contributing to its global availability.
