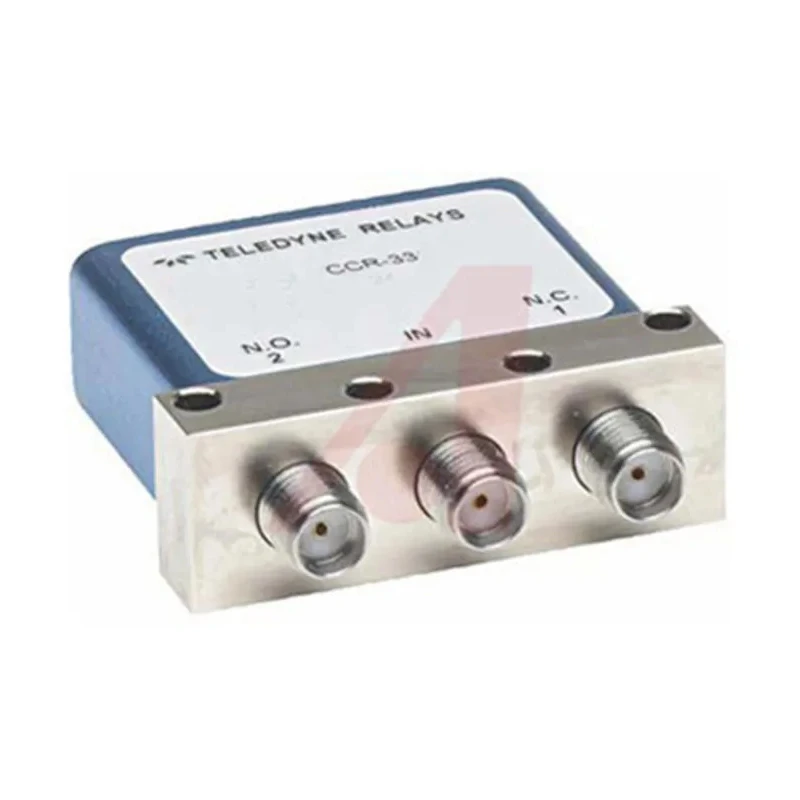

Teledyne RF Switch SMA Female Connector SPDT 18 GHz Max 60 dB Isolation 20 ms Switching Speed 50Ω Output CCR-33S3C
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Teledyne |
| Height | 46.23mm |
| Length | 38.1mm |
| Model | CCR-33S3C |
| Connector Type | SMA Female |
| Width | 13.21mm |
| Output Impedance | 50Ω |
| Series | CCR-33 |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Maximum Frequency | 18GHz |
| Contact DC Voltage | 12V dc |
| Contact Current | 200mA |
| Minimum Frequency | 0GHz |
| Maximum Insertion Loss | 0.5dB |
| Port to Port Isolation | 60dB |
Key Features
- The switch features an SMA female connector with SPDT contact configuration.
- Maximum insertion loss is 0.5 dB ensuring minimal signal degradation.
- Output impedance is 50Ω, matching common RF standards.
- Operates reliably between -40°C and 65°C ambient temperature.
- Contact voltage rating is 12V DC and contact current rating is 200 mA.
- Compact dimensions with length 38.1 mm, width 13.21 mm, and height 46.23 mm.
- Professional-grade CCR-33 series with failsafe actuator design.
- Made in Taiwan, Province Of China.
Product Description
Teledyne CCR-33S3C RF Switch is a professional-grade solid state relay designed for efficient switching of microwave signals from a common input to either of two outputs. It features SPDT contact configuration and an SMA female connector optimized for frequencies up to 18 GHz.
This RF switch delivers 60 dB port to port isolation, minimizing crosstalk, and has a fast switching speed of 20 ms. Its maximum insertion loss is 0.5 dB, ensuring signal integrity is maintained throughout operation.
The device supports a contact DC voltage of 12V and current up to 200 mA, making it suitable for various RF signal routing applications. It operates reliably in temperature ranges from -40°C to 65°C, supporting use in demanding industrial and laboratory environments.
The compact form factor with precise dimensions (38.1 mm length, 13.21 mm width, and 46.23 mm height) enables easy integration into existing systems. The CCR-33 series switches include failsafe actuators for enhanced operational reliability.
Originating from Taiwan, Province Of China, this RF switch is ideal for telecommunications, manufacturing, test and measurement, and automation systems requiring high frequency switching with low loss and fast response.
The switch features an SMA female connector with SPDT contact configuration. Maximum insertion loss is 0.5 dB ensuring minimal signal degradation. Output impedance is 50Ω, matching common RF standards. Operates reliably between -40°C and 65°C ambient temperature.
Contact voltage rating is 12V DC and contact current rating is 200 mA. Compact dimensions with length 38.1 mm, width 13.21 mm, and height 46.23 mm. Professional-grade CCR-33 series with failsafe actuator design. Made in Taiwan, Province Of China.
Suitable for industrial, laboratory, and communications applications requiring rapid signal routing. Explore the range of Teledyne RF Switches for reliable and high-performance switching solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This RF switch supports a maximum frequency of 18 GHz, making it suitable for high-frequency applications.
The CCR-33S3C features a Single Pole Double Throw (SPDT) contact configuration, allowing for efficient signal routing between two outputs.
The maximum insertion loss for this model is 0.5 dB, ensuring minimal signal degradation during operation.
This RF switch provides a port-to-port isolation of 60 dB, which helps to minimize crosstalk between signals.
The dimensions of this model are 38.1 mm in length, 13.21 mm in width, and 46.23 mm in height, allowing for compact integration into systems.
The output impedance of this RF switch is 50Ω, which matches common RF standards for optimal performance.
It operates reliably within a temperature range of -40°C to 65°C, suitable for various industrial and laboratory environments.
The contact voltage rating is 12V DC, and the contact current rating is 200 mA, making it compatible with various RF applications.
This model uses an SMA female connector, which is commonly used in RF applications for its reliable performance.
This RF switch is part of the CCR-33 series, known for its professional-grade performance and failsafe actuator design.
The CCR-33S3C is manufactured in Taiwan, Province Of China, ensuring high standards of production.
This RF switch is suitable for telecommunications, manufacturing, test and measurement, and automation systems requiring high-frequency switching.
