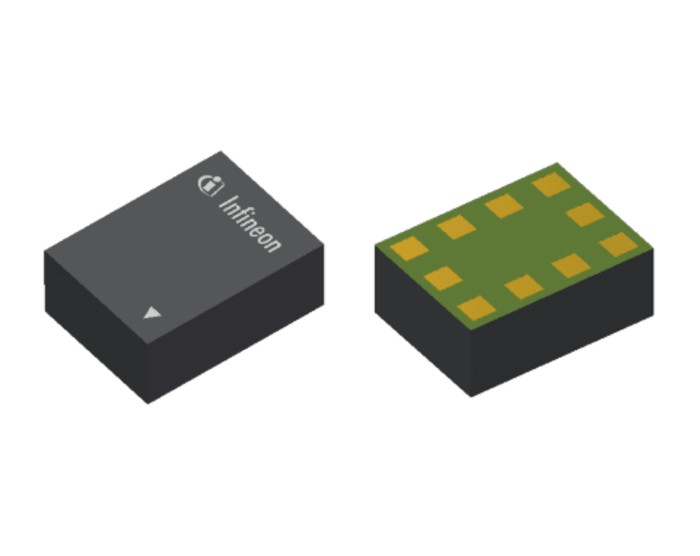

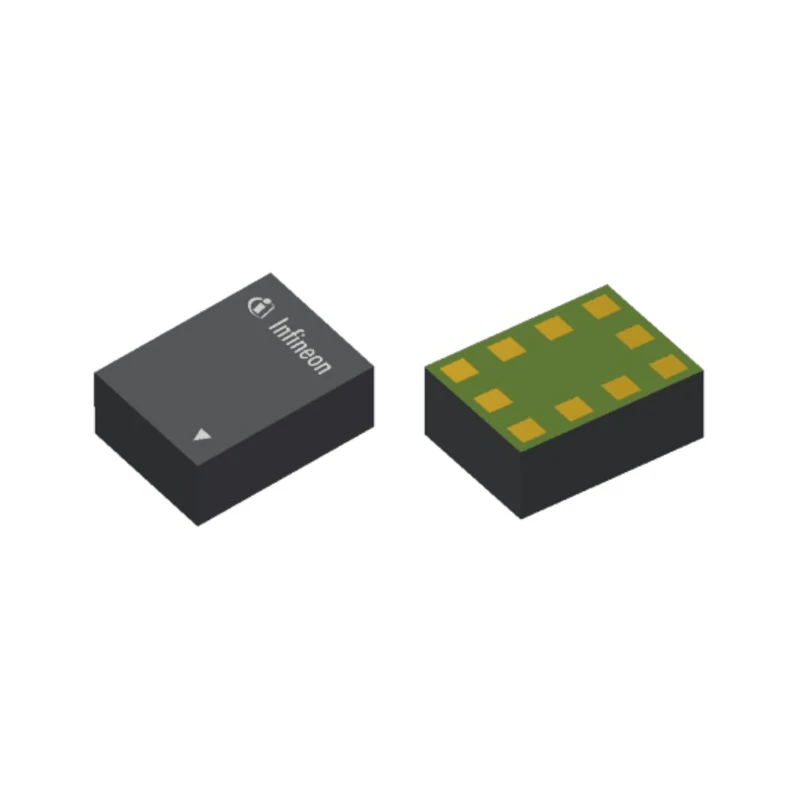

Infineon RF Switch Circuit MOS Technology 10-Pin ATSLP Surface Mount, 1.65-3.6V, 0.1-6GHz Operating BGSX22G5A10E6327XTSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 0.55mm |
| Length | 1.5mm |
| Model | BGSX22G5A10E6327XTSA1 |
| Technology | MOS Technology |
| Width | 1.1mm |
| Mount Type | Surface |
| Series | BGSX 22G 5A 10 |
| Maximum Operating Temperature | 125°C |
| Package Type | ATSLP |
| Minimum Operating Temperature | -40°C |
| Interface Type | GPIO |
| Standards/Approvals | RoHS and WEEE |
| Pin Count | 10 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.65V |
| Operating Band 1 Frequency | 0.1GHz |
| Operating Band 2 Frequency | 6GHz |
| Number of Operating Bands | 2 |
Key Features
- Operates at low supply voltages between 1.65V and 3.6V to support modern compact RF systems.
- Wide operating temperature range from -40°C to 125°C suitable for harsh environments.
- MOS technology ensures low insertion loss for high-frequency signal paths.
- GPIO interface enables simple and repeatable digital control of RF switching states.
- Compact 10-pin ATSLP package facilitates integration on space-constrained PCBs.
- Designed for handsets, IoT modules, antenna multiplexers, and wireless sensor nodes.
- Compliant with RoHS and WEEE environmental standards for regulatory assurance.
- Surface mount design supports automated assembly and minimal footprint applications.
Product Description
Infineon BGSX22G5A10E6327XTSA1 is an advanced RF switch circuit utilizing MOS technology tailored for surface mount applications. This product operates between 1.65V and 3.6V, making it highly suitable for low-voltage, compact electronic designs.
The RF switch efficiently routes signals across a broad frequency range from 0.1GHz to 6GHz, accommodating diverse wireless communication needs.
Featuring a 10-pin ATSLP package and GPIO interface, the device provides precise digital control over switching states, enabling seamless integration on compact boards and IoT modules.
Its operating temperature range spans from -40°C to 125°C, ensuring reliable performance even in harsh industrial or outdoor environments.
Applications include handsets, portable RF front-ends, antenna multiplexers in multi-band wireless devices, test fixtures requiring repeatable RF switching, and compact wireless sensor nodes.
Operates at low supply voltage from 1.65V to 3.6V suitable for compact systems. Supports wide frequency range switching from 0.1GHz to 6GHz. MOS technology minimizes insertion loss for high-frequency signal paths. GPIO interface enables straightforward digital control of switch states.
Compact 10-pin ATSLP surface mount package for dense PCB layouts. Wide operating temperature tolerance from -40°C to 125°C for harsh environments. Complies with RoHS and WEEE environmental directives. Ideal for handsets, IoT modules, antenna multiplexers, test equipment, and sensor nodes.
Designed for efficient, low-voltage discrete RF switching. Not suitable for automotive applications as it lacks automotive certification. This RF switch circuit exemplifies Infineon's commitment to high-performance components meeting modern wireless communication and industrial requirements.
Browse more RF Switches and communication ICs at EnvMart for professional electronic component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a supply voltage range of 1.65V to 3.6V, making it suitable for low-voltage applications.
It supports a wide operating frequency range from 0.1GHz to 6GHz, accommodating various wireless communication needs.
The BGSX22G5A10E6327XTSA1 comes in a compact 10-pin ATSLP surface mount package.
This unit features a GPIO interface, allowing for straightforward digital control of RF switching states.
The dimensions are as follows: height is 0.55mm, length is 1.5mm, and width is 1.1mm.
It utilizes MOS technology, which is designed to ensure low insertion loss for high-frequency signal paths.
Yes, it complies with RoHS and WEEE environmental standards for regulatory assurance.
The maximum operating temperature is 125°C, and the minimum is -40°C.
Key features include low supply voltage operation, a wide frequency range, a GPIO interface for digital control, and a compact 10-pin package.
The country of origin for this model is India.
