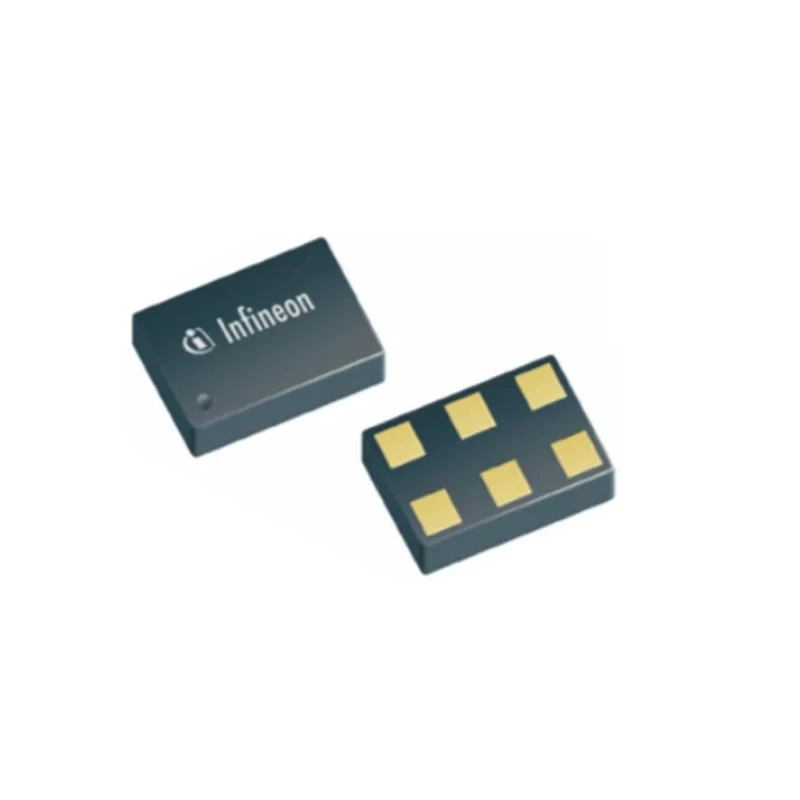

Infineon RF MOS Power Switch Circuit SPDT General Purpose 6-Pin TSLP 50MHz to 6GHz 1.65V-3.4V BGS12P2L6E6327XTSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 0.31mm |
| Length | 0.7mm |
| Model | BGS12P2L6E6327XTSA1 |
| Technology | RF MOS Power Switch |
| Width | 1.1mm |
| Mount Type | Surface |
| Series | BGS12P2L6 |
| Maximum Operating Temperature | 85°C |
| Package Type | TSLP |
| Sub Type | SPDT General Purpose Switch |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS and WEEE |
| Pin Count | 6 |
| Maximum Supply Voltage | 3.4V |
| Minimum Supply Voltage | 1.65V |
| Operating Band 1 Frequency | 50MHz |
| Operating Band 2 Frequency | 6GHz |
| Number of Operating Bands | 2 |
Key Features
- Operates across dual frequency bands from 50MHz to 6GHz for broad signal routing capabilities.
- Supports supply voltages between 1.65V and 3.4V enabling flexible power management designs.
- SPDT (Single-Pole Double-Throw) configuration allows efficient single-input switching.
- Compact footprint with a low profile height of 0.31mm suitable for slim electronic assemblies.
- Surface mount package facilitates straightforward PCB integration with minimal routing complexity.
- Functions reliably across a temperature range of -40°C to 85°C suitable for standard environmental conditions.
- Compliant with RoHS and WEEE environmental directives ensuring restricted hazardous substances and disposal standards.
- Not specified for automotive standard compliance; intended for general commercial and industrial RF use.
Product Description
Infineon BGS12P2L6E6327XTSA1 is a RF MOS Power Switch Circuit featuring a single-pole double-throw (SPDT) configuration packaged in a compact 6-pin TSLP surface-mount form factor. Operating from 1.65V up to 3.4V supply voltage, it supports wideband frequency operation from 50MHz to 6GHz, making it ideal for routing RF signals in wireless and wideband communication devices.
This component is optimized for small footprint and low profile design with a thickness of just 0.31mm and dimensions of 0.7mm length by 1.1mm width, enabling its use in slim and compact electronic assemblies.
The device excels in applications involving handheld wireless transceivers, radios, and antenna selection in compact and portable communication equipment, as well as routing RF signals between front-end modules or testbench setups within the 50 MHz to 6 GHz range.
Operating temperature range from -40°C to +85°C provides robust performance in typical environmental conditions. The BGS12P2L6E6327XTSA1 meets RoHS and WEEE compliance standards for restricted hazardous substances and environmentally responsible disposal.
While it is not qualified for automotive-grade applications, this RF switch circuit suits industrial, commercial, and IoT device communication needs, supporting versatile RF signal control with simplified PCB layout requirements due to its SPDT and 6-pin design.
Dual-band frequency operation spanning from 50MHz to 6GHz. Voltage supply flexibility from 1.65V to 3.4V. Compact 6-pin TSLP surface mount packaging. Low profile height of 0.31mm for space-saving installation. SPDT switch configuration for straightforward signal routing.
Wide operating temperature range of -40°C to 85°C. RoHS and WEEE compliant ensuring eco-friendly design. Designed for wireless, wideband RF, and IoT communication devices. Explore the comprehensive Infineon RF Switch product catalog at EnvMart for more advanced semiconductor solutions optimized for communication and wireless module integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates across a frequency range from 50MHz to 6GHz, allowing for broad signal routing capabilities.
It supports supply voltages between 1.65V and 3.4V, enabling flexible power management designs.
The device comes in a TSLP surface mount package with dimensions of 0.7mm in length, 1.1mm in width, and a height of 0.31mm.
It operates reliably within a temperature range of -40°C to +85°C, suitable for standard environmental conditions.
This unit features a Single-Pole Double-Throw (SPDT) configuration, allowing for efficient single-input switching.
Yes, it is compliant with RoHS and WEEE environmental directives, ensuring restricted hazardous substances and proper disposal standards.
This model has a total of 6 pins, facilitating its integration into various electronic assemblies.
The height of this model is 0.31mm, making it suitable for slim electronic assemblies.
The Infineon RF MOS Power Switch Circuit is manufactured in India.
It supports surface mounting, which facilitates straightforward PCB integration with minimal routing complexity.
No, this RF switch circuit is not specified for automotive standard compliance; it is intended for general commercial and industrial RF use.
