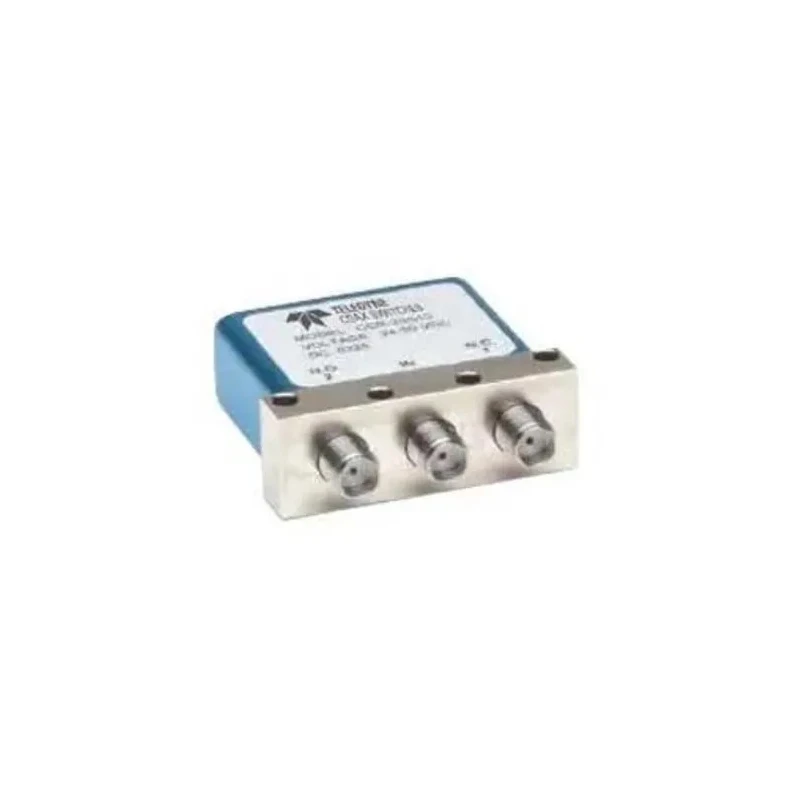

Teledyne RF Switch SMA Female Connector SPDT 18 GHz Max 60 dB Isolation 20 ms Speed 50Ω Output CCR-33S3O-N

Teledyne CCR-33S3O-N RF Switch is a precision microwave signal selector designed for switching a common input signal to either of two outputs using an SPDT contact configuration. This switch integrates an SMA female connector and supports a maximum frequency of 18 GHz, making it suitable for high-frequency industrial, laboratory, telecommunications, and aerospace applications where signal integrity and fast switching are critical.

The device offers a maximum insertion loss of 0.5 dB to maintain signal strength and a high port-to-port isolation of 60 dB to prevent cross-talk between outputs. Its switching speed of 20 ms ensures rapid signal routing, essential for dynamic RF systems.

Engineered with an output impedance of 50 Ω, the switch is compatible with standard coaxial systems. It safely handles a contact DC voltage of 12 V and contact current up to 200 mA. Operating temperature ranges from -40°C to 65°C, allowing reliable use in diverse environmental conditions.

The compact form factor with dimensions 34.04 mm length, 13.21 mm width, and 46.23 mm height provides easy integration into constrained spaces. Part of the professional CCR33 series of Teledyne solid state relays, this switch features a failsafe actuator ensuring reliable operation.

Manufactured in Taiwan, Province Of China, this RF switch adheres to stringent quality standards, though no specific certifications are listed.

This product is ideal for use in industrial automation, telecommunications test setups, laboratory instrumentation, aerospace RF routing, and other high-frequency signal switching applications. Its robust design and precision make it a preferred choice for demanding RF switching requirements.

Maximum insertion loss is 0.5 dB ensuring signal integrity. Provides 60 dB port to port isolation for excellent signal separation. Switching speed is 20 milliseconds for rapid response. Designed with 50 ohm output impedance compatible with standard RF systems.

Operates safely within -40°C to 65°C temperature range. Supports contact DC voltage of 12 V dc and contact current up to 200 mA. Compact dimensions: length 34.04 mm, width 13.21 mm, height 46.23 mm. Failsafe actuator type included in professional CCR33 series solid state relays.

Manufactured in Taiwan, Province Of China, ensuring quality control. Explore more in the Electronics & Electricals category and find quality RF Switch solutions by Teledyne at EnvMart.
