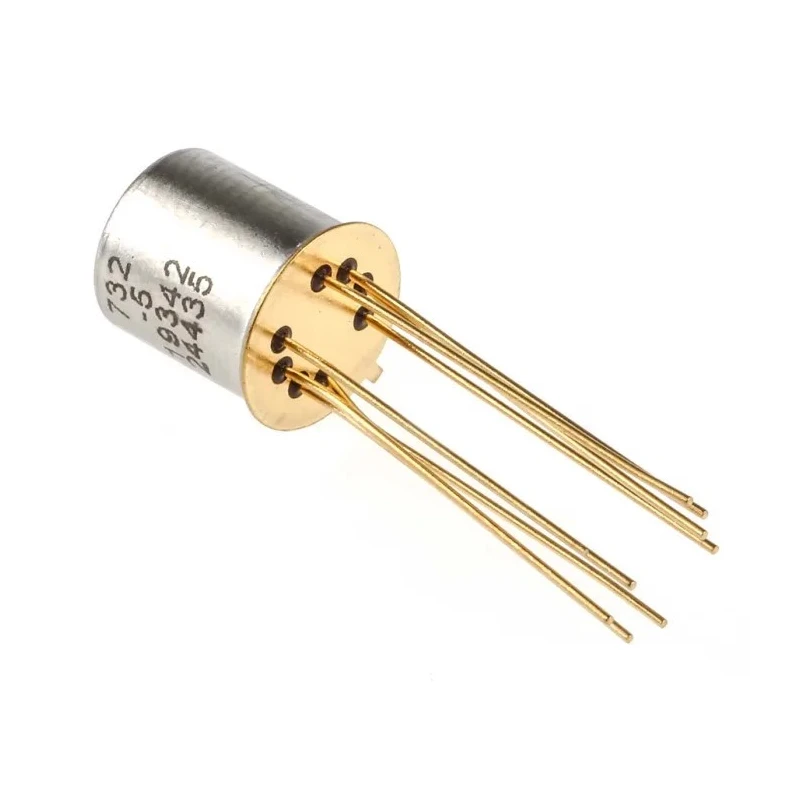

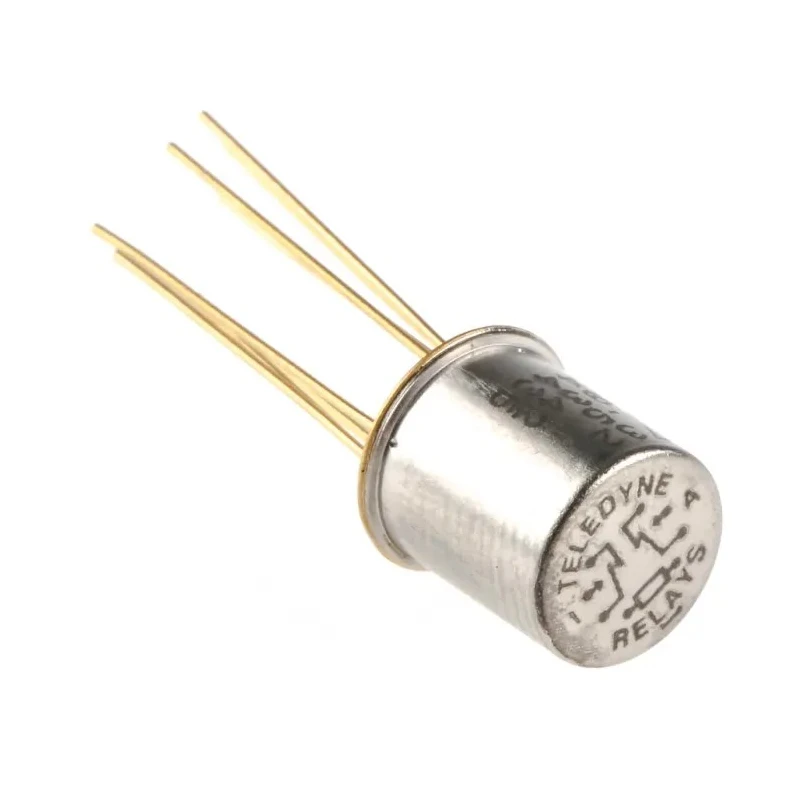

Teledyne PCB RF Relay, 5V Coil, DPDT, 100Ω Coil Resistance, 1A Contact Current, Gold Plated Contacts 732-5

Teledyne 732-5 PCB RF Relay is a hermetically sealed DPDT relay featuring a 5V coil with 100Ω coil resistance and gold plated contacts, designed specifically for RF and high-frequency applications. Its TO-5 sub-miniature package enables efficient close PCB mounting, making it an industry standard for low-level switching with currents up to 1 Amp.

This relay offers low coil power dissipation at 200mW, promoting efficient power use in compact electronic assemblies. It operates reliably over a wide temperature range from -55°C to 85°C, ensuring performance stability in harsh industrial and laboratory environments.

Its low insertion loss and minimal intercontact capacitance of 0.4pF ensure excellent signal integrity at UHF frequencies. The uni-frame construction enhances magnetic efficiency and mechanical robustness, making it highly resistant to shock and vibration. The gold plated contacts further improve durability and electrical conductivity.

Commonly employed in handheld radio transceivers for transmit/receive switching, the 732-5 relay is suited for industrial, communications, laboratory, and manufacturing applications requiring compact, reliable RF switching components.

The relay is RoHS compliant, meeting environmental standards for hazardous substances. It mounts easily on PCBs through through-hole terminals, offering reliable electrical connections and mechanical stability.

Features a TO-5 sub-miniature package suitable for close PCB spacing. Low coil power dissipation of 200mW ensures energy efficiency. Hermetically sealed design offers high resistance to shock and vibration. Gold plated contacts provide excellent conductivity and reduced wear.

Operates reliably within a temperature range of -55°C to 85°C. Low insertion loss and intercontact capacitance of 0.4pF support high-frequency applications. Uni-frame design provides high magnetic efficiency and mechanical rigidity.

Ideal for RF switching in handheld radio transceivers and other industrial applications. RoHS compliant ensuring environmental safety and regulatory conformance. Explore our Electronics & Electricals category for more relays including HF & RF types suitable for various industrial and commercial applications.
