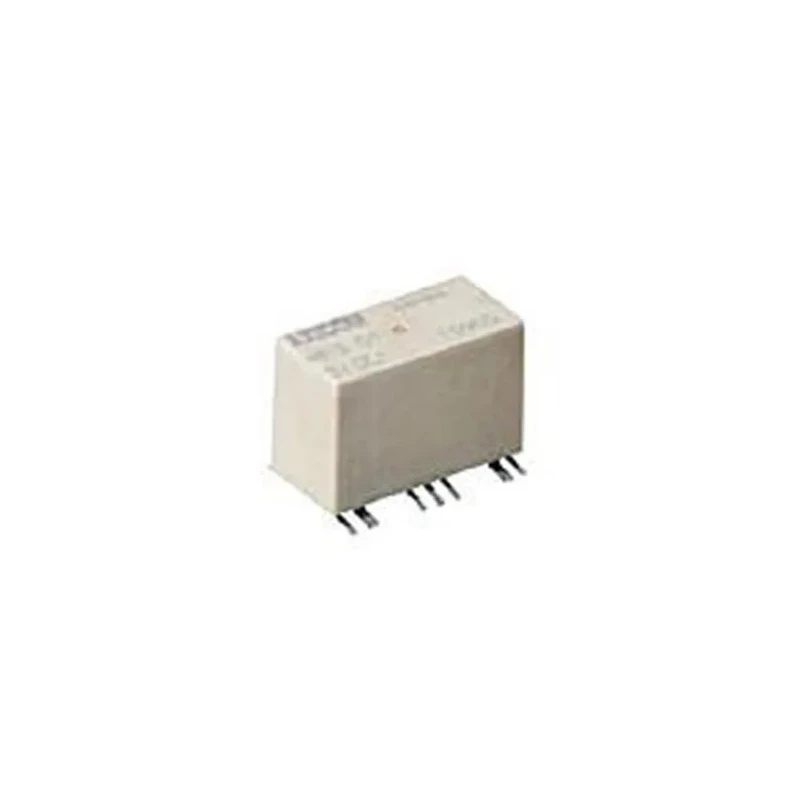

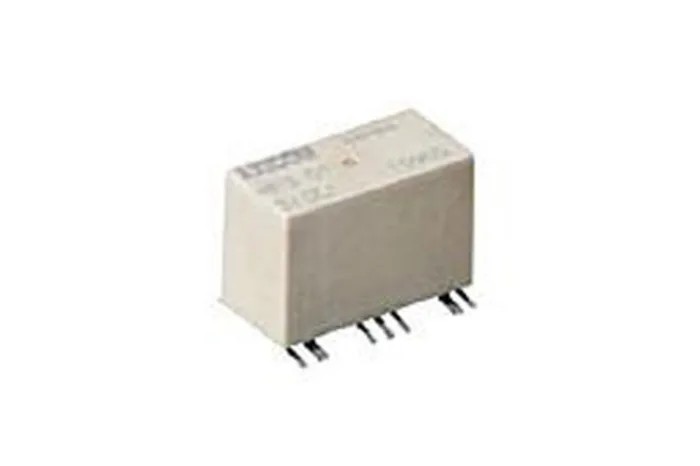

TE Connectivity PCB High Frequency Relay 3V DC Coil 3 GHz Maximum Coil Frequency SPDT 2A Contact Current 1462051-1
Specifications
| Country of Origin | India |
|---|---|
| Frequency | Relay, 3V dc Coil, 3 GHz Max |
| Brand | TE Connectivity |
| Height | 10mm |
| Length | 14.6mm |
| Mount Type | PCB |
| Isolation | 45dB |
| Contact Material | Gold |
| Maximum Operating Temperature | 85°C |
| Coil Type | Non-Latching |
| Contact Configuration | SPDT |
| Terminal type | Gull Wing |
| Contact Resistance | 100mΩ |
| Standards/Approvals | REACH, RoHS |
| Coil Resistance | 64Ω |
| Coil Power | 140mW |
| Contact Current | 2A |
| Insertion Loss | 0.35dB |
| Maximum Coil Frequency | 3GHz |
Key Features
- This relay features a single-pole double-throw (SPDT) contact configuration for versatile switching.
- It supports a contact current of 2 Amperes, suitable for various electronic applications.
- The coil resistance is 64 ohms, consuming 140mW power, ensuring efficient operation.
- Constructed with gold contact material to provide reliable conductivity and durability.
- The relay uses a non-latching coil type with a gull wing terminal for PCB mounting.
- It offers excellent isolation of 45dB and a low insertion loss of 0.35dB for signal integrity.
- Designed for maximum operating temperature up to 85°C, ensuring stability under thermal stress.
- The compact dimensions of 14.6mm length, 7.2mm width, and 10mm height enable integration in small PCB layouts.
Product Description
TE Connectivity 1462051-1 PCB High Frequency Relay is a precision engineered component designed for demanding electronic and industrial applications requiring reliable high frequency switching capabilities. With a 3V DC coil and maximum coil frequency of 3 GHz, it facilitates rapid signal switching in RF circuits and communication devices.
This high frequency relay features a single-pole double-throw (SPDT) contact configuration, allowing flexible routing of signals in electronic control systems. The relay is designed for PCB mounting with gull wing terminals, ensuring easy installation onto circuit boards. Its non-latching coil type enables monostable operation with stable switching performance.
The relay exhibits a coil resistance of 64 ohms, consuming only 140mW, which optimizes power efficiency in battery-powered and low-power systems. Gold contact materials enhance conductivity and resist corrosion, contributing to a contact resistance as low as 100 milliohms for minimal signal loss. Its insertion loss is remarkably low at 0.35dB, making it ideal for sensitive RF signal paths with minimal attenuation.
Designed for durability, this relay offers isolation of 45dB to prevent interference and has a voltage standing wave ratio (VSWR) of 1.2 at 3 GHz, which maintains waveform integrity. It can operate reliably at temperatures up to 85°C, suitable for industrial environments.
Compact in form factor with dimensions 14.6mm long, 7.2mm wide, and 10mm high, the device fits well within constrained PCB layouts, supporting miniaturization trends in modern electronics.
The relay complies with REACH and RoHS environmental regulations, ensuring eco-friendly manufacturing and safe usage.
Typical applications include industrial automation, telecommunications equipment, test measurement instruments, and high-frequency RF circuits, making it valuable across industries such as manufacturing, laboratory, and electronics production.
Set includes the single PCB high frequency relay unit with specified technical and environmental standards. Explore related HF & RF relays and other TE Connectivity components for advanced electronic design at EnvMart.
Explore more products in our HF & RF Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum coil frequency of this relay is 3 GHz, allowing for rapid signal switching in RF circuits and communication devices.
This relay features a single-pole double-throw (SPDT) contact configuration, providing versatile switching capabilities.
The coil resistance of this relay is 64 ohms, which helps optimize power efficiency.
The coil consumes 140mW of power, making it suitable for low-power applications.
This model offers an isolation level of 45dB, which helps prevent interference in signal paths.
The relay has dimensions of 14.6mm in length, 7.2mm in width, and 10mm in height, making it compact for PCB layouts.
It can operate reliably at temperatures up to 85°C, suitable for industrial environments.
This relay uses a non-latching coil type, enabling monostable operation with stable switching performance.
The relay supports a contact current of 2 Amperes, suitable for various electronic applications.
The contacts are made of gold material, which enhances conductivity and resists corrosion.
The insertion loss is remarkably low at 0.35dB, making it ideal for sensitive RF signal paths.
This relay complies with REACH and RoHS environmental regulations, ensuring eco-friendly manufacturing and safe usage.
