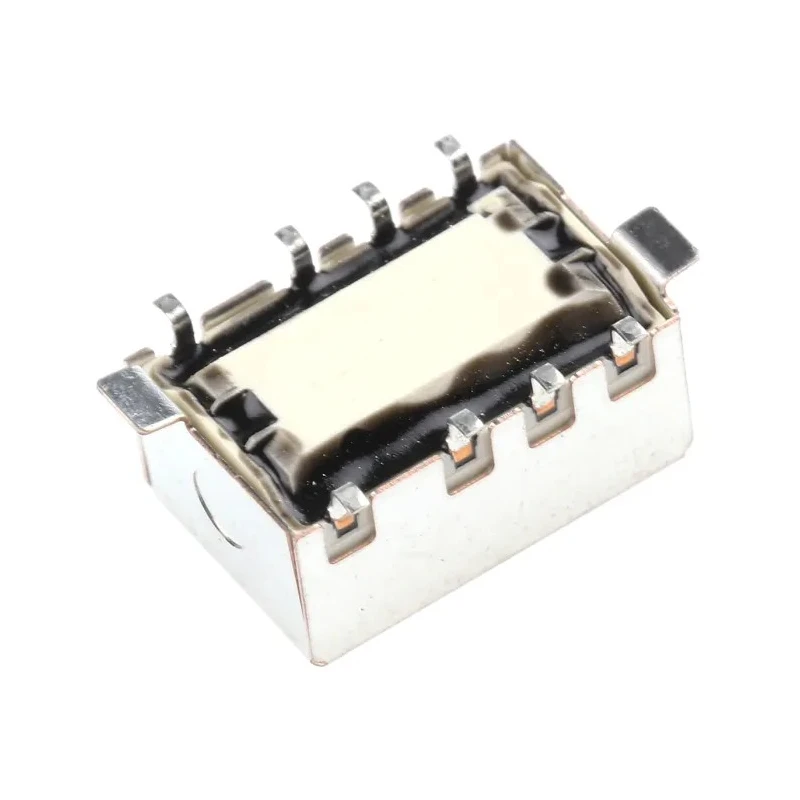

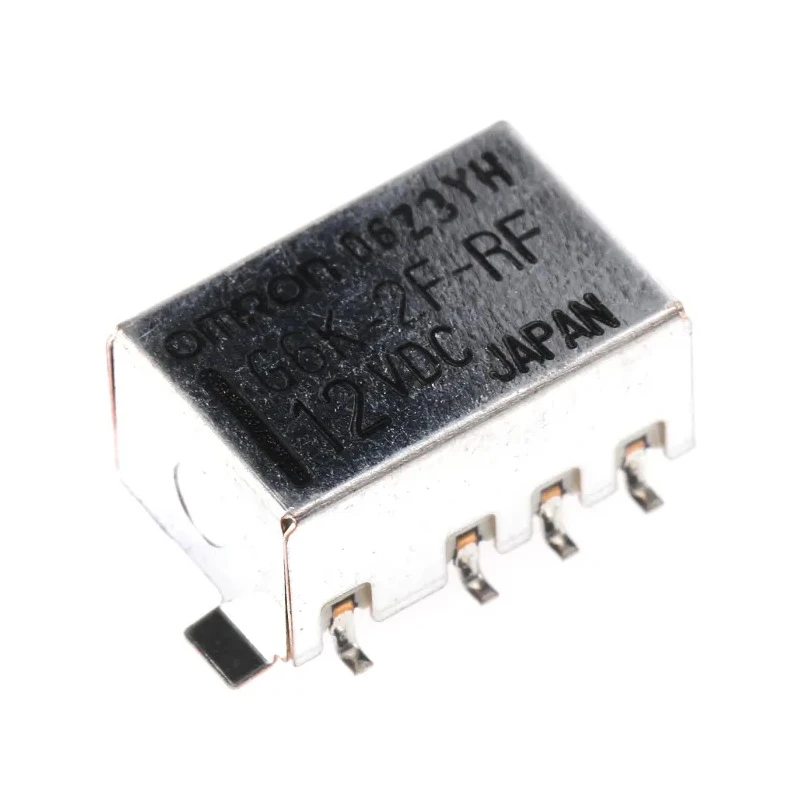

Omron Surface High Frequency Relay 12V DC Coil 100mW Power DPDT Contact Configuration, 1 GHz Max Coil G6K-2F-RF DC12

Omron G6K-2F-RF DC12 Surface High Frequency Relay is engineered for precision RF switching and signal conditioning applications requiring superior electrical performance at frequencies up to 1 GHz. Its 12V DC coil operates with low coil power consumption of 100mW, making it suitable for energy-conscious designs.

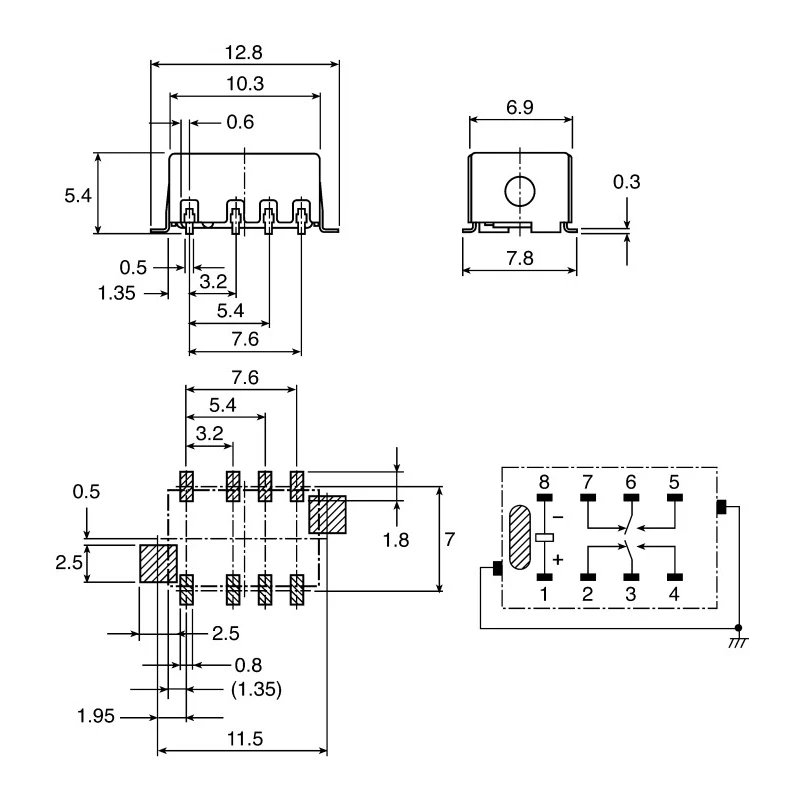

The relay features a DPDT (Double-Pole Double-Throw) contact configuration with gold contact material ensuring excellent conductivity and minimal contact resistance of 100mΩ, contributing to long service life and enhanced reliability. The unit's miniature surface mount package measures 10.3mm length by 5.4mm height, fitting compact circuit layouts.

Its superior high-frequency characteristics include maximum insertion loss of 0.2 dB and isolation of 30 dB, essential for maintaining signal integrity in high-frequency circuits. The voltage standing wave ratio (VSWR) is 1.2 at 1 GHz, minimizing signal reflection and loss.

Designed for industrial, telecommunications, and electronic instrumentation environments, this relay operates reliably from -40°C to 70°C, with a fully sealed construction that protects against dust and contaminants.

Superior high-frequency characteristics with 1 GHz maximum coil frequency. DPDT contact configuration ensures reliable dual-pole double-throw switching. Low coil power consumption of approximately 100mW for energy efficiency.

Gold contact material minimizes contact resistance and enhances durability. Compact surface mount package with dimensions 10.3mm length and 5.4mm height. Wide operating temperature range from -40°C to 70°C suits diverse environments.

Insertion loss maximally 0.2 dB preserves signal integrity in RF applications. High isolation of 30 dB reduces signal interference between contacts. Fully sealed design provides reliable performance in industrial and communications uses.

This high frequency surface relay is ideal for use in industrial automation, telecommunications equipment, laboratory instrumentation, and RF switching circuits. Omron's compliance with RoHS directives assures environmentally conscious manufacturing standards. The relay is manufactured in Japan, underscoring its quality and reliability.
